AI-SONIC S2-C6.2 ACT

S2-C6.2 ACT

6.5″ 2-Way Speaker System
4 Ohm
Without crossovers
For active systems
150W
Designed in Finland

Read More
series
169,00 €
Weight: 2.78 kg
In stock
Description
Specifications
Manuals
AI-Sonic S2 speakers—designed in Finland by AI-Group. Exceptional sound quality, sophisticated design, and carefully selected components ensure pristine audio for your vehicle.

Our goal was to develop a speaker series that delivers the highest possible quality to every user.

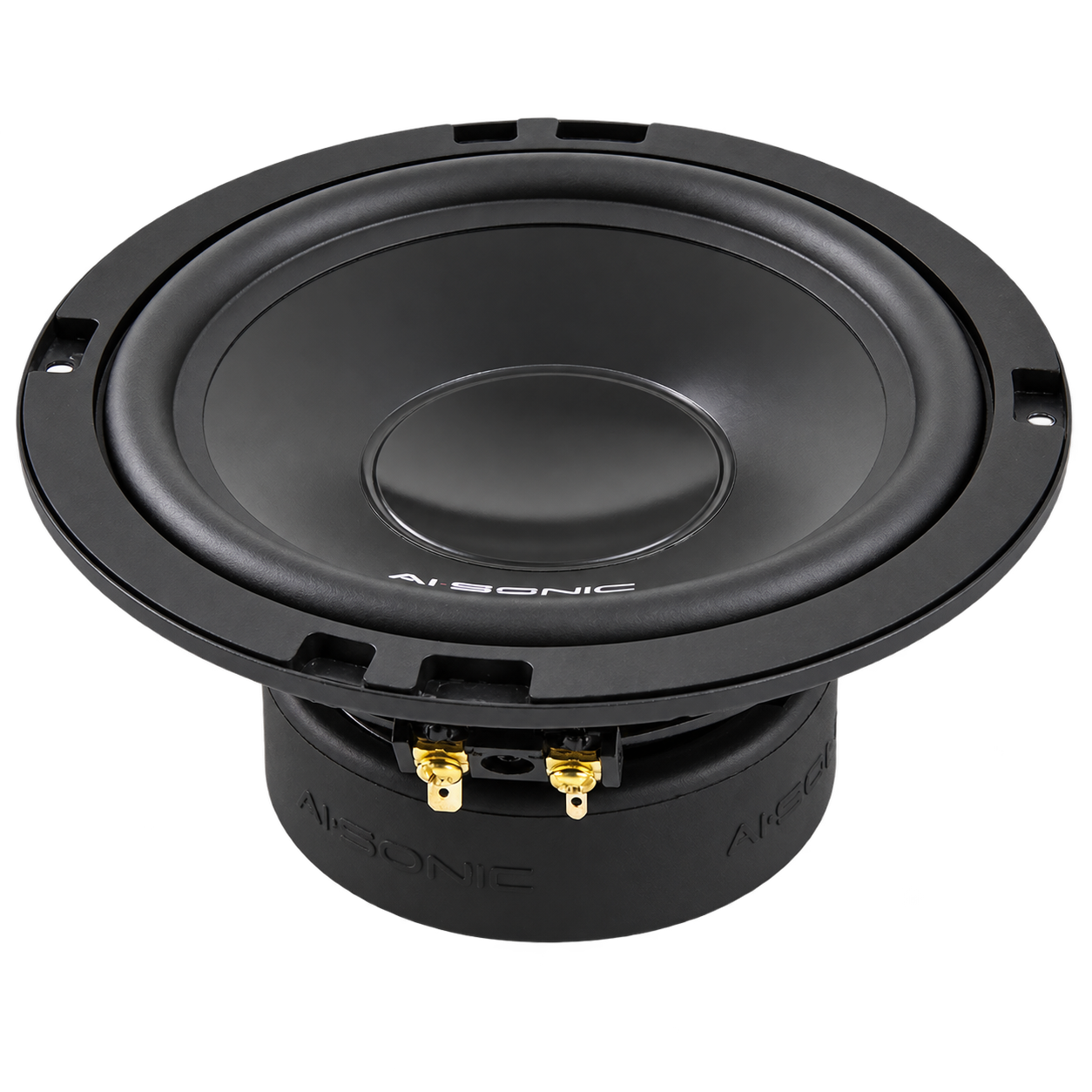

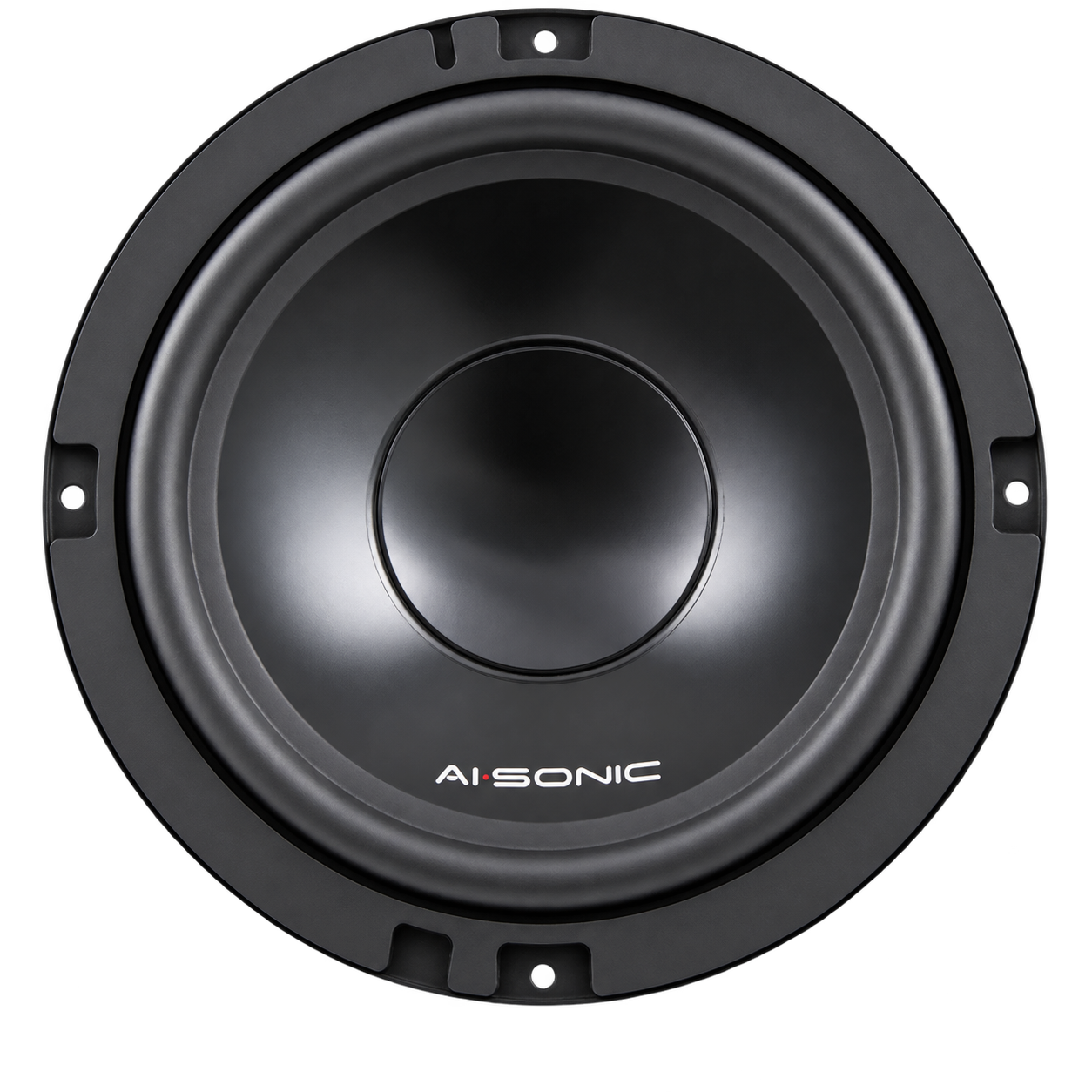

The S2-W6.2 mid-bass drivers feature a black anodized aluminum cone and a rubber surround, housed in a black stainless steel chassis. Meticulously engineered and built using high-quality components, this design ensures the best possible performance for your car. The ferrite magnet is encased in a protective rubber ring. Protective grilles for the mid-bass drivers are included in the package.

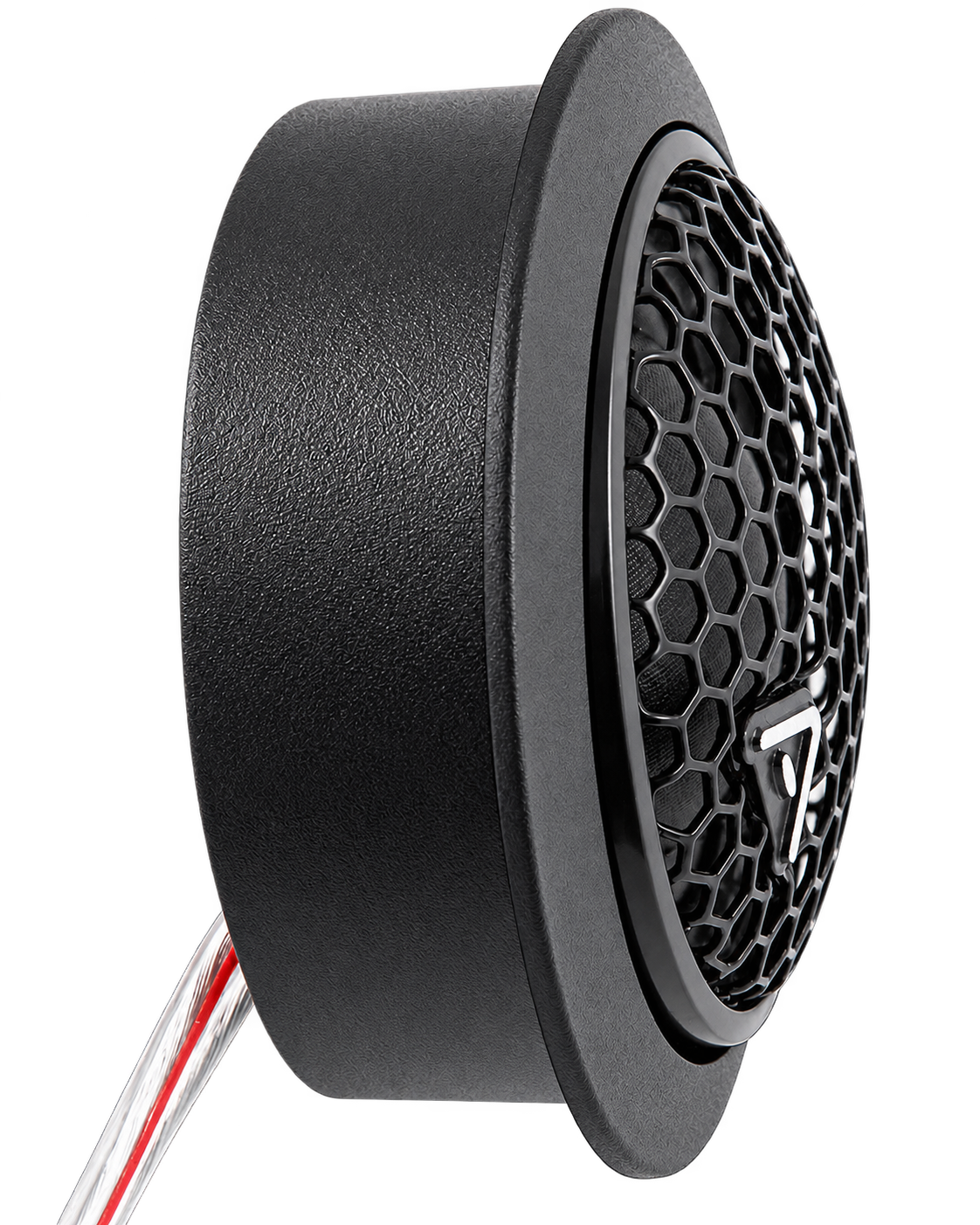

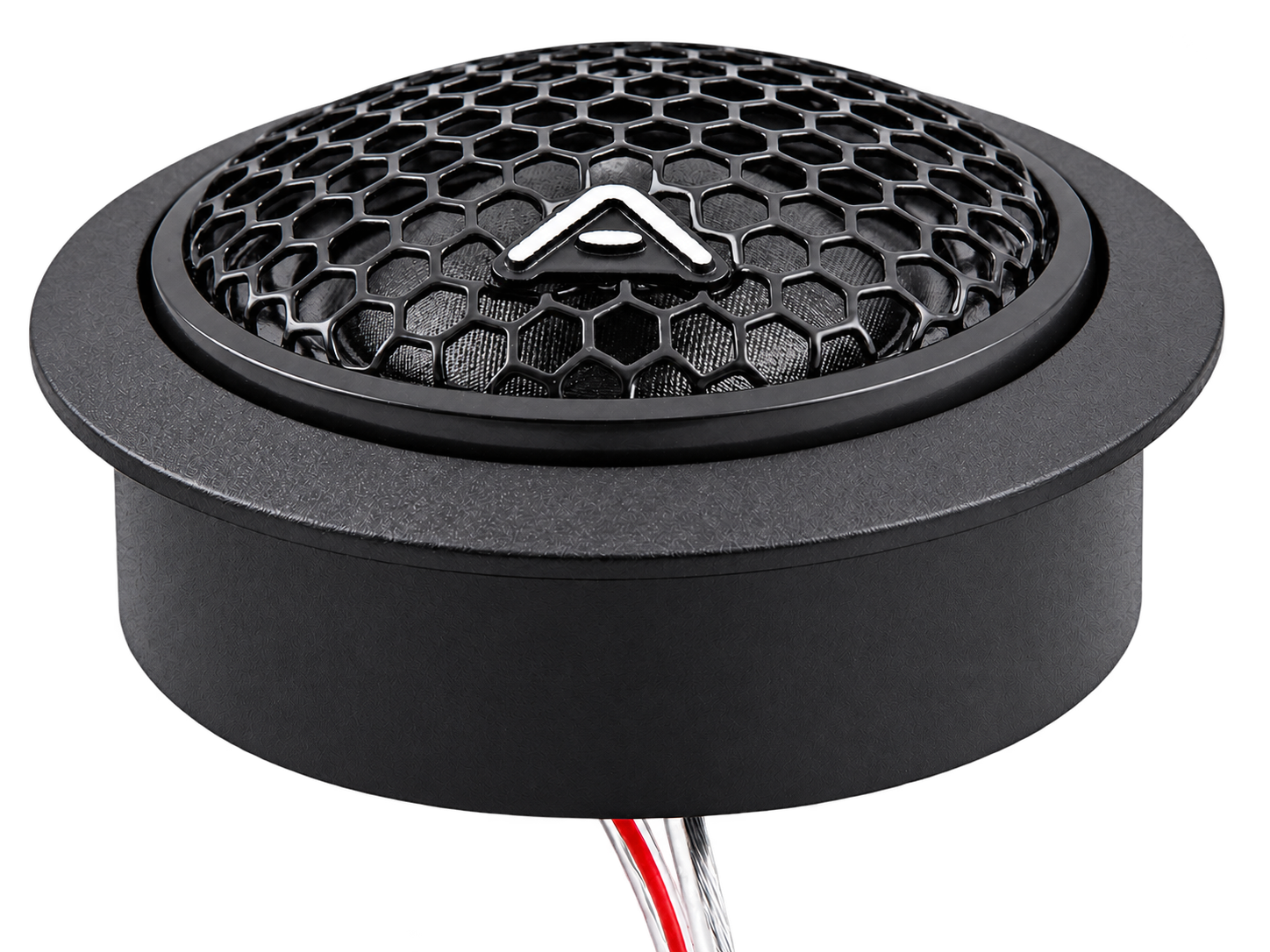

The S2-T25.2 tweeters, equipped with neodymium magnets, feature a 25mm silk dome protected by a black metal grille. The set includes mounting cups for both angled surface mounting and flush mounting. The base of the driver also features a threaded insert, allowing for secure bolt-on mounting from behind.

For the best possible sound quality, we recommend using AI-Sonic amplifiers.
S2-W6.2:

FS = 64 Hz
Efficiency (SPL) = 88 dB
Qts = 0,76
Vas = 9,75 L
Impedance = 4 Ohm
Frequency response = 40 Hz - 4,5 kHz
Power recommendation = 20-150W
Power RMS = 90W
Power Handling (RMS) = 90W
Xmax = 4.0 mm
Outer diameter: 165 mm
Mounting diameter: 141 mm
Mounting depth: 62 mm.

S2-T25.2:

FS = 1500 Hz
Efficiency (SPL) = 93 dB (1W/1m)
Qts = n/a
Vas = n/a
Impedance = 4 Ohm
Frequency response = 1.5 - 20 kHz
Power recommendation = 20-100W
Power RMS = 50W
Outer diameter: 56 mm
Mounting diameter: 49 mm
Mounting depth: 15 mm.
