AI-SONIC S3-C6.2
EAN: 6430042126330
S3-C6.2
6.5″ 2-Way Speaker System
High-quality
180W
Designed in Finland
Read More
series
399,00 €
Description
Specifications
Manuals

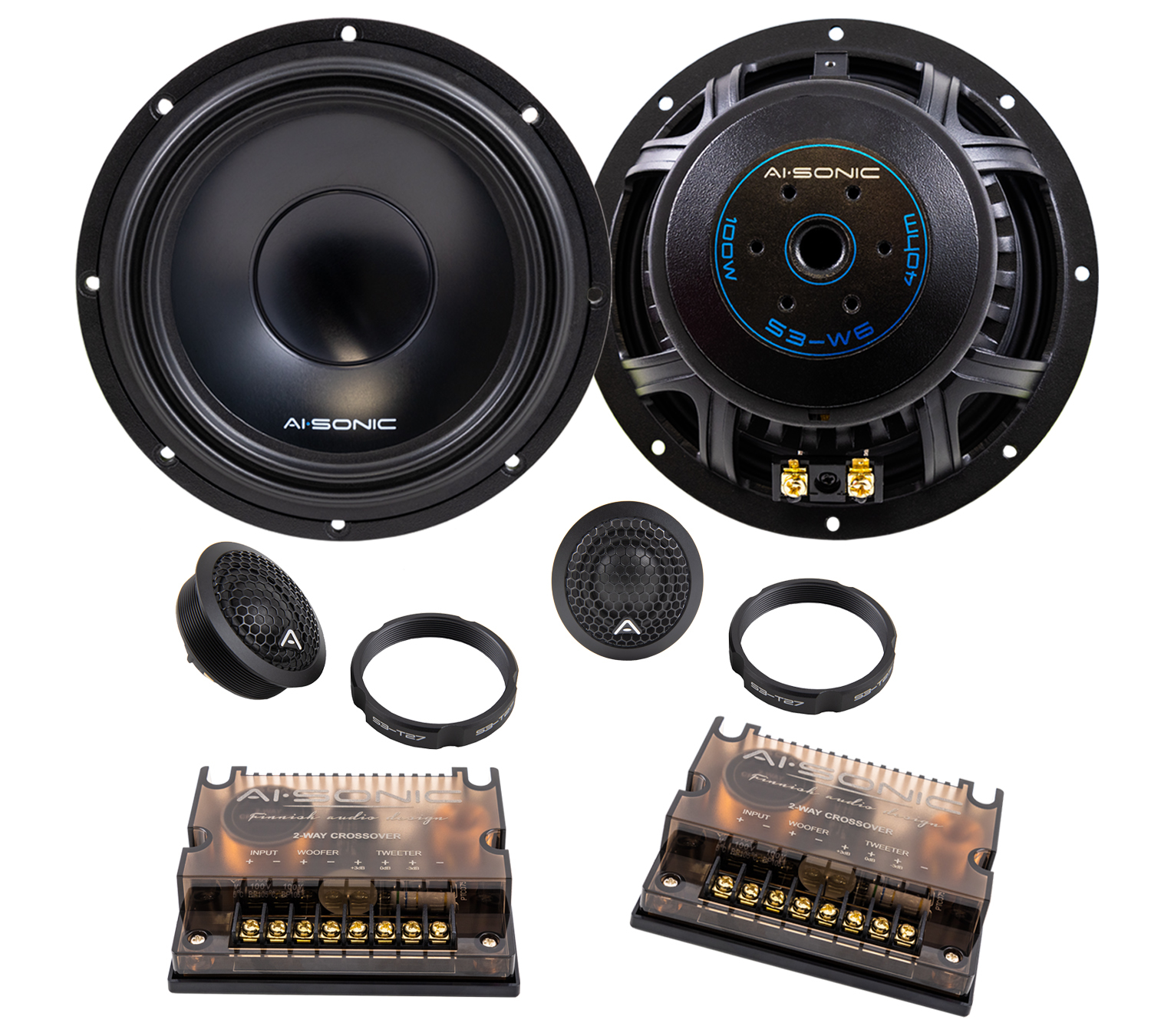

- 6.5″ 2-Way Component speaker system
- Black Aluminium Die Cast Basket
- Black Aluminium + paper composite cone (w) rubber edge
- 1.2″ ASV voice coil
- 13.2 Oz magnet structure
- 27mm silk dome deodymium tweeter

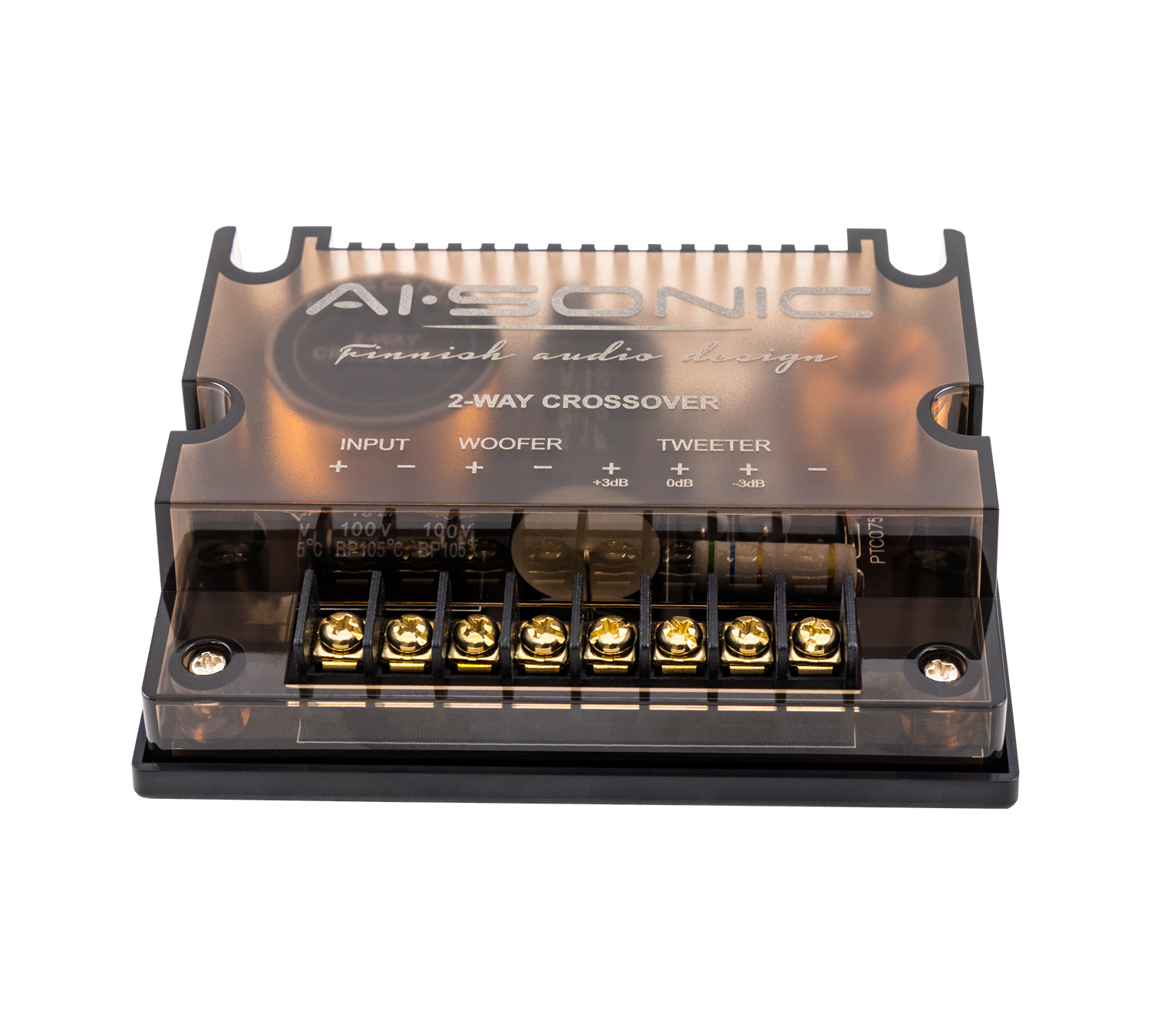

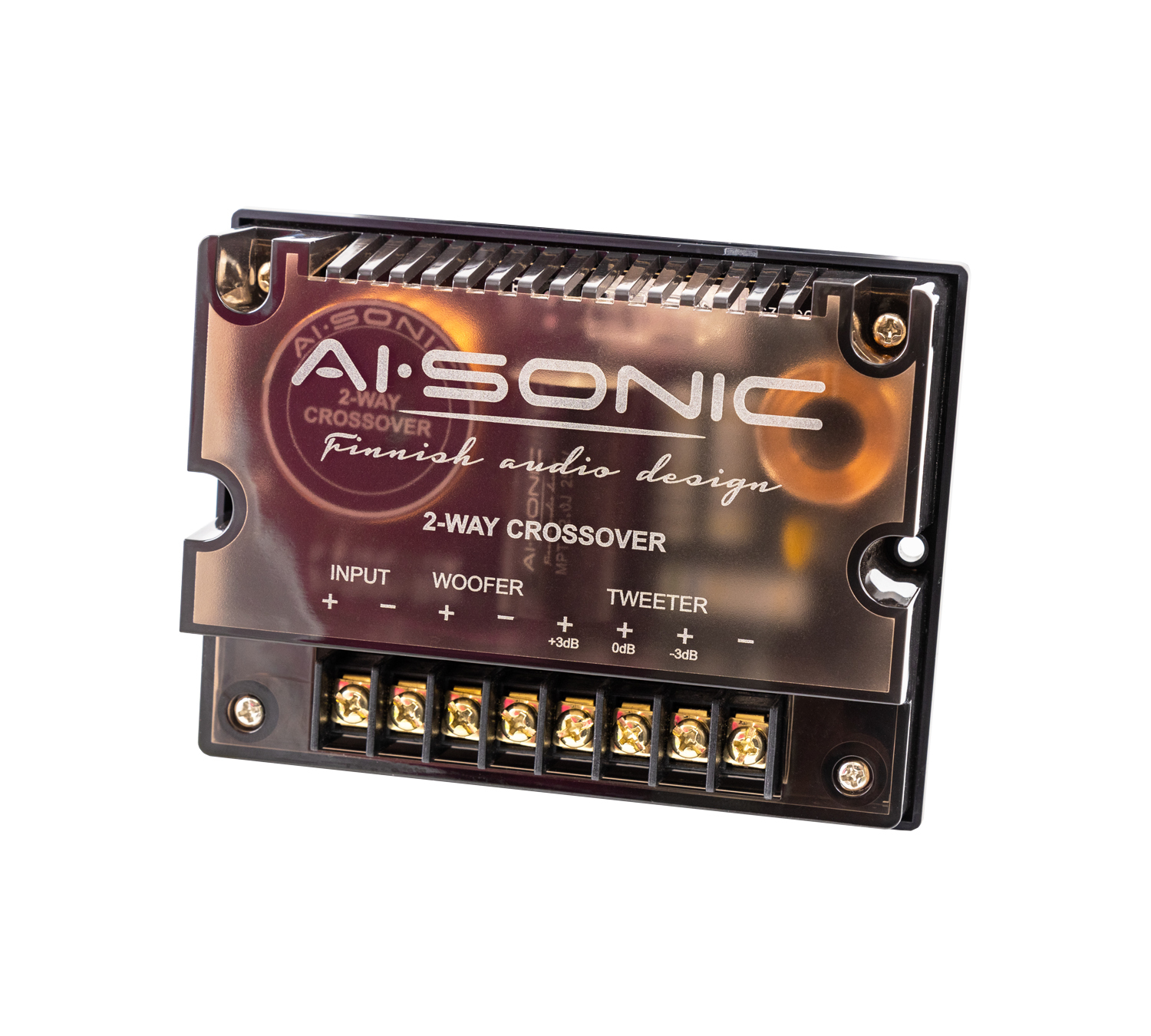

- 2-way passive crossover
- Includes grills for midwoofers

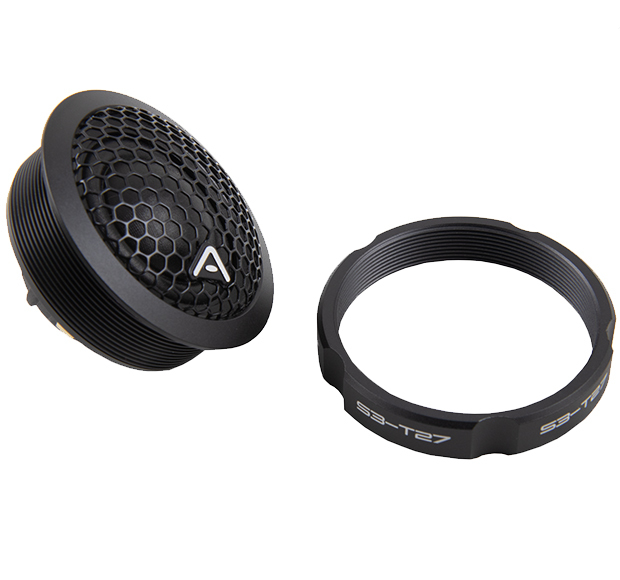

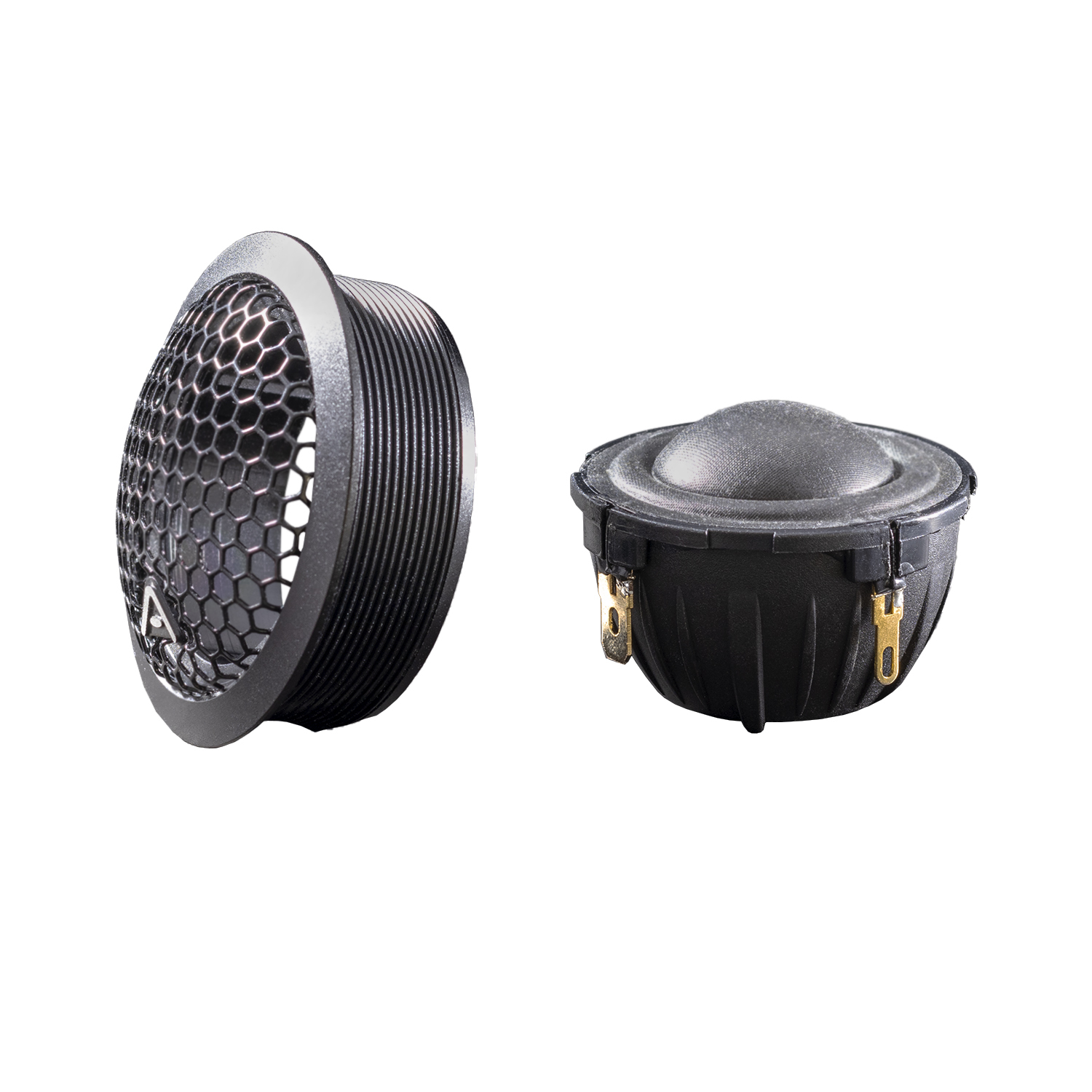

Tweeter is detachable, which making OEM installation easier. (Diameter 4.2cm | 1,65inch)
- Black Aluminium Die Cast Basket
- Black Aluminium + paper composite cone (w) rubber edge
- 1.2″ ASV voice coil
- 13.2 Oz magnet structure
- 27mm silk dome deodymium tweeter
- 2-way passive crossover
- Includes grills for midwoofers
Tweeter is detachable, which making OEM installation easier. (Diameter 4.2cm | 1,65inch)

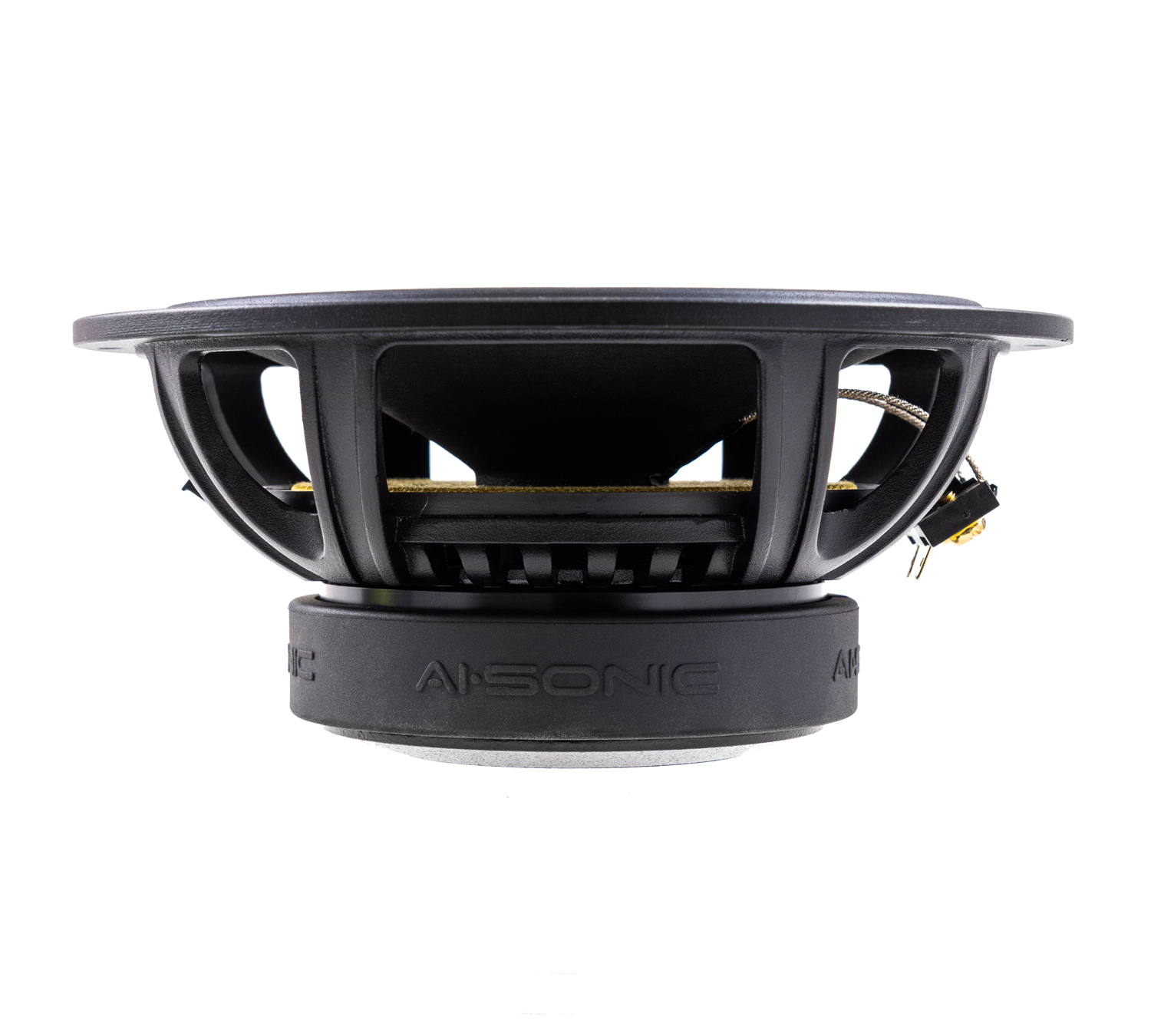

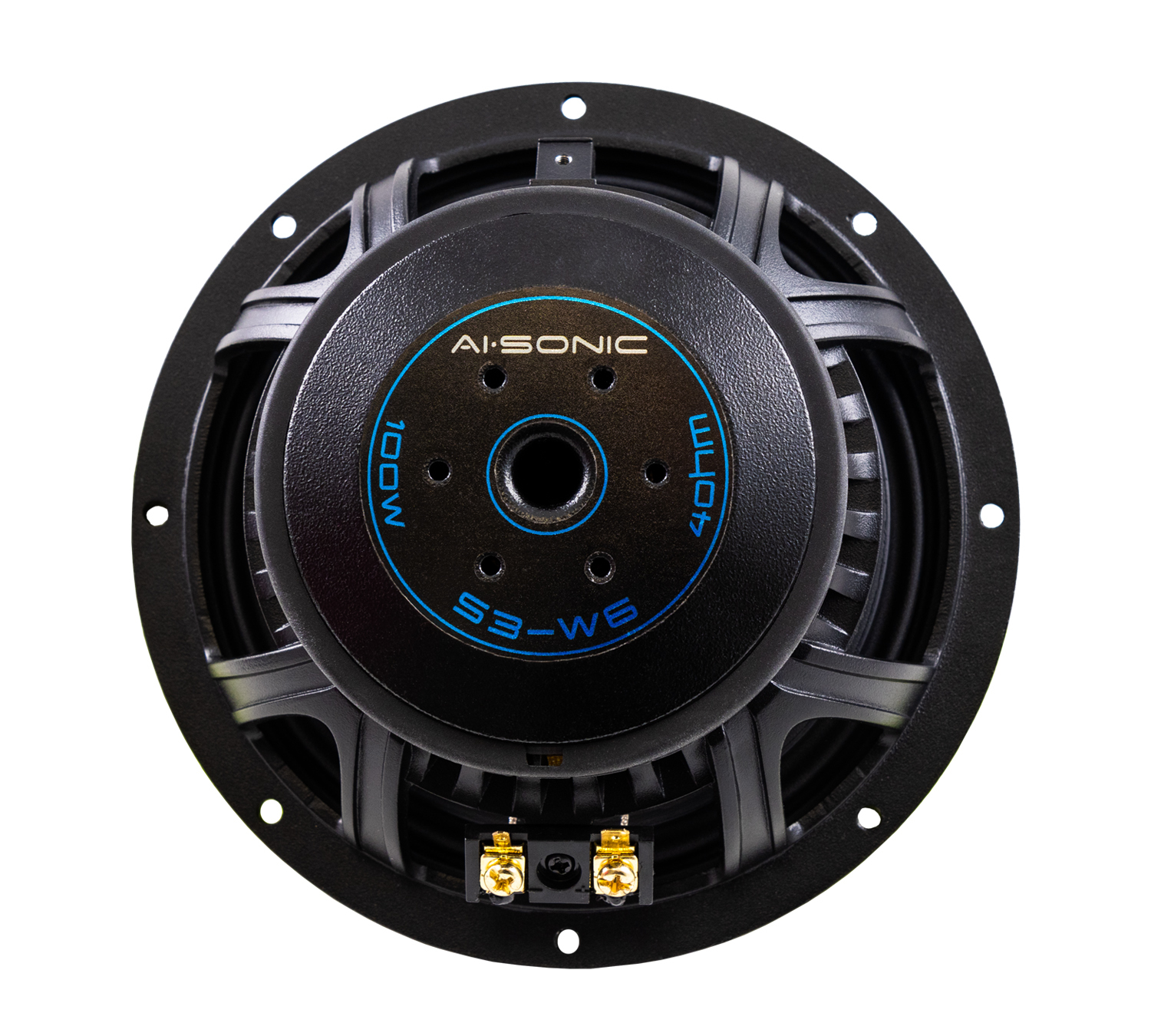

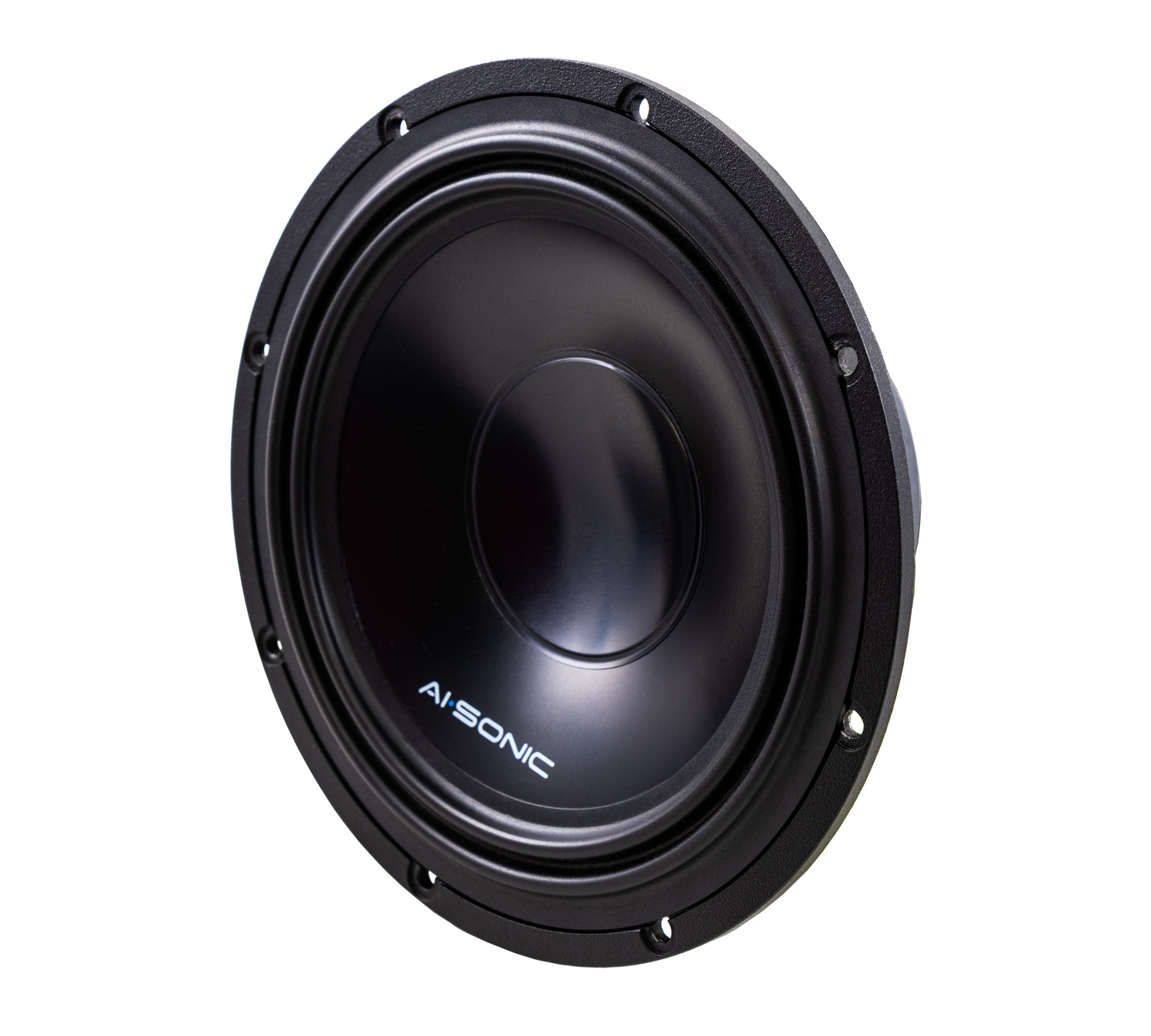

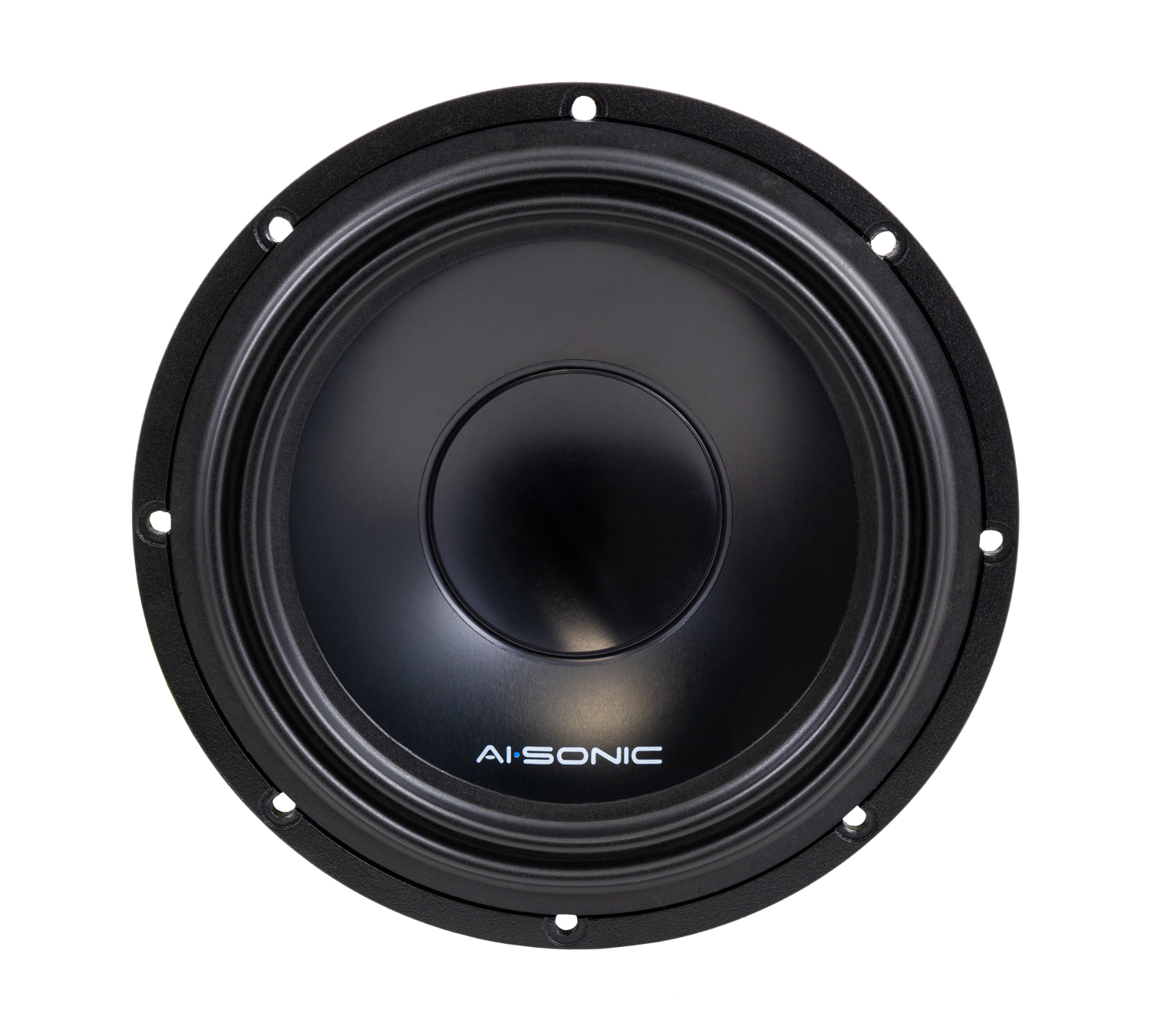

S3-W6
FS = 58 Hz
Efficiency (SPL) = 88 dB
Qts = 0,54
Vas = 11,92 L
Impedance = 4 Ohm
Frequency response = 40 Hz - 5 kHz
Power recommendation = 40-180W
Power RMS = 100W
Outer diameter: 165 mm
Mounting diameter: 145 mm
Mounting depth: 67 mm

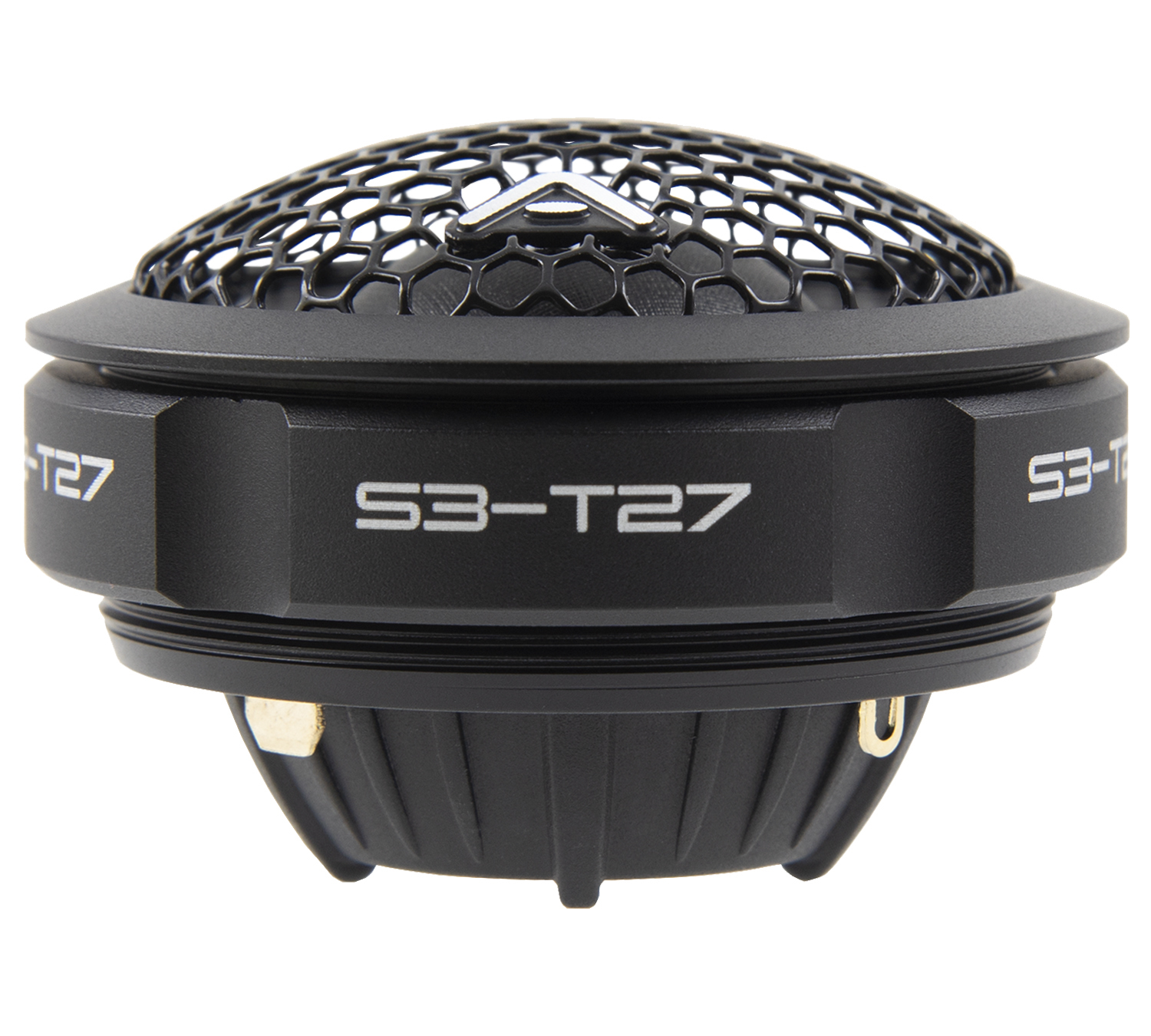

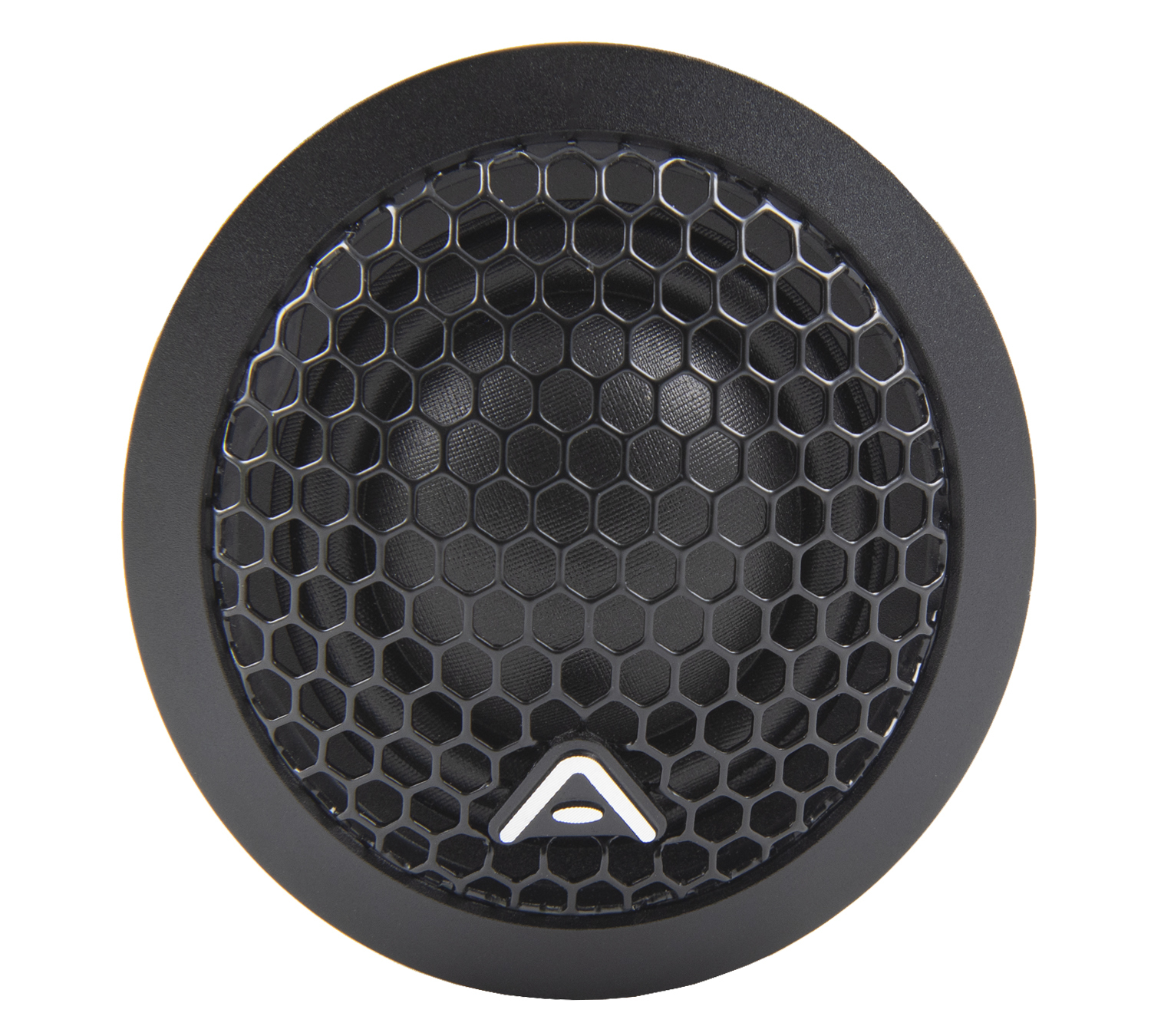

S3-T27
FS = 850 Hz
Efficiency (SPL) = 91 dB
Qts = n/a
Vas = n/a
Impedance = 4 Ohm
Frequency response = 2,5 - 25 kHz
Power recommendation = 20-120W
Power RMS = 80W
Outer diameter: 55 mm
Mounting diameter: 48 mm
Mounting depth: 26 mm.
FS = 58 Hz
Efficiency (SPL) = 88 dB
Qts = 0,54
Vas = 11,92 L
Impedance = 4 Ohm
Frequency response = 40 Hz - 5 kHz
Power recommendation = 40-180W
Power RMS = 100W
Outer diameter: 165 mm
Mounting diameter: 145 mm
Mounting depth: 67 mm
S3-T27
FS = 850 Hz
Efficiency (SPL) = 91 dB
Qts = n/a
Vas = n/a
Impedance = 4 Ohm
Frequency response = 2,5 - 25 kHz
Power recommendation = 20-120W
Power RMS = 80W
Outer diameter: 55 mm
Mounting diameter: 48 mm
Mounting depth: 26 mm.
