AMPIRE KV-SPRINTER-4G
KV-SPRINTER-4G
Reversing camera
Resolution 648x488
Mercedes-Benz Sprinter (W906, W907, W910)
Volkswagen Crafter to year 2017
Read More
189,00 €
Description
Specifications

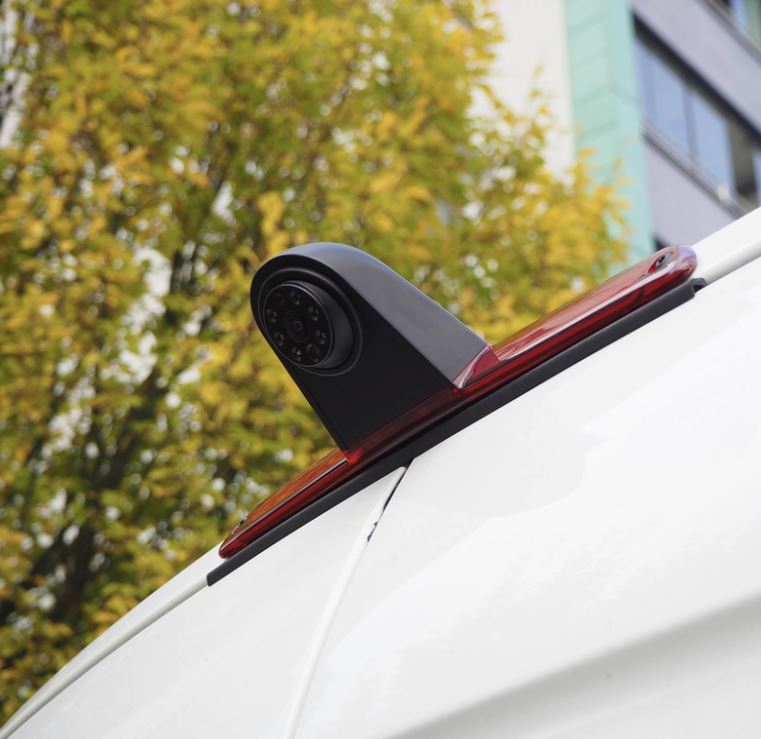

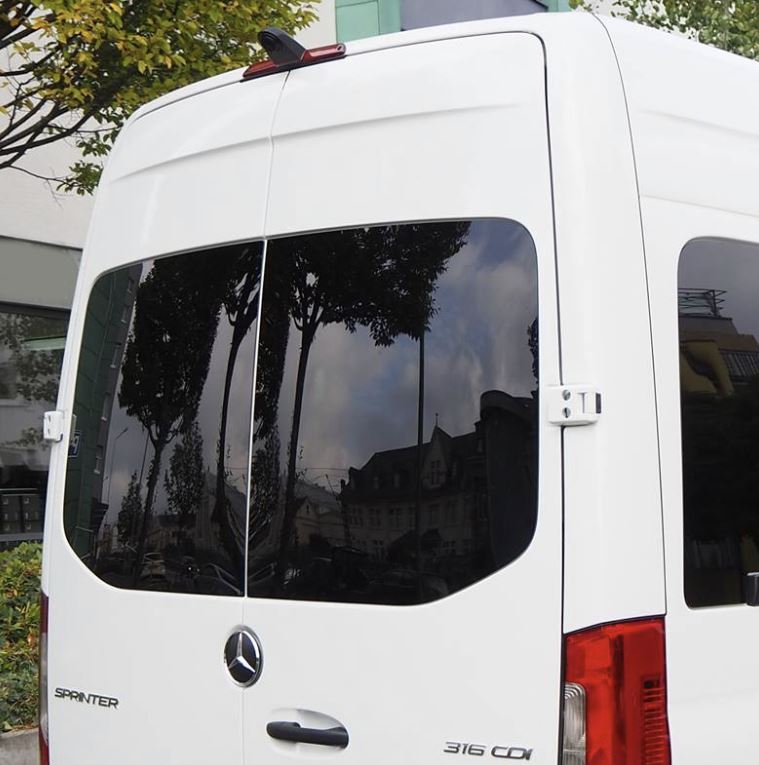

Vehicle-specific reversing camera for the Mercedes-Benz Sprinter (W906, W907, W910) or the identical Volkswagen Crafter Type 1 (until 2017). The KV-SPRINTER-4G is simply exchanged for the factory brake light glass. Infrared lighting is integrated into the camera housing, which ensures sufficient illumination even in the dark. In the second generation of this camera, an improved camera chip with a significantly higher resolution was used.
The camera is also suitable for 24/7 continuous use.
The camera is also suitable for 24/7 continuous use.
TECHNICAL SPECIFICATIONS
- Mirrored image reproduction
- Auxiliary lines: switched on at the factory (can be switched off)
- Image sensor: ″CMOS PC7070
- Resolution 648x488 pixels
- Viewing angle 170 ° diagonally
- Viewing angle 120 ° horizontally
- vertical adjustability of the camera 20 °
- Picture format: NTSC
- 580 lines of resolution
- IP68 waterproof
- Minimum lighting: 0 lux

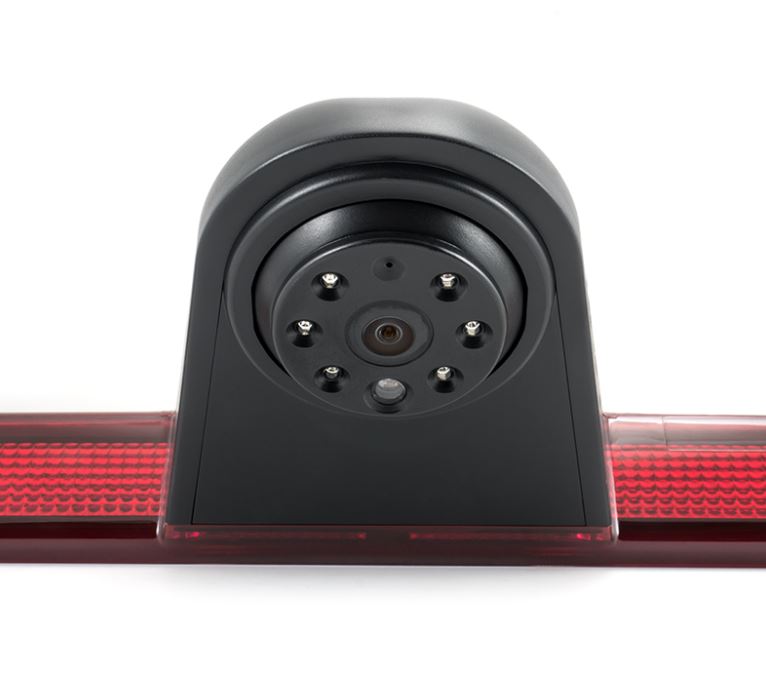

- Integrated 6 LED infrared lighting
- Operating voltage: 9-16 volts DC
- Power consumption: max. 150mA
- Operating temperature: -30 ° to 70 ° C
- Color: Black
- Cable length: 10 meters
- E approval E9-10R-05.1652
- CE approval EN 55022: 2010 EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 EN61000-3-3: 2008 EN 55024: 2010
- FCC approval ANSI C63.4-2003
IMPORTANT NOTE
Depending on the roof structure and the trailer coupling installed on the vehicle, you may not be able to see the trailer coupling on the monitor.
