ACV 42xct004-0 Steering wheel adapter Citroen/Fiat/Peugeot Multilead lose
EAN: 4026724680096
42xct004-0
Make your original steering wheel controls work with your new car stereo
Toyota Proace
Citroen C2 / C3 / C4 / C5 / C8
Fiat Scudo
Peogeot 207 / 208 / 307 / 308 / 407
Read More
1 pcs
79,00 €
Description
Specifications
Stalk Adapter Citroen / Fiat / Peugeot / Toyota
Keep the original steering wheel remote control functions when replacing the factory radio with a retrofit HU.
Depending on the vehicle equipment as well as the range of functions and software of the retrofit HU, individual operating functions may be omitted or replaced by other functions.

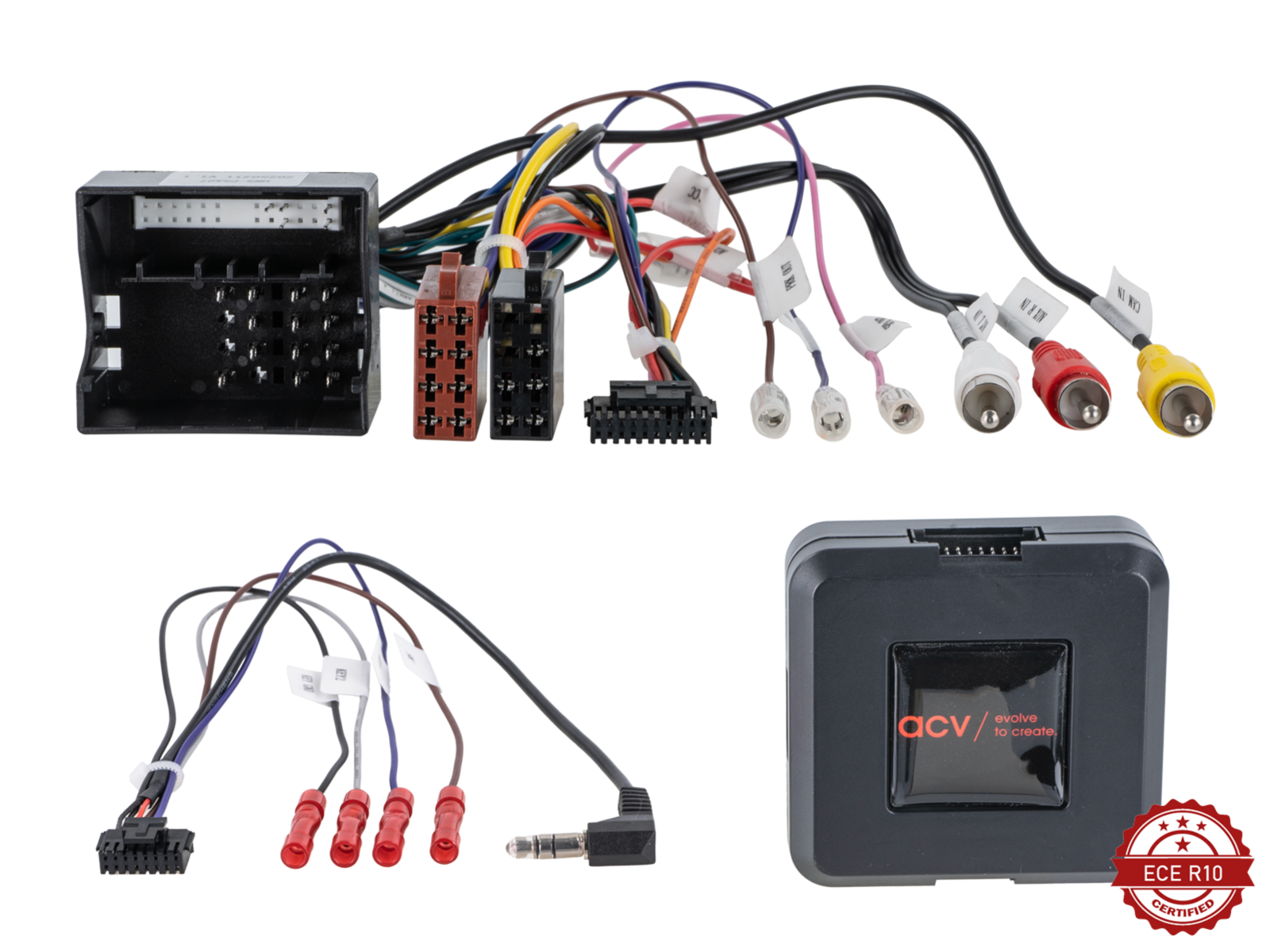

Compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.
Check if one of the listed OEM head units were installed originally.
Also check vehicle functionality, vehicle settings and SWC functionality before final assembly.
Keep the original steering wheel remote control functions when replacing the factory radio with a retrofit HU.
Depending on the vehicle equipment as well as the range of functions and software of the retrofit HU, individual operating functions may be omitted or replaced by other functions.
Compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.
Check if one of the listed OEM head units were installed originally.
Also check vehicle functionality, vehicle settings and SWC functionality before final assembly.
Note:
CAN Bus
connector: 40 Pin Quadlock Citroen / Peugeot
connector: OEM SWC 3,5mm Jack / loose wire
vehicles with open dash
vehicles with OEM HU coding
vehicles without radio coding:
vehicle coding on OEM device necessary
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Citroën
Citroën Berlingo (7) 06/2008 - 06/2018
Citroën C2 (J) 12/2004 - 12/2009
Citroën C3 (F) 10/2005 - 01/2010
Citroën C3 (S) 01/2010 - 01/2017
Citroën C4 (L) 11/2004 - 08/2010
Citroën C5 (D) 10/2004 - 04/2008
Citroën C8 (E) 2006- 06/2014
Citroën DS3 (S) 03/2010 - 07/2014
Citroen Jumpy (X) 02/2007 - 05/2016
Fiat
Fiat Scudo (ZAF 270) 02/2007 -07/2016
Peugeot
Peugeot 207 (WC) 06/2006 - 06/2009
Peugeot 207 (W) 06/2009 - 07/2015
Peugeot 208 (C) 04/2012 - 04/2015
Peugeot 307 (3/ 3 Break/ 3 SW/3 CC) 06/2005 - 03/2009
Peugeot 308 (4/4 GTI/4 SW/4 CC) 09/2007 - 07/2015
Peugeot 407 (6/6 SW/6 Coupé) 05/2004 - 07/2008
Peugeot 407 (6/6 SW/6 Coupé) 02/2006 - 03/2011
Peugeot 807 (E) 07/2002 - 02/2008
Peugeot 807 (E) 02/2008 - 06/2014
Peugeot 3008 (oU) 06/2009 - 10/2013
Peugeot 5008 Van (O) 10/2009 - 10/2013
Peugeot Bipper (A) 12/2007 - 12/2015
Peugeot Expert (X) 02/2007 - 08/2016
Peugeot Partner (7) 05/2008 - 03/2012
Peugeot RCZ (4J) 04/2010 - 09/2015
Toyota
Toyota Proace 03/2013 - 08/2016
CAN Bus
connector: 40 Pin Quadlock Citroen / Peugeot
connector: OEM SWC 3,5mm Jack / loose wire
vehicles with open dash
vehicles with OEM HU coding
vehicles without radio coding:
vehicle coding on OEM device necessary
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Citroën
Citroën Berlingo (7) 06/2008 - 06/2018
Citroën C2 (J) 12/2004 - 12/2009
Citroën C3 (F) 10/2005 - 01/2010
Citroën C3 (S) 01/2010 - 01/2017
Citroën C4 (L) 11/2004 - 08/2010
Citroën C5 (D) 10/2004 - 04/2008
Citroën C8 (E) 2006- 06/2014
Citroën DS3 (S) 03/2010 - 07/2014
Citroen Jumpy (X) 02/2007 - 05/2016
Fiat
Fiat Scudo (ZAF 270) 02/2007 -07/2016
Peugeot
Peugeot 207 (WC) 06/2006 - 06/2009
Peugeot 207 (W) 06/2009 - 07/2015
Peugeot 208 (C) 04/2012 - 04/2015
Peugeot 307 (3/ 3 Break/ 3 SW/3 CC) 06/2005 - 03/2009
Peugeot 308 (4/4 GTI/4 SW/4 CC) 09/2007 - 07/2015
Peugeot 407 (6/6 SW/6 Coupé) 05/2004 - 07/2008
Peugeot 407 (6/6 SW/6 Coupé) 02/2006 - 03/2011
Peugeot 807 (E) 07/2002 - 02/2008
Peugeot 807 (E) 02/2008 - 06/2014
Peugeot 3008 (oU) 06/2009 - 10/2013
Peugeot 5008 Van (O) 10/2009 - 10/2013
Peugeot Bipper (A) 12/2007 - 12/2015
Peugeot Expert (X) 02/2007 - 08/2016
Peugeot Partner (7) 05/2008 - 03/2012
Peugeot RCZ (4J) 04/2010 - 09/2015
Toyota
Toyota Proace 03/2013 - 08/2016
