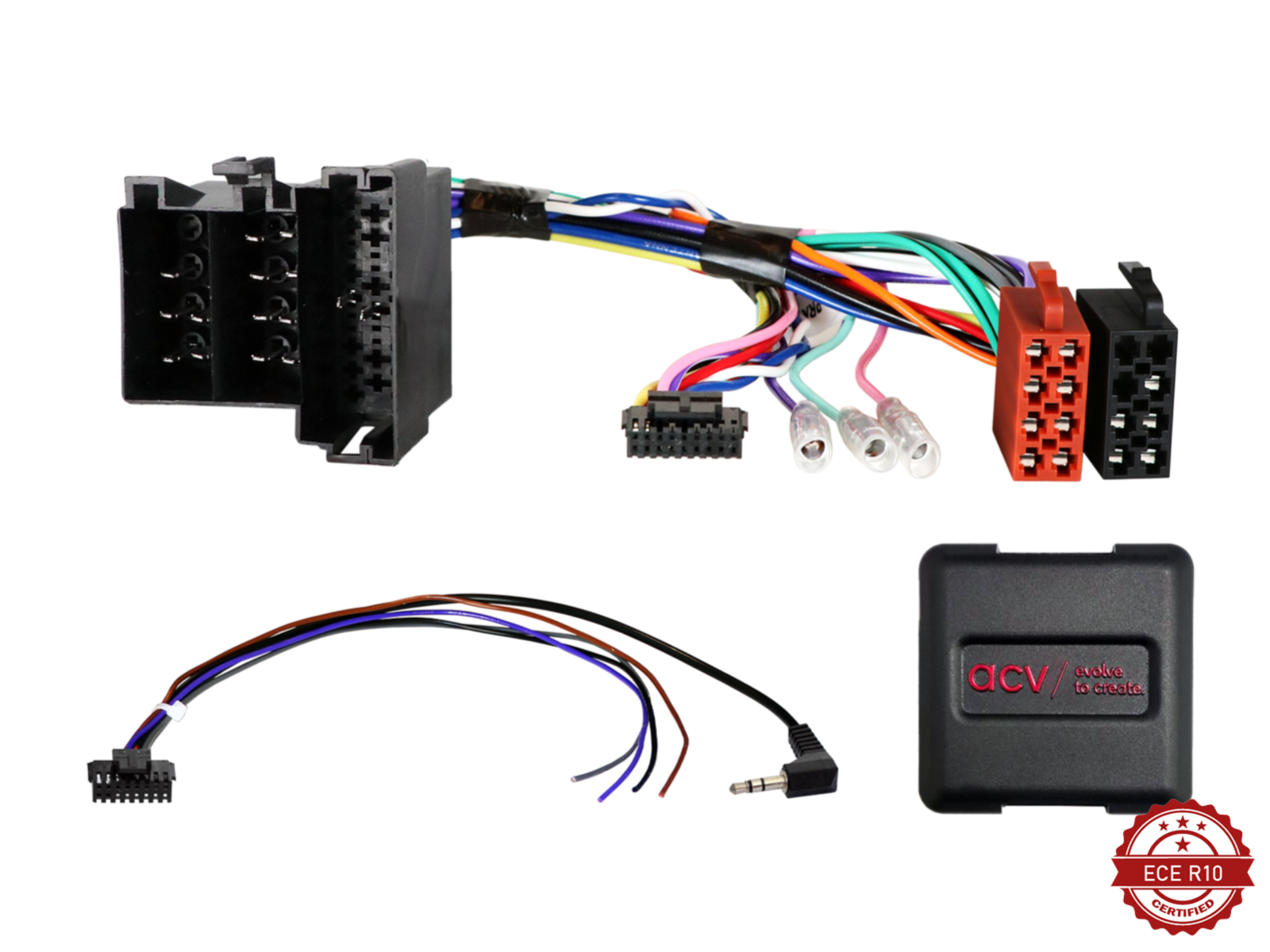

ACV 42xct005-0 Steering wheel adapter Alfa Romeo/Citroen/Fiat ISO/Mini ISO Multilead lose
EAN: 4026724680621
42xct005-0
Make your original steering wheel controls work with your new car stereo
Alfa Romeo 147 / GT
Citroen Jumper / Relay
Fiat Ducato
Peogeot Boxer
Read More
1 pcs
79,00 €
Description
Specifications
Stalk Adapter Alfa Romeo / Citroen / Fiat / Peugeot
Keep the original steering wheel remote control functions when replacing the factory radio with a retrofit HU.
Depending on the vehicle equipment as well as the range of functions and software of the retrofit HU, individual operating functions may be omitted or replaced by other functions.
Compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.
Also check if one of the listed OEM head units were installed originally.
Check vehicle functionality, vehicle settings and SWC functionality before final assembly.
Keep the original steering wheel remote control functions when replacing the factory radio with a retrofit HU.
Depending on the vehicle equipment as well as the range of functions and software of the retrofit HU, individual operating functions may be omitted or replaced by other functions.
Compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.
Also check if one of the listed OEM head units were installed originally.
Check vehicle functionality, vehicle settings and SWC functionality before final assembly.
Note:
analog SWC
CAN Bus
connector: ISO / Mini ISO
connector: OEM SWC 3,5mm Jack / loose wire
vehicles with CAN Bus ISO power connector
vehicles with analog SWC RC-A/GND/RC-B Mini-ISO plug Pin 10/11/12
vehicles with Blue&Me module must remain installed
vehicles without +12V ignition clamp 15
vehicles Alfa Romeo with BOSE OEM amplified system:
+12V Amp amplified systen remote connector C1 Pin 6
Active system adapter Alfa Romeo/Lancia ISOISO item: 13-1001-50
Active system adapter different vehicles ISOISO item: 13-1190-50
vehicles Citroen / Fiat / Peugeot:
vehicles with 6 SWC buttons / functions
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Alfa Romeo
Alfa Romeo 147 (973) 09/2007 - 04/2010
Alfa Romeo GT (937) 02/2004 - 10/2010
Citroen
Citroen Jumper (250) 10/2006 - 11/2011
Citroen Relay (250) 2006 - 2011*
Fiat
Fiat Ducato (ZAF 250) 06/2006 - 06/2011**
Peugeot
Peugeot Boxer (Y) 02/2007 - 07/2011**
*vehicles with open dash
**vehicles with OEM HU
analog SWC
CAN Bus
connector: ISO / Mini ISO
connector: OEM SWC 3,5mm Jack / loose wire
vehicles with CAN Bus ISO power connector
vehicles with analog SWC RC-A/GND/RC-B Mini-ISO plug Pin 10/11/12
vehicles with Blue&Me module must remain installed
vehicles without +12V ignition clamp 15
vehicles Alfa Romeo with BOSE OEM amplified system:
+12V Amp amplified systen remote connector C1 Pin 6
Active system adapter Alfa Romeo/Lancia ISOISO item: 13-1001-50
Active system adapter different vehicles ISOISO item: 13-1190-50
vehicles Citroen / Fiat / Peugeot:
vehicles with 6 SWC buttons / functions
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Alfa Romeo
Alfa Romeo 147 (973) 09/2007 - 04/2010
Alfa Romeo GT (937) 02/2004 - 10/2010
Citroen
Citroen Jumper (250) 10/2006 - 11/2011
Citroen Relay (250) 2006 - 2011*
Fiat
Fiat Ducato (ZAF 250) 06/2006 - 06/2011**
Peugeot
Peugeot Boxer (Y) 02/2007 - 07/2011**
*vehicles with open dash
**vehicles with OEM HU
