ACV 42xct006-0 Steering wheel adapter Citroen/Fiat/Peugeot 2006-2014 ISO Multilead lose
EAN: 4026724680713
42xct006-0
Make your original steering wheel controls work with your new car stereo
Citroën Jumper / Relay
Fiat Ducato
Peugeot Boxer
Read More
1 pcs
79,00 €
Description
Specifications
Stalk Adapter Citroen / Fiat / Peugeot
Keep the original steering wheel remote control functions when replacing the factory radio with a retrofit HU.
Depending on the vehicle equipment as well as the range of functions and software of the retrofit HU, individual operating functions may be omitted or replaced by other functions.

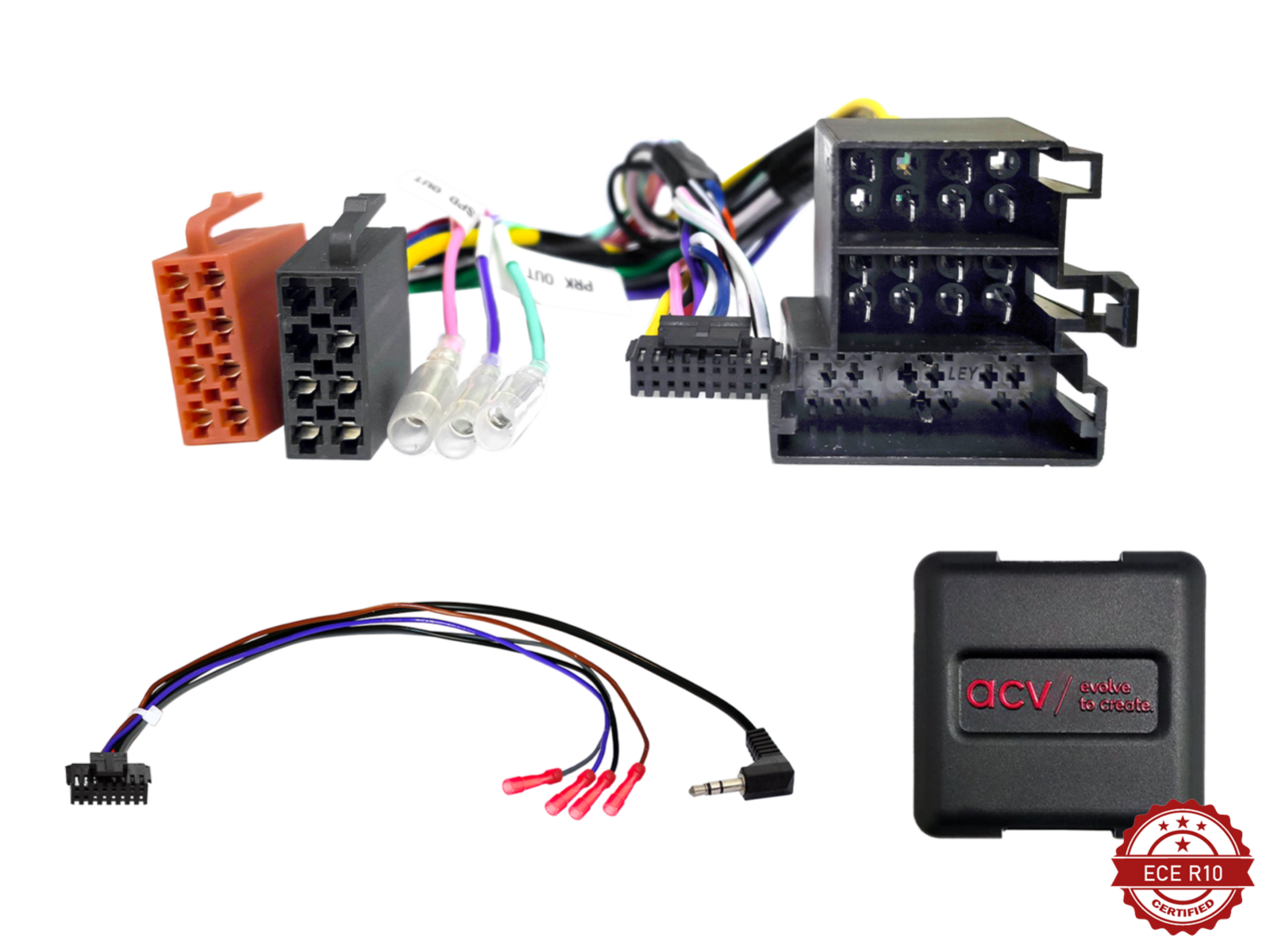

Compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.
Check if one of the listed OEM head units were installed originally.
Also check vehicle functionality, vehicle settings and SWC functionality before final assembly.
Keep the original steering wheel remote control functions when replacing the factory radio with a retrofit HU.
Depending on the vehicle equipment as well as the range of functions and software of the retrofit HU, individual operating functions may be omitted or replaced by other functions.
Compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.
Check if one of the listed OEM head units were installed originally.
Also check vehicle functionality, vehicle settings and SWC functionality before final assembly.
Note:
analog SWC
CAN Bus
connector: ISO / Mini ISO
connector: OEM SWC 3,5mm Jack / loose wire
vehicles with OEM HU
vehicles with 8 SWC buttons / functions
vehicles with CAN Bus and analog SWC in Mini ISO connector C2 Pin 10/11/12
vehicles with Blue&Me Blue&Me module must remain installed
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Citroen
Citroen Jumper (250) 10/2006 - 11/2011
Citroen Jumper (250) 11/2011 - 05/2014*
Citoren Relay (250) 2006 - 2011
Citoren Relay (250) 2011 - 2014*
Fiat
Fiat Ducato (ZAF 250) 06/2006 - 06/2011
Fiat Ducato (ZAF 250) 06/2011 - 05/2014*
Peugeot
Peugeot Boxer (Y) 02/2007 - 07/2011
Peugeot Boxer (Y) 07/2011 - 05/2014*
analog SWC
CAN Bus
connector: ISO / Mini ISO
connector: OEM SWC 3,5mm Jack / loose wire
vehicles with OEM HU
vehicles with 8 SWC buttons / functions
vehicles with CAN Bus and analog SWC in Mini ISO connector C2 Pin 10/11/12
vehicles with Blue&Me Blue&Me module must remain installed
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Citroen
Citroen Jumper (250) 10/2006 - 11/2011
Citroen Jumper (250) 11/2011 - 05/2014*
Citoren Relay (250) 2006 - 2011
Citoren Relay (250) 2011 - 2014*
Fiat
Fiat Ducato (ZAF 250) 06/2006 - 06/2011
Fiat Ducato (ZAF 250) 06/2011 - 05/2014*
Peugeot
Peugeot Boxer (Y) 02/2007 - 07/2011
Peugeot Boxer (Y) 07/2011 - 05/2014*
