ACV 42xct009-0 Steering wheel adapter Fiat/Citroen/Fiat/Opel/Peugeot 52Pin Multilead lose
EAN: 4026724680751
42xct009-0
Make your original steering wheel controls work with your new car stereo
Alfa romeo Giuletta / MiTo
Citroen Jumper / e-Jumper
Dodge Dart / RAM
Fiat 500 / Doblo / Ducato
Opel Movano
Peogeot Boxer
Read More
1 pcs
79,00 €
Description
Specifications
Stalk Adapter Alfa Romeo / Citroen / Dodge / Fiat / Opel / Peugeot
Keep the original steering wheel remote control functions when replacing the factory radio with a retrofit HU.
Depending on the vehicle equipment as well as the range of functions and software of the retrofit HU, individual operating functions may be omitted or replaced by other functions.

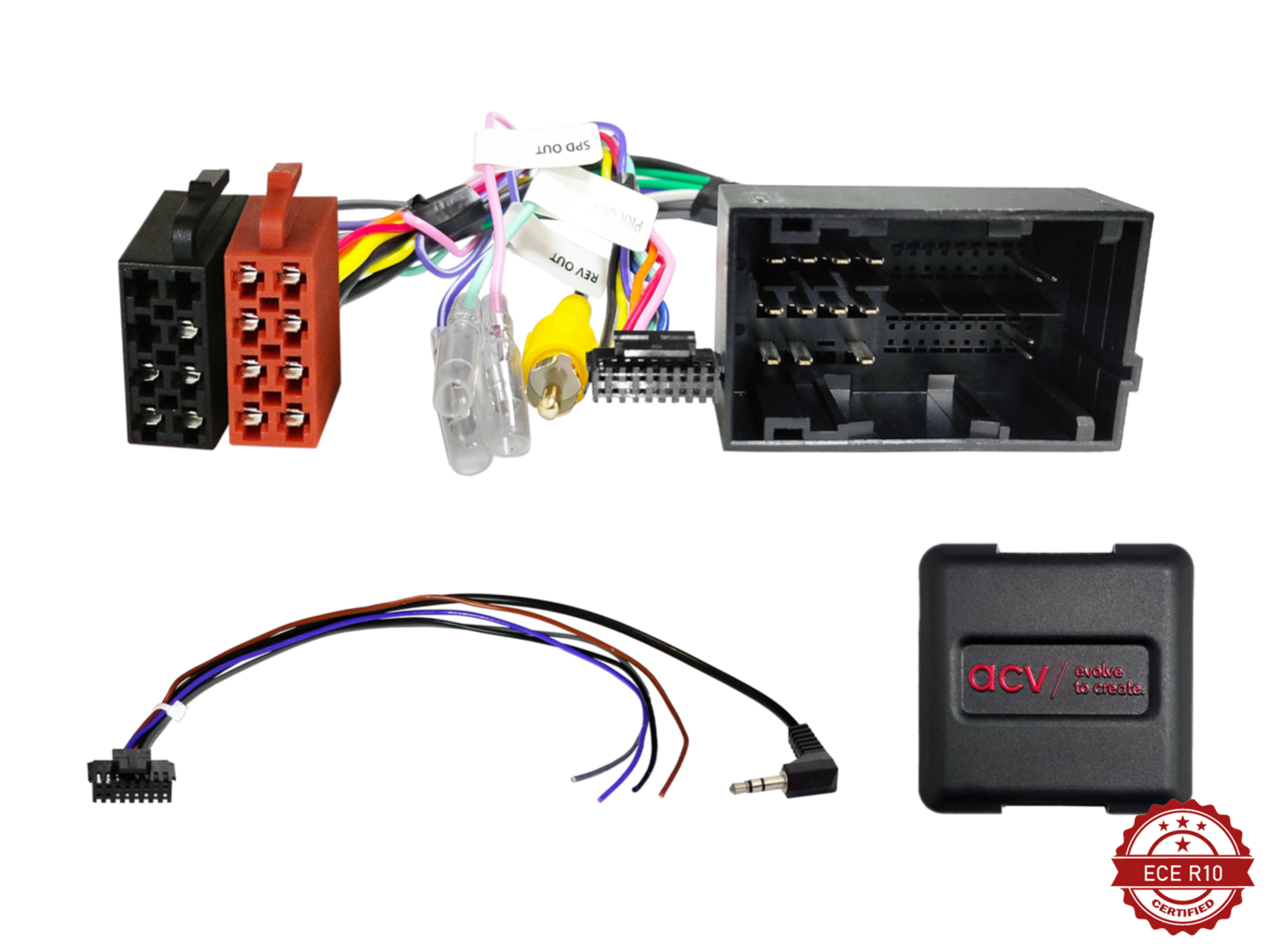

Compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.
Check if one of the listed OEM head units were installed originally.
Also check vehicle functionality, vehicle settings and SWC functionality before final assembly.
Keep the original steering wheel remote control functions when replacing the factory radio with a retrofit HU.
Depending on the vehicle equipment as well as the range of functions and software of the retrofit HU, individual operating functions may be omitted or replaced by other functions.
Compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.
Check if one of the listed OEM head units were installed originally.
Also check vehicle functionality, vehicle settings and SWC functionality before final assembly.
Note:
CAN Bus
connector: 52 Pin Fiat
connector: OEM SWC 3,5mm Jack / loose wire
connector: OEM rear view camera RCA(m) yellow rear viev camera input
vehicles with Continental 250VP1 / 250VP2 OEM HU
vehicles with UConnect OEM HU
vehicles with Daiichi OEM HU*
SWC buttons:
2 x 4 SWC control functions steering wheel front
dip switch settings for the retrofit device manufacturer (look into the manual)
vehicles with error display trip meter after installation dip switch position:
adjust dip switch position voltage-free
dip switch 5 on / dip switch 6 off / cut or loop white wire
dip switch 5 off / dip switch 6 on / cut or loop white wire
dip switch 6 on 250VP1 OEM HU
dip switch 5 on 250VP2 OEM HU
cut white loop Blue&Me OEM function
dip switch 5 off / dip switch 6 off / cut white loop Daiichi OEM Gerät
after changeover CAN Bus must shut down
vehicles with persistent error display and other software package not compatible
vehicle settings not supported***
high beam assistance not supported
driver assistance systems not supported
date/time adjustment not supported***
Vehicle application:
Alfa Romeo
Alfa Romeo 4C (960) 01/2014 - 08/2018**
Alfa Romeo Giuletta (940) 10/2013 - 04/2016
Alfa Romeo Giuletta (940) 04/2016 - 12/2021**
Alfa Romeo MiTo (955) 12/2013 - 08/2016
Alfa Romeo MiTo (955) 08/2016 - 08/2018
Citroen
Citroen Jumper (250) 05/2014 - 10/2022*
Citroen Jumper (250) 10/2022 - 06/2024*
Citroen e-Jumper (259) 10/2021 - 06/2024*
Citroen Relay (250) 2006- 2024*
Dodge
Dodge Dart 2013 - 2016****
Dodge RAM 2013 - 2021****
Dodge RAM Promaster 2013 - 2021*****
Dodge RAM Promaster-City 2015 - 2021
Fiat
Fiat 500 (ZAF 312) 07/2016 - 2023
Fiat 500L (ZAF 199) 10/2012 - 07/2017
Fiat 500L (ZAF 199) 07/2017 - 03/2022
Fiat Doblo (ZAF 263) 01/2015 - 06/2022
Fiat Ducato (ZFA 250) 05/2014 - 11/2021*
Opel
Opel Movano Cargo C (Y) 10/2021 - 01/2024*
Opel Movano Electric Cargo C (Y) 10/2021 - 01/2024*
Peugeot
Peugeot Boxer (Y) 09/2014 - 12/2019*
Peugeot Boxer (Y) 08/2018 - 06/2024*
Peugeot e-Boxer (Y) 10/2021 - 06/2024*
*vehicles with Daiichi OEM HU wiring harness black cables Dismantle adapter wiring harness radio slot driver′s side
*vehicles with direct wired OEM Daiichi HU coloured cables not compatible item: 42a-1094-018
***vehicle setting retention:
Infodapter Citroen/Fiat/Opel/Peugeot 52Pin Fiat VP1/VP2 item: 43uft01
****vehicles with small display
*****vehicles with 5″ OEM screen
*****vehicles with OEM Sat NAV
