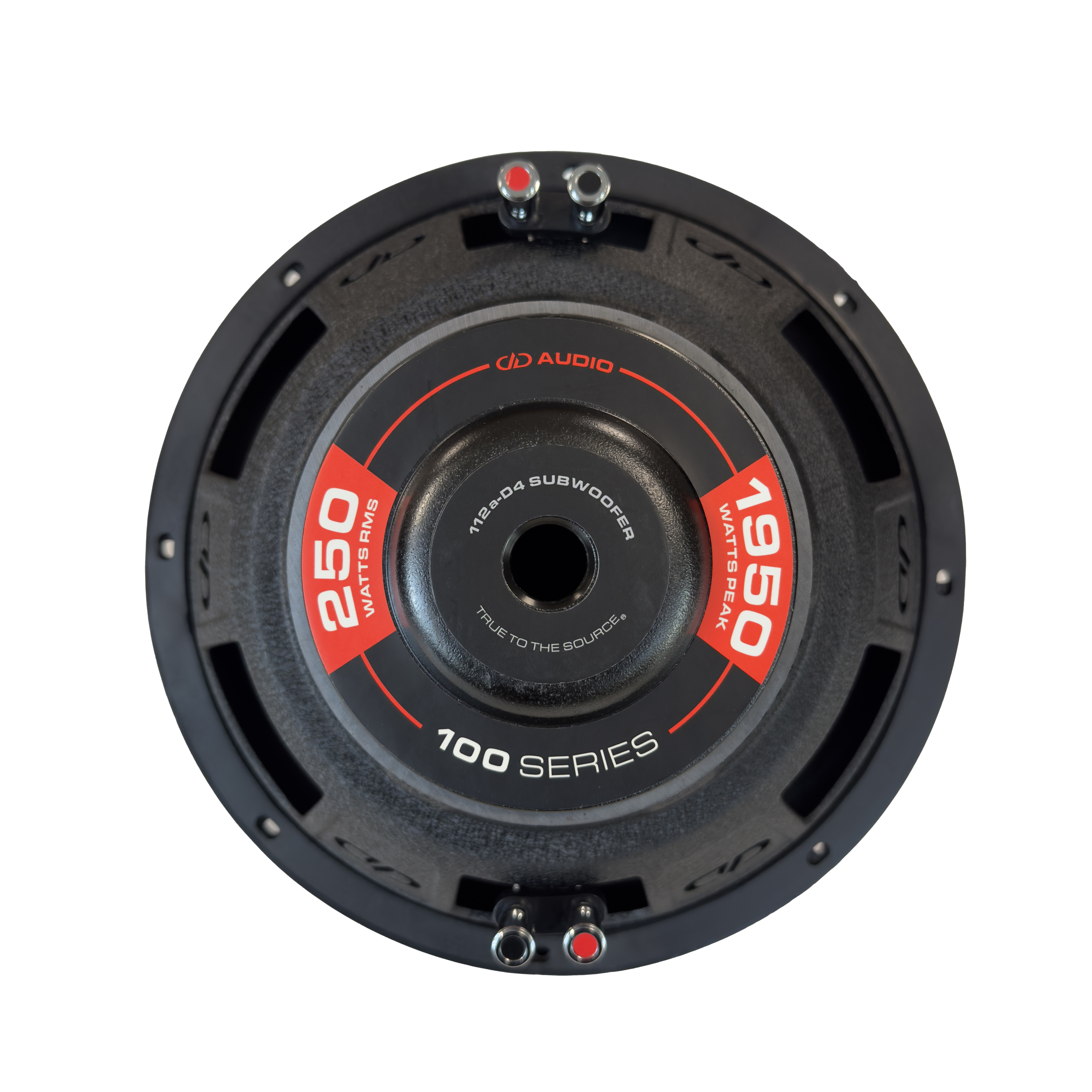

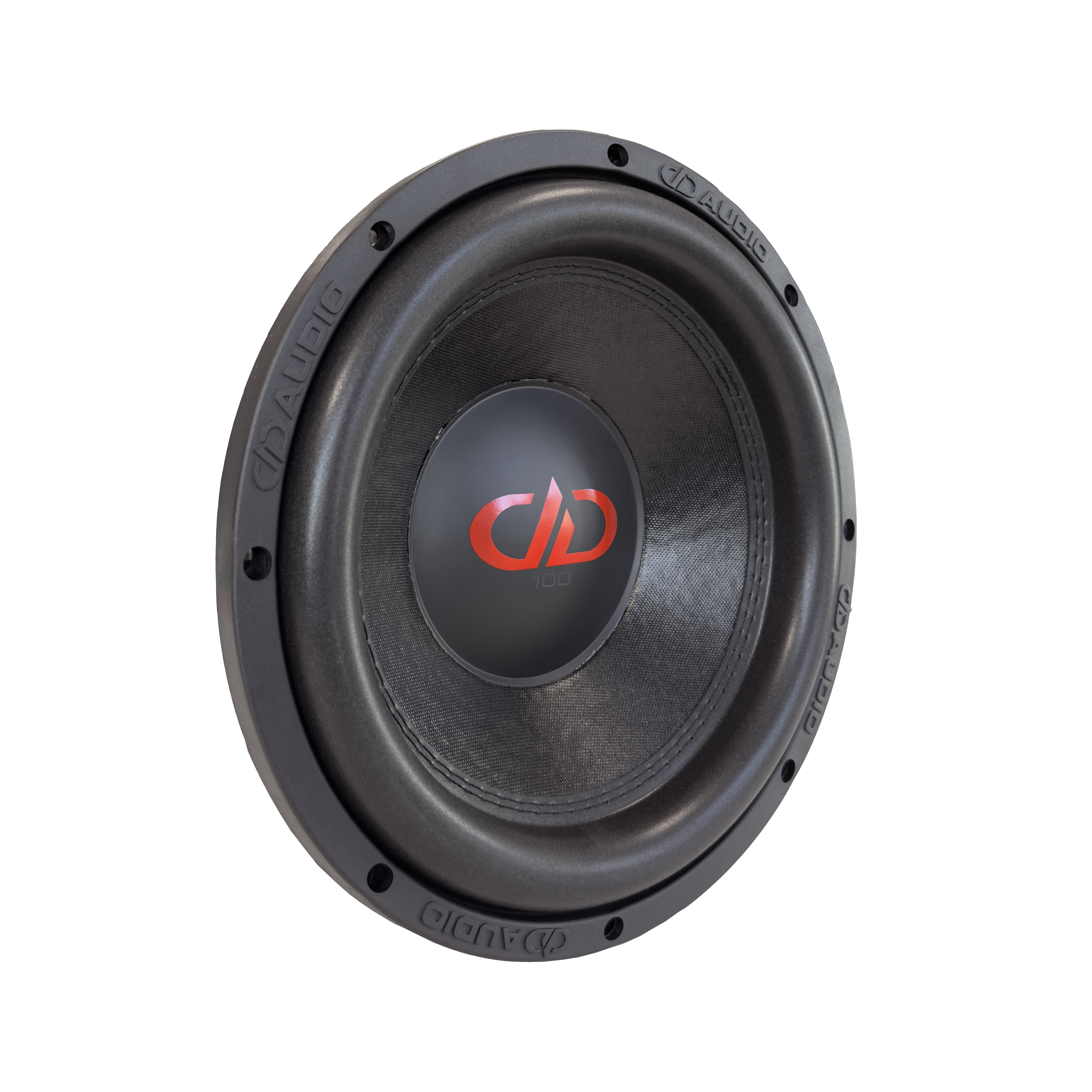

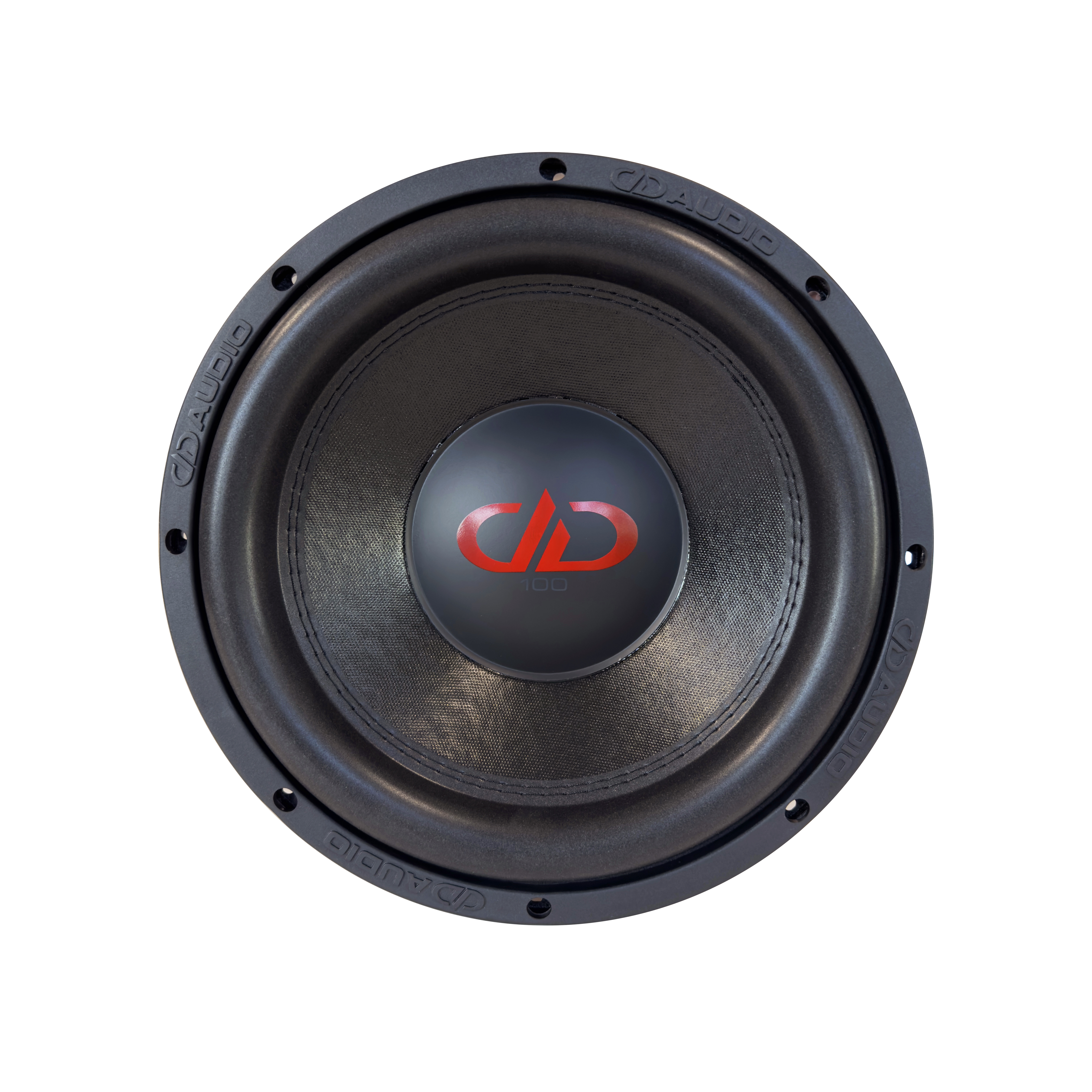

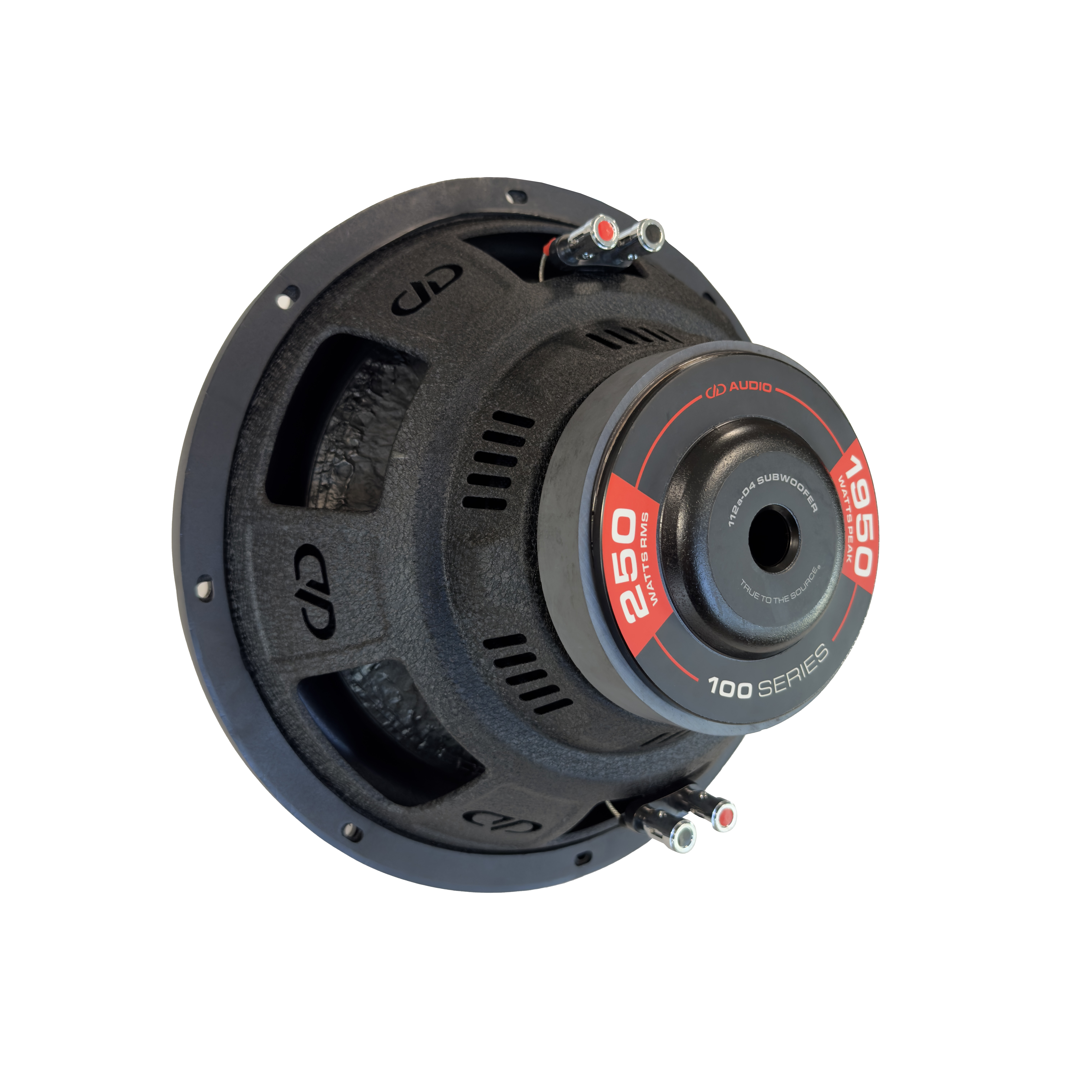

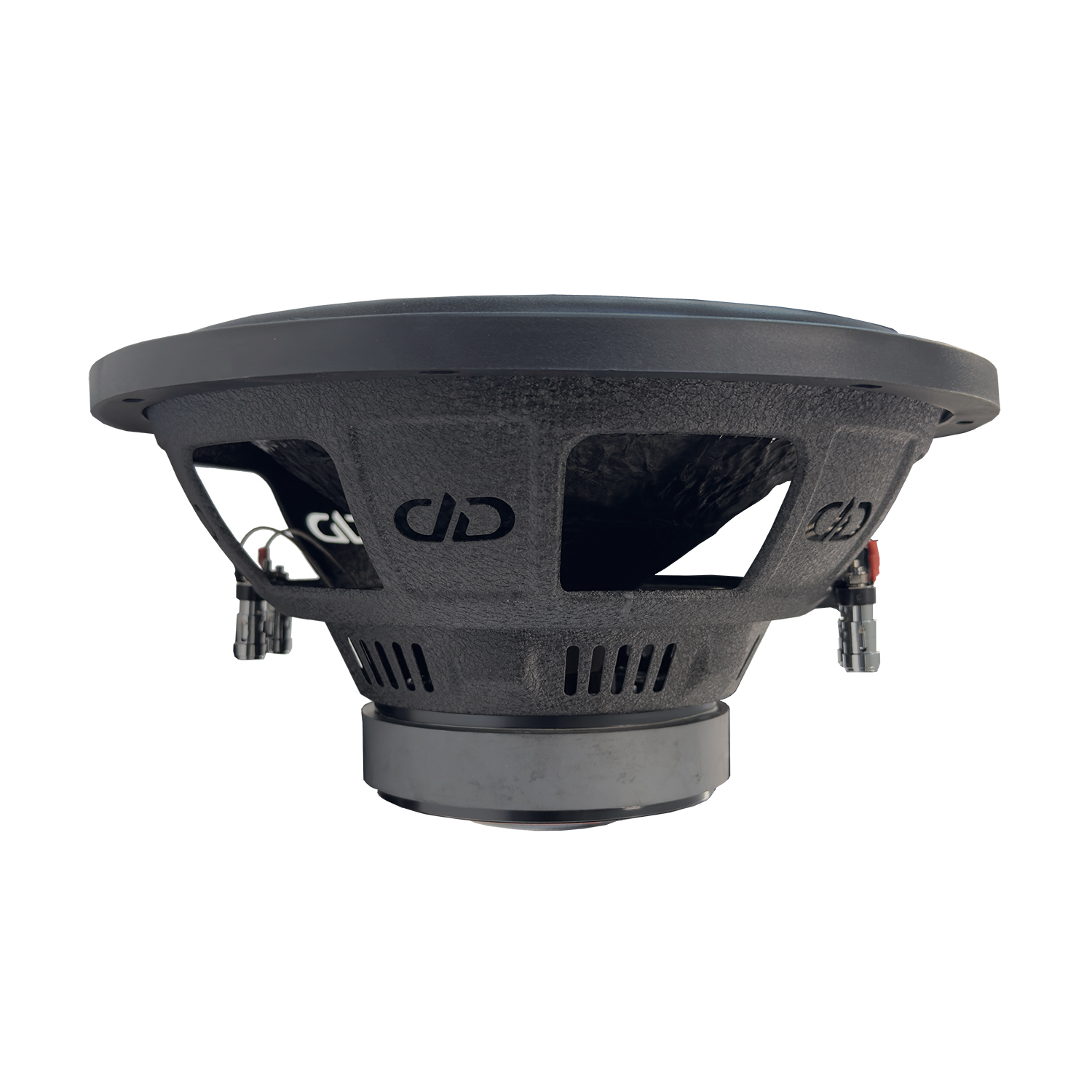

DD Audio 112a-D4
EAN: 0850054251510
DD112A-D4
12″ Subwoofer
Steel frame
2″ voice coil
2 x 4 Ohm
1950W
Read More
1 pcs
89,00 €
Description
Specifications
New 100a Series Woofers Are Optimized For High Efficiency Output In a Ported Enclosures.
The 100a series is designed to have high output on as little as 100 Watts! They are built and tuned to work well in vented enclosure designs.
High Efficiency Subwoofers With EROM Surround, Giving The most Useable Cone Area, Lightest Surround Mass And Highest Excursion.
The 100a series is designed to have high output on as little as 100 Watts! They are built and tuned to work well in vented enclosure designs.
High Efficiency Subwoofers With EROM Surround, Giving The most Useable Cone Area, Lightest Surround Mass And Highest Excursion.
Speaker Size (In): 12
Watts RMS: 250
Watts Peak: 1950
Impedance: D4
VCD (In): 2
Fs (Hz): 32
Qms: 6.21
Qes: 1.08
Qts: 0.92
Vas (Liters): 64.14
BL (TM): 14
Xmech (MM): 30
Xmax (MM): 10
Frame OD (In): 12.22
Frame OD w/ Gasket (In): 12.4
Mounting Diameter (In): 11
Mounting Depth (In): 5.34
Motor Diameter (In): 1.7
Motor Depth (In): 5.125
Magnet Weight (Oz): 40
Woofer Displacement (CuFt): 0.05
Ported Enclosure (CuFt): 0.8 - 2.0
Shipping Weight (Lbs): 15
