DD audio SL715-D4

DDSL715-D4

15″ Subwoofer
2 x 4 Ohm
1000W
3″ voice coil
FS: 27.7Hz

Read More
1 pcs
299,00 €
Weight: 17.00 kg
Temporarily out of stock
Any questions? Contact us[email protected]
Description
Specifications

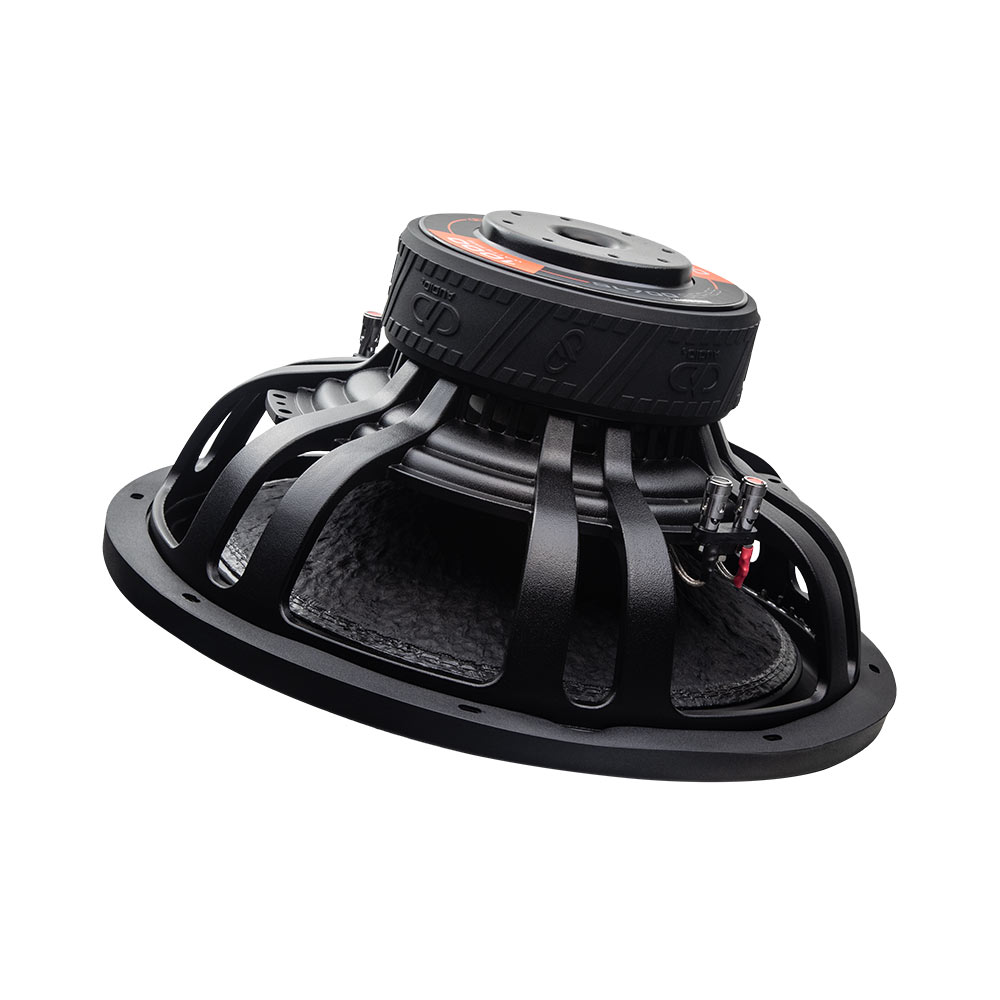

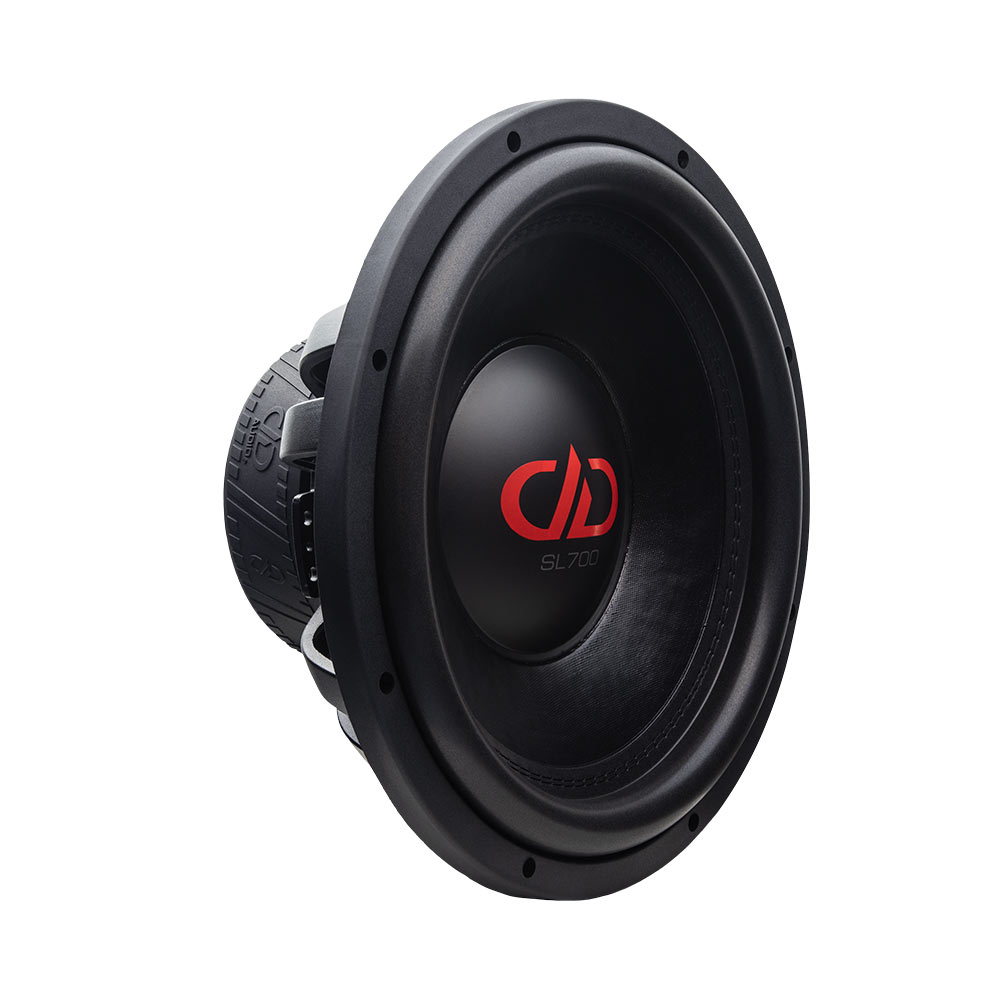

The SL700 Series is a throwback to subwoofers from the 2000s, designed to play any kind of music a system is geared toward. With a rich pedigree reaching back to the DD9000/DD4500 Series from that era, the SL700s combine rigid low mass cones, strong dual layered spiders, highly compressed EROM surrounds and a high-energy 3 inch voice coil that hits hard, low and fast.

While current subwoofer trends have moved toward air movement and hair dancing, we have been asked for subs focused on music that are highly efficient in smaller, daily driver enclosures. Focusing the bandwidth from 30-300Hz allows us to optimize the excursion and output for these applications. Our recently developed shallow cast frames coupled to high energy motors allow the SL700s to fit into compact enclosures fitting for trucks, under or behind seats, motorcycle bags, off-road side by sides/marine spaces and highly detailed SQ builds in sealed boxes.
Speaker Size (In): 15
Watts RMS: 1000
Impedance: D4
VCD (In): 3
Piston Diameter (In): 15
Fs (Hz): 27.7
Qms: 6
Qes: 0.73
Qts: 0.66
Vas (Liters): 54.9
Xmech (MM): 40
Xmax (MM): 19
Frame OD (In): 15.375
Frame OD (MM): 391
Frame OD w/Gasket (In): 15.5
Frame OD w/Gasket (MM): 394
Mounting Diameter (In): 13.875
Mounting Diameter (MM): 352
Mounting Depth (In): 6.75
Mounting Depth (MM): 172
Motor Diameter (In): 6.7
Motor Diameter (MM): 170
Motor Depth (In): 2.5
Motor Depth (MM): 63.5
Woofer Displacement (CuFt): 0.09
Woofer Displacement (Liters): 2.55
Sealed Enclosure (CuFt): 1.25 - 2.5
Sealed Enclosure (Liters): 25.4 - 70.8
Ported Enclosure (CuFt): 1.75 - 2.75
Ported Enclosure (Liters): 50 - 77.9
