DD Audio SL608-D4
EAN: 0850013938957
SL608-D4
8″
Slim Hi-Def subwoofer
900W
2 x 4 Ohm
2″ voice coil
Read More
1 pcs
189,00 €
Description
Specifications

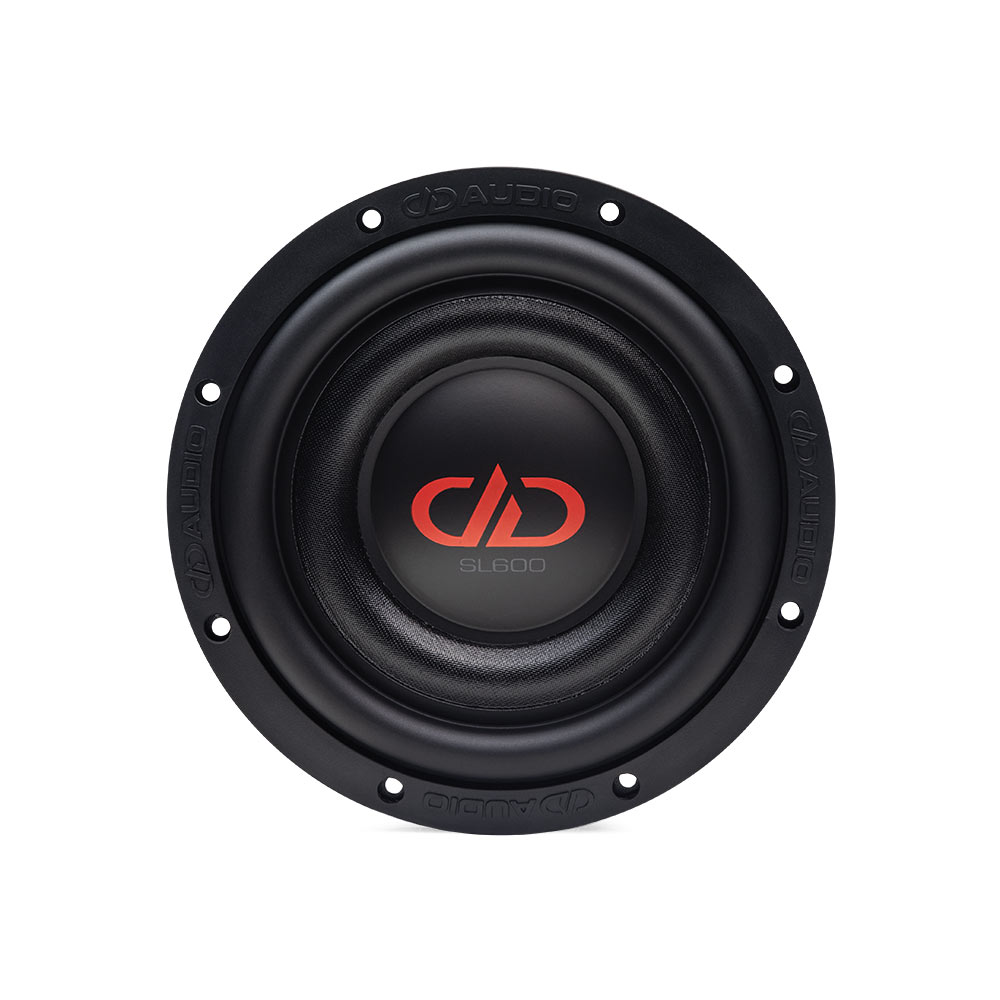

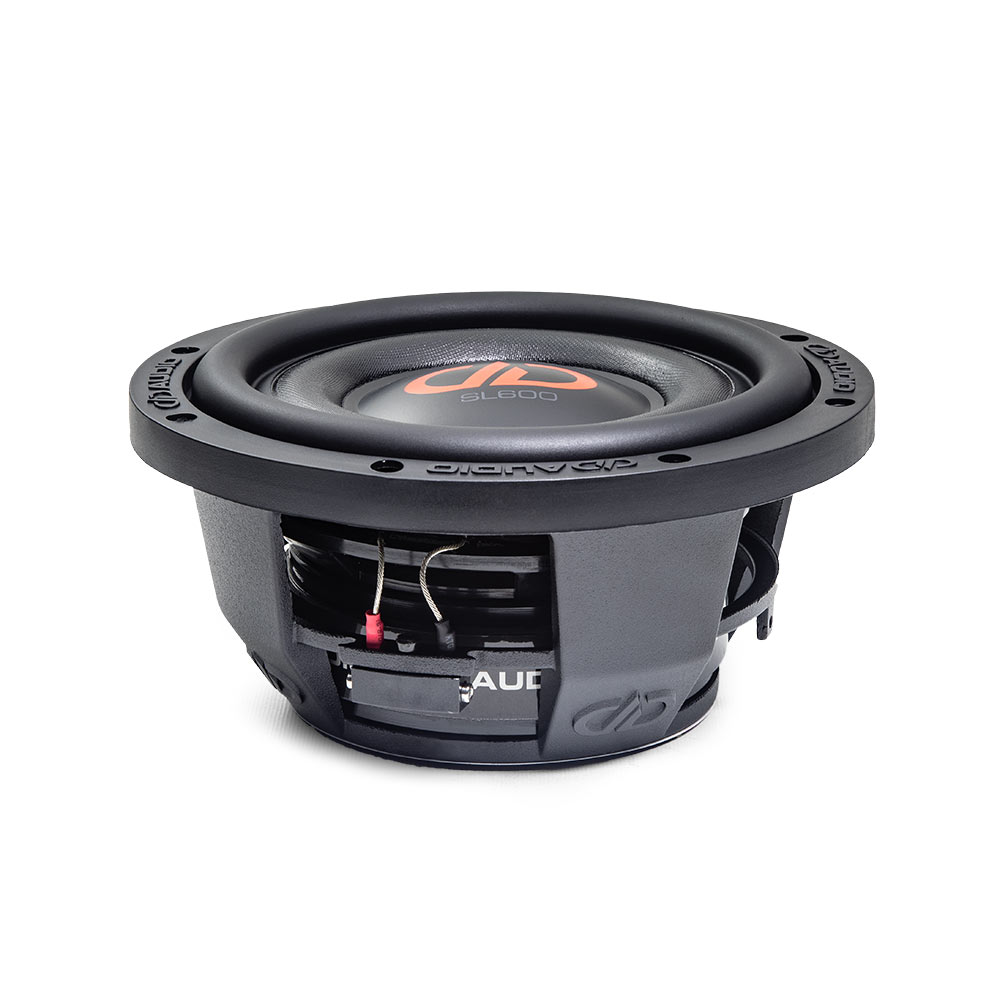

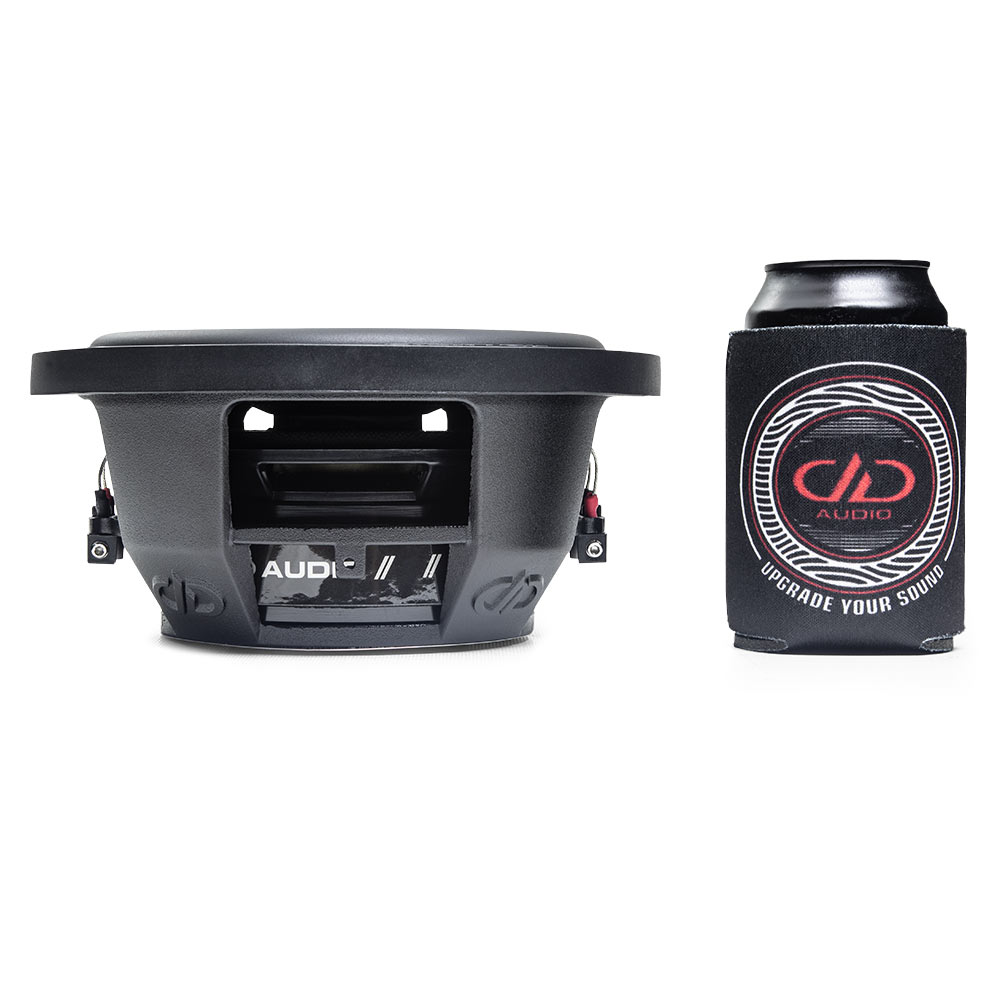

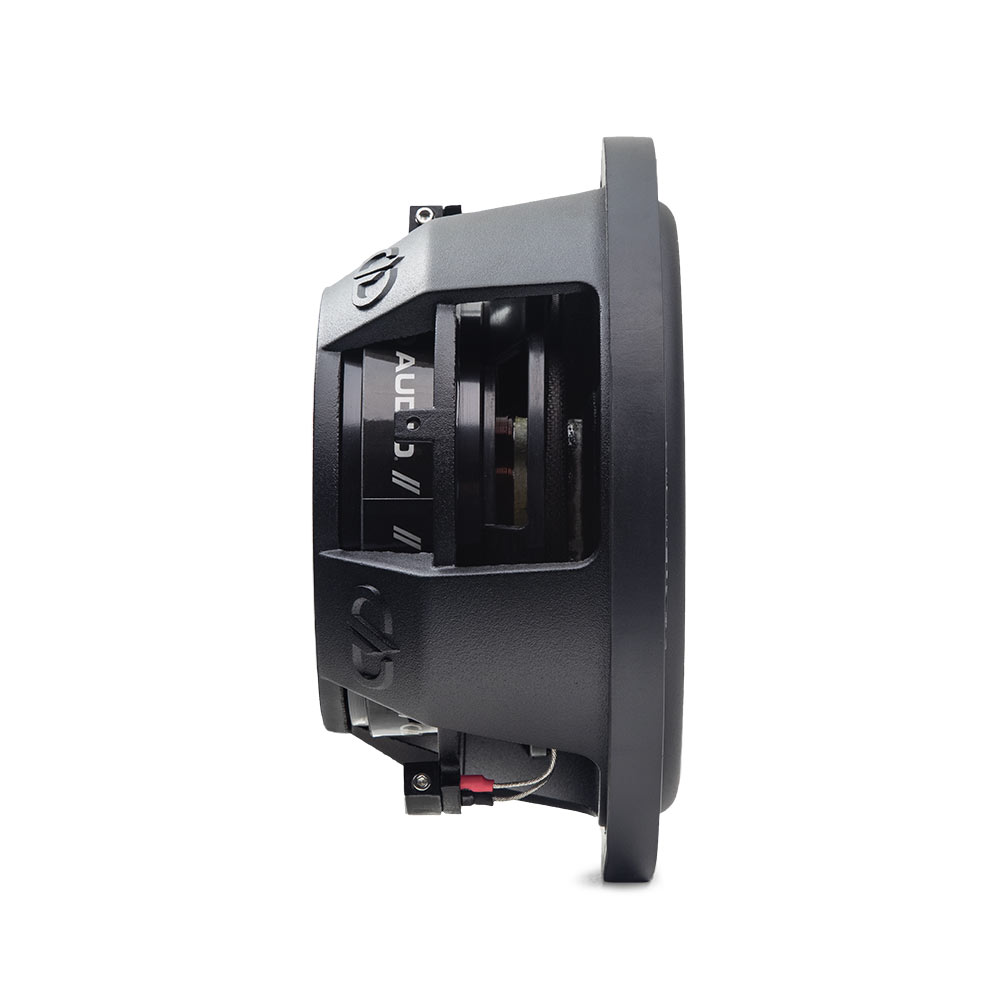

The new SL608 opens new opportunities in achieving great sound in space limited applications. The cast 8 inch DD frame houses a full size 134mm OD motor with a 25mm thick magnet combined with a deep bump back plate with 12mm Xmax. This state of the art subwoofer pushes 38mm excursion from a minimal 3.5 inch mounting depth.
The triple layer composite sandwich cone is coupled to a Santoprene rubber surround to give low distortion output in the most discerning sound quality applications. Following the standard DD AUDIO procedure, cutting-edge components are combined with state of the art engineering to create new standards in making the best sound systems possible. The new SL608 is the latest in a long line of excellent audio tools to unleash creative imagination in audio engineering.
The triple layer composite sandwich cone is coupled to a Santoprene rubber surround to give low distortion output in the most discerning sound quality applications. Following the standard DD AUDIO procedure, cutting-edge components are combined with state of the art engineering to create new standards in making the best sound systems possible. The new SL608 is the latest in a long line of excellent audio tools to unleash creative imagination in audio engineering.
Speaker Size (In): 8
Watts RMS: 300
Watts Peak: 900
Impedance: D4
VCD (In): 2
Piston Diameter (In): 6.5
Fs (Hz): 34
Qms: 5.139
Qes: 0.432
Qts: 0.398
Vas (Liters): 13.106
dBSPL: 84
Xmech (MM): 38
Xmax (MM): 12
Frame OD (In): 8.31
Frame OD (MM): 211.074
Frame OD w/Gasket (In): 8.5
Frame OD w/Gasket (MM): 215.9
Mounting Diameter (In): 7.37
Mounting Diameter (MM): 187.198
Mounting Depth (In): 3.5
Mounting Depth (MM): 88.9
Motor Diameter (In): 5.276
Motor Diameter (MM): 134.0104
Motor Depth (In): 1
Motor Depth (MM): 25.4
Magnet Weight (Oz): 50
Magnet Weight (Gm): 1417.48
Woofer Displacement (CuFt): 0.04
Woofer Displacement (Liters): 1.133
Sealed Enclosure (CuFt): 0.30 - 0.70
Sealed Enclosure (Liters): 8.495 - 19.822
Ported Enclosure (CuFt): 0.4 - 1.0
Ported Enclosure (Liters): 11.327 - 28.317
Shipping Weight (Lbs): 11
