Ground Zero GZFA 1.550D

EAN: 4037072024289
GZFA 1.550D

Mono amplifier
Class D
550W
Wired level remote control
High-level input

Read More
139,00 €
Weight: 2.29 kg
In stock
Any questions? Contact usinfo@audioimport.fi
Description
Specifications
Manuals
Ferrum amplifiers give a maximum bang for the buck. Simple and compact structure includes completely re-designed circuit board that is developed to get best possible sound quality, dependability and power for this price class.

- High-quality mono class D amplifier
- 1 ohm stable

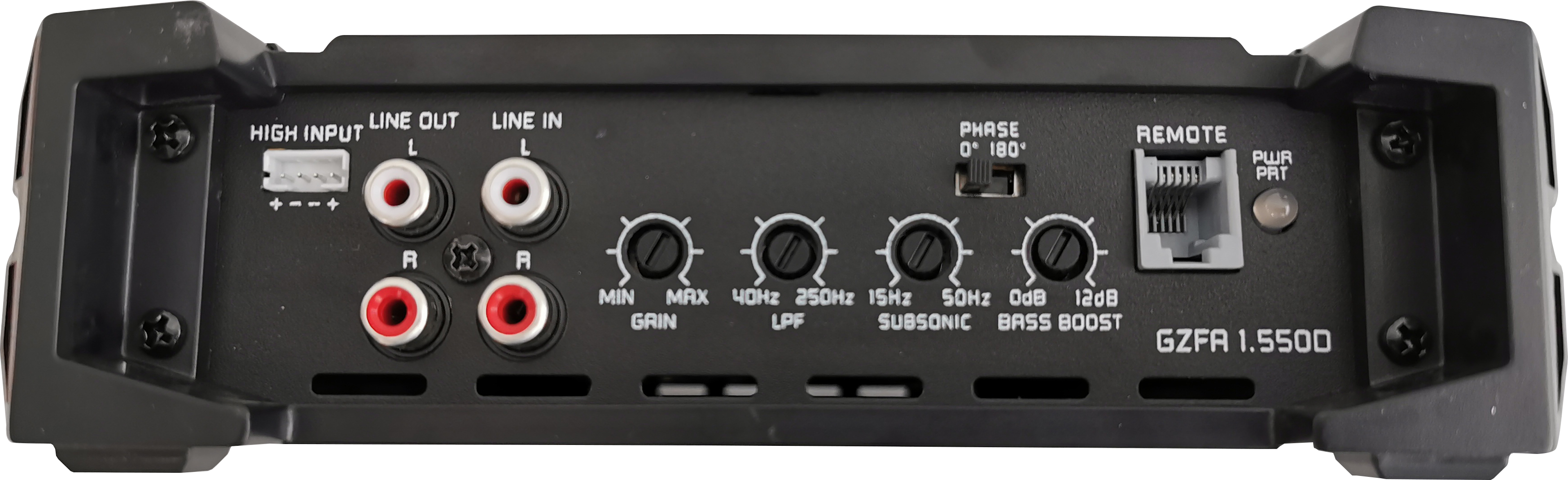

- Variable low pass & high pass filter
- Adjustable bass boost function
- Phase switch
- High-level input with auto-on function
- Adjustable input sensitivity
- Turn-on delay & thermal protection circuit

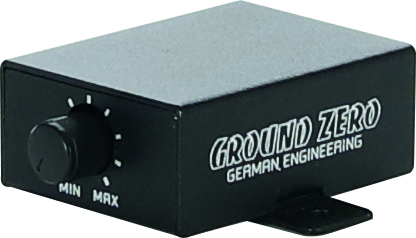

- Wired level remote control
Amplifier type: Mono Class D
Output power (RMS) @ 4 Ω: 185 W (1% THD+N)
Output power (RMS) @ 2 Ω: 280 W (1% THD+N)
Output power (RMS) @ 1 Ω: 350 W (1% THD+N)
Output power (RMS) @ 1 Ω: 550 W (10% THD+N)
Low pass filter: 40 Hz – 250 Hz (12 dB/oct)
High pass filter: 15 Hz – 50 Hz (12 dB/oct)
Frequency range: 15 Hz – 250 Hz
Signal-to-Noise ratio (SNR): 90 dB
Overall distortion (THD+N): 0.3%
Damping factor: 100
Input sensitivity: 200 mV – 4 V
Recommeded speaker wiring: ≥ 2.5 mm2 / 14 AWG
Recommended power wiring: ≥ 20 mm2 / 4 AWG

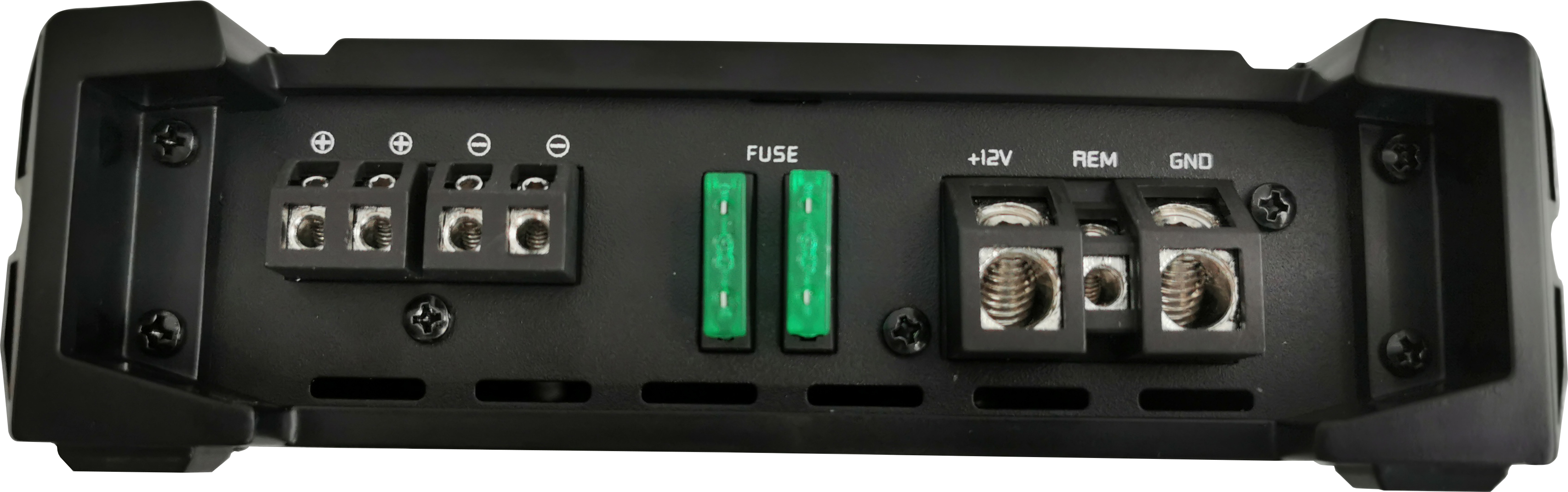

Fuse(s): 2x 30A
Dimensions (W x H x L): 180 x 53 x 277 mm.
