Ground Zero GZCA 500.Q1
EAN: 4037072025057
GZCA 500.Q1
4 channel amplifier
D class amplifier
Very powerful!
4x 450 W RMS
Read More
1 pcs
599,00 €
Description
Specifications
Manuals
4-channel 1-ohm stable full range SPL high power amplifier with class D circuit, integrated active crossover and bass boost.
SPL high power amplifier
Class D technology
Variable active crossover and bass boost
full range frequency responde
Stabilized high voltage power supply

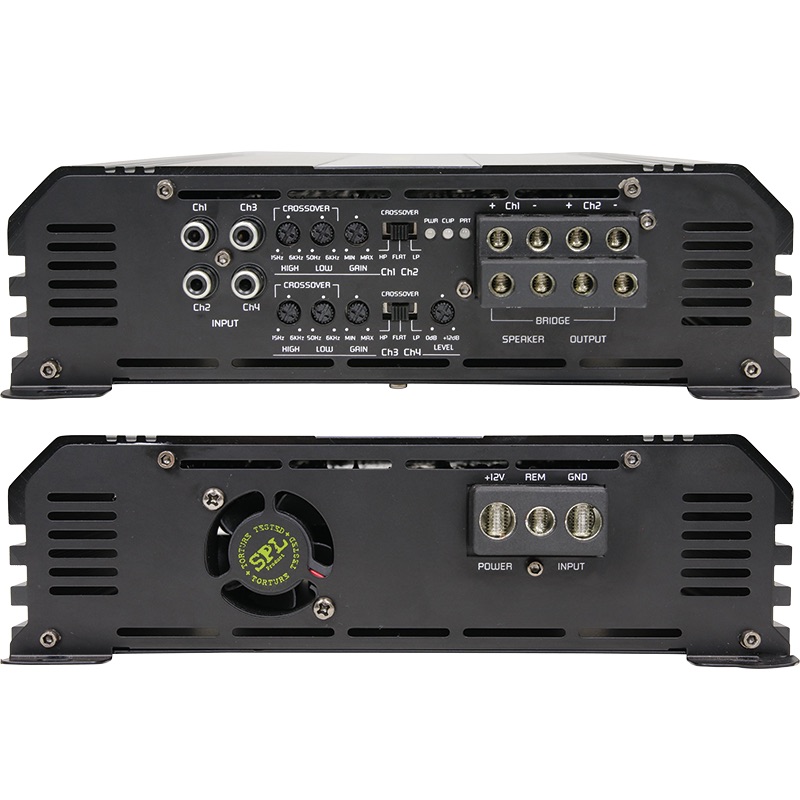

Large terminals

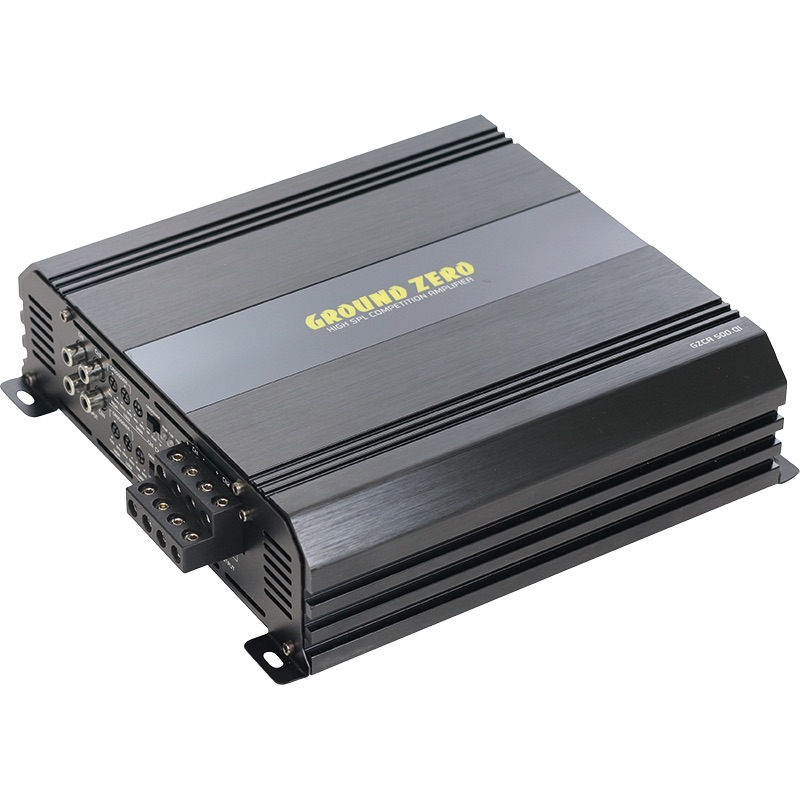

Solid heatsink with Ground Zero lettering
Particularly qualified for SPL and SQL applications
SPL high power amplifier
Class D technology
Variable active crossover and bass boost
full range frequency responde
Stabilized high voltage power supply
Large terminals
Solid heatsink with Ground Zero lettering
Particularly qualified for SPL and SQL applications
Model Competition SPL amplifier
Channels 4
@ 4 Ω: 4x 185 W (1% THD+N) RMS Power
@ 2 Ω: 4x 315 W (1% THD+N) RMS Power
@ 1 Ω 4x 450 W (1% THD+N) RMS Power
@ 2 Ω in bridged mode: 2x 900 W (1% THD+N)
Max. Power @ 1 Ω: 4x 575 W (10% THD+N)
Max. Power @ 2 Ω in bridged mode: 2x 1150 W (10% THD+N)
Frequency Response 10 Hz – 22 kHz
HPF / LPF / BPF ● / ● / ●
Bass Boost / Phase switch ● / ○
High level input / Auto-on ○ / ○
Remote ○
BIAS Setting ○
Linkmode ○
Dimensions (W x L x H) 230 x 270 x 67 mm / 9.06″ x 10.63″ x 2.64″
Channels 4
@ 4 Ω: 4x 185 W (1% THD+N) RMS Power
@ 2 Ω: 4x 315 W (1% THD+N) RMS Power
@ 1 Ω 4x 450 W (1% THD+N) RMS Power
@ 2 Ω in bridged mode: 2x 900 W (1% THD+N)
Max. Power @ 1 Ω: 4x 575 W (10% THD+N)
Max. Power @ 2 Ω in bridged mode: 2x 1150 W (10% THD+N)
Frequency Response 10 Hz – 22 kHz
HPF / LPF / BPF ● / ● / ●
Bass Boost / Phase switch ● / ○
High level input / Auto-on ○ / ○
Remote ○
BIAS Setting ○
Linkmode ○
Dimensions (W x L x H) 230 x 270 x 67 mm / 9.06″ x 10.63″ x 2.64″
