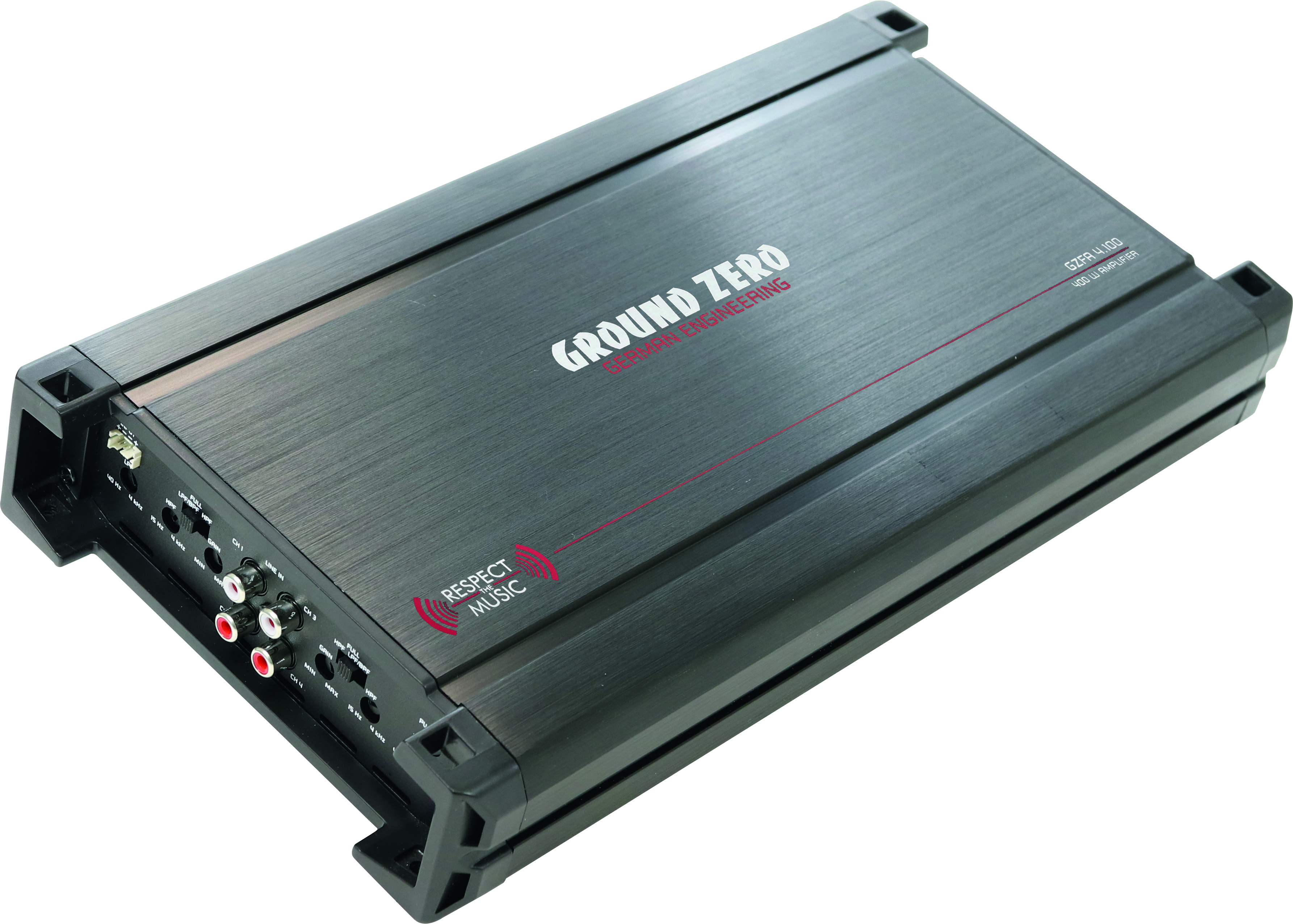

Ground Zero GZFA 4.100
EAN: 4037072024302
GZFA 4.100
4-channel amplifier
Class A/B amplifier
4x 85W or 2 x 200W
High-level input
Read More
139,00 €
Description
Specifications
Manuals
Ferrum amplifiers give a maximum bang for the buck. Simple and compact structure includes completely re-designed circuit board that is developed to get best possible sound quality, dependability and power for this price class.
- High-quality class A/B amplifier
- 2-ohms stable in stereo / 4-ohms stable in bridged mode
- Variable high and low pass filter
- High-level input with auto-on function
- Adjustable input sensitivity
- Turn-on delay & thermal protection circuit
- High-quality class A/B amplifier
- 2-ohms stable in stereo / 4-ohms stable in bridged mode
- Variable high and low pass filter
- High-level input with auto-on function
- Adjustable input sensitivity
- Turn-on delay & thermal protection circuit
Amplifier type: 4-channel
Output power (RMS) @ 4 Ω: 4x 65 W (1% THD+N)
Output power (RMS) @ 2 Ω: 4x 85 W (1% THD+N)
Max. bridged power @ 4 Ω: 2x 200 W (10% THD+N)
Low pass filter: 40Hz–4kHz (@12dB/oct)
High pass filter (subsonic): 15 Hz – 4 kHz (@ 12 dB/oct)
Frequency range: 15 Hz – 22 kHz
Signal-to-Noise ratio (SNR): 93 dB
Overall distortion (THD+N): 0.1%
Input sensitivity: 200 mV – 4 V
speaker wiring: ≥1.5 mm2 / 16 AWG
Recommended power wiring: ≥10 mm2 / 8 AWG
Fuse(s): 40A
Dimensions: 192 x 53 x 337 mm.
Output power (RMS) @ 4 Ω: 4x 65 W (1% THD+N)
Output power (RMS) @ 2 Ω: 4x 85 W (1% THD+N)
Max. bridged power @ 4 Ω: 2x 200 W (10% THD+N)
Low pass filter: 40Hz–4kHz (@12dB/oct)
High pass filter (subsonic): 15 Hz – 4 kHz (@ 12 dB/oct)
Frequency range: 15 Hz – 22 kHz
Signal-to-Noise ratio (SNR): 93 dB
Overall distortion (THD+N): 0.1%
Input sensitivity: 200 mV – 4 V
speaker wiring: ≥1.5 mm2 / 16 AWG
Recommended power wiring: ≥10 mm2 / 8 AWG
Fuse(s): 40A
Dimensions: 192 x 53 x 337 mm.
