ACV 42XMT012-0 LFB Mitsubishi L200/Outlander Multilead Kamera/Amp lose
EAN: 4026724675894
42xmt012-0
Steering wheel controls adapter
Compatibility: Mitsubishi
Mitsubishi L200 / Montero Sport / Outlander / Pajero Sport / Shogun Sport / Triton
Read More
1 pcs
309,00 €
Description
steering wheel controls adapter Mitsubishi
Keep the original steering wheel controls functions when replacing the factory radio with an aftermarket radio.
Depending on the vehicle equipment as well as the range of functions and software of the retrofit device, individual operating functions can be omitted or replaced by other functions.

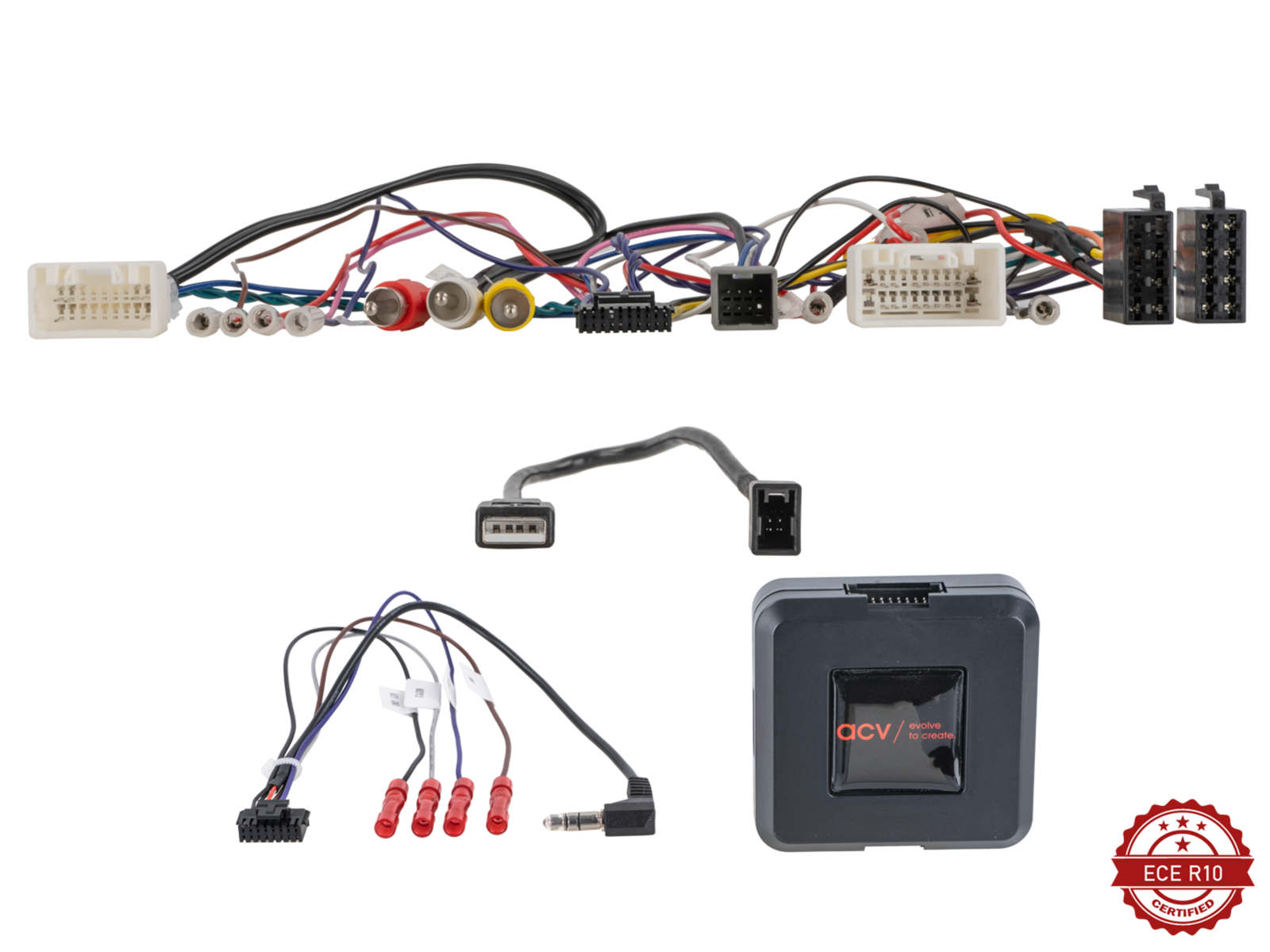

Compare the plugs of the adapter shown with those in your vehicle and make sure that they fit visually and technically.
Please also check whether one of the specified original factory radios was installed in your vehicle.
Before final assembly, check vehicle functions, vehicle settings and steering wheel controls for function.
Compatibility:
Mitsubishi L200 (KJ/KK/KL) 09/2019 - 10/2022
Mitsubishi Montero Sport (QE) 09/2019 - 2022
Mitsubishi Outlander (GFO) 09/2018 - 03/2022
Mitsubishi Pajero Sport (QE) 07/2019 - 2022
Mitsubishi Shogun Sport (QE) 07/2019 - 2022
Mitsubishi Triton (L200) 09/2020 - 2022
Technical details:
CAN Bus
Connector: 18 Pin / 20 Pin / 8 Pin Mitsubishi Connector
Connection: OEM steering wheel controls 3.5mm jack / loose cable
Connection: OEM AUX RCA(m) red/white
Connector: OEM USB USB-A
Connection: OEM 360° camera system RCA(m) yellow
Vehicles with OEM sound system
Fader function not supported
Dip switch settings for the retrofit device manufacturer (see BDA)
Functions and signals:
Re-import vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reversing signal
pink: speed signal
green: ground GND handbrake signal
Power handling outputs: 250 mA max.
Current requirement greater than 250 mA:
1 relay coil resistance 75 ohm min.
2 relays coil resistance 150 ohm min.
steering wheel controls
OEM Sound System
360° OEM Camera System
