ACV 51-1191 T-Harness Mercedes different vehicles/VW Quadlock
51-1191
T-harness
Compatibility: VW Crafter I
Compatibility: Mercedes S/W211
Compatibility: Sprinter W906
Read More
1 pcs
22,90 €
Description
Specifications

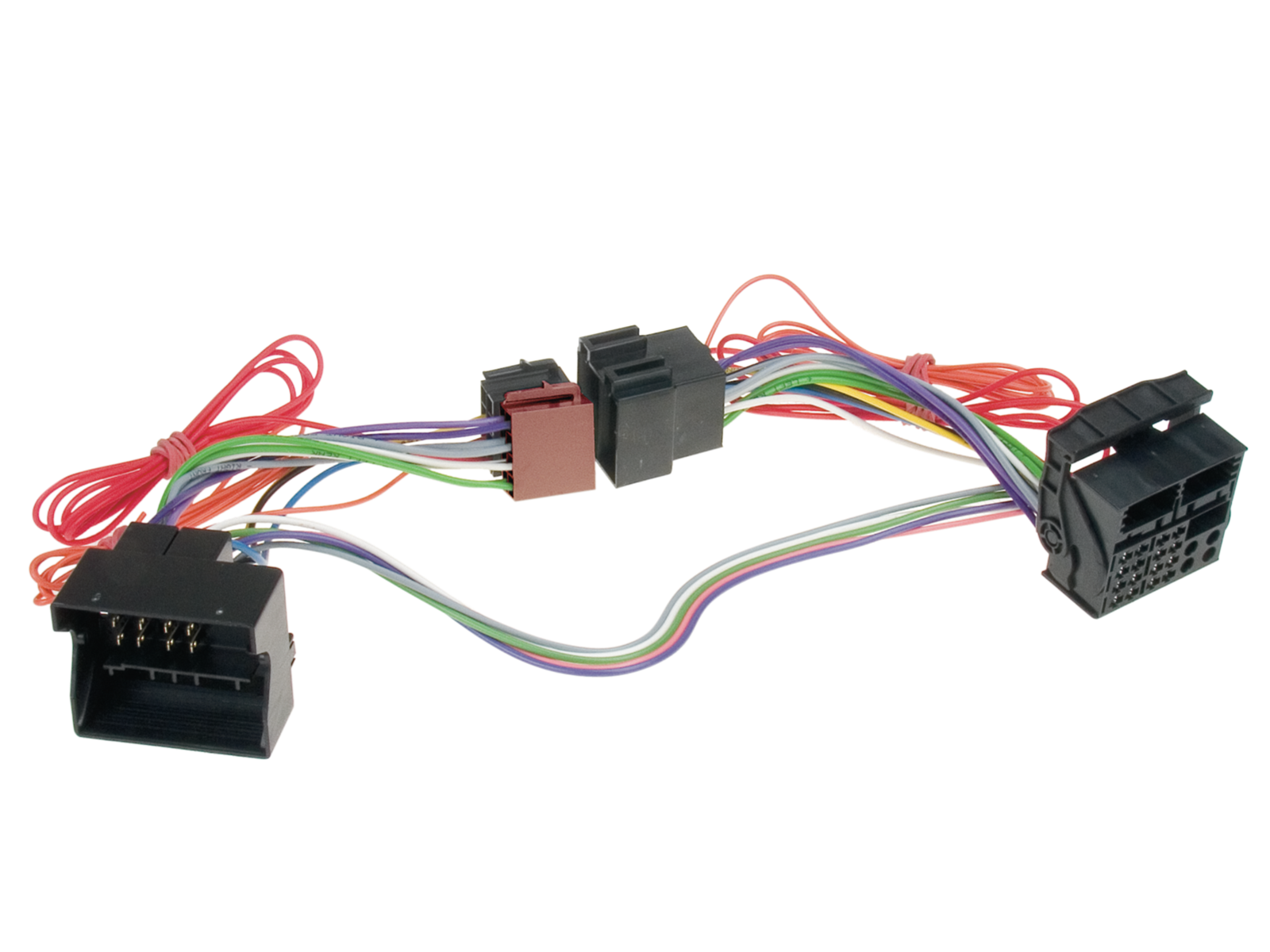

T-Harness Mercedes / Smart / VW
T-Harness cables enable you to tap off power and speaker wiring from the car specific radio harness without damaging it.
The functionality of the OEM HU will not be affected or damaged in any way.
This gives you the ability to retrofit components such as hands-free equipment, power amplifiers or high-low converters without harming the original radio wiring.
T-Harness cables enable you to tap off power and speaker wiring from the car specific radio harness without damaging it.
The functionality of the OEM HU will not be affected or damaged in any way.
This gives you the ability to retrofit components such as hands-free equipment, power amplifiers or high-low converters without harming the original radio wiring.
Note:
connector: 40 Pin Quadlock (m/f) Mercedes
for vehicles with OEM amplified systems or speaker impedance monitoring T-Harness only works with limitations or not at all
vehicles Mercedes with Audio 20 2-DIN OEM HU
vehicles Mercedes with Audio 50 APS Comand NTG2.5 OEM Sat Nav
vehicles Mercedes Sprinter (W907/W910) with open dash / with Browse 1-DIN OEM HU
vehicles Mercedes Citan 420 (W420) with open dash / with Browse 1-DIN OEM HU
vehicles Mercedes/VW without open dash
vehicles Mercedes/VW without 1-DIN OEM HU
red: +12V ignition clamp 15 connect to fusebox fused
orange: + 12V switched dimmer clamp 58 fused
Vehicle application:
Mercedes
Mercedes A-class (C169/W169) 10/2004 - 04/2008
Mercedes A-class (C169/W169) 06/2008 - 06/2012
Mercedes B-class (T245) 07/2005 - 04/2008
Mercedes B-class (T245) 04/2008 - 09/2011
Mercedes C-class (CL203/S203/W203) 02/2004 - 09/2007
Mercedes C-class (C204/S204/W204) 08/2007 - 01/2011
Mercedes C-class (C204/S204/W204) 03/2011 - 10/2015
Mercedes Citan 420 (W420) 10/2021 - 2023
Mercedes CLC-class (CL203) 06/2008 - 02/2011
Mercedes CLK-class (W209) 04/2005 - 01/2010
Mercedes CLS-class (C219) 04/2008 - 09//2010
Mercedes E-class (S211/W211) 03/2008 - 01/2009
Mercedes E-class (A212/C212/S212/W204) 02/2009 - 03/2013
Mercedes G-class (W463) 04/2007 - 06/2008
Mercedes G-class (W164) 09/2008 - 06/2012
Mercedes GL-class (X164) 09/2006 - 05/2009
Mercedes GL-class (X164) 05/2009 - 07/2012
Mercedes M-class (W164) 07/2005 - 04/2008
Mercedes M-class (W164) 10/2008 - 07/2011
Mercedes ML (W164) 07/2005 - 04/2008
Mercedes ML (W164) 10/2008 - 07/2011
Mercedes R-class (W251) 09/2005 - 05/2007
Mercedes R-class (W251) 05/2007 - 05/2010
Mercedes SLK-class (R171) 04/2008 -03/2011
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018
Mercedes Sprinter (W907/W910) 06/2018 - 12/2020
Mercedes Sprinter (W907/W910) 11/2019 - 2023
Mercedes Vito/Viano (W639) 04/2006 - 08/2010
Mercedes Vito/Viano (W639) 09/2010 - 03/2014
Mercedes Vito (V447) 10/2014 - 02/2019
Mercedes Vito (V447) 05/2019 - 2023
Smart
Smart For Four (W454) 01/2004 - 04/2007*
VW
VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016
*vehicles with Comand OEM Sat Nav 40 Pin Quadlock
Vehicles:
Mercedes CLS-Klasse (W219) 10/2004 - 06/2008
Mercedes E-Klasse (S211/W211) 03/2002 - 02/2008
Mercedes SL-Klasse (R230) 03/2006 - 02/2008
Mercedes SL-Klasse (R230) 04/2008 - 12/2011
Mercedes SLK-Klasse (R171) 03/2004 - 03/2008
