Helix K 8E.2
EAN: 4057204332556
K 8E.2

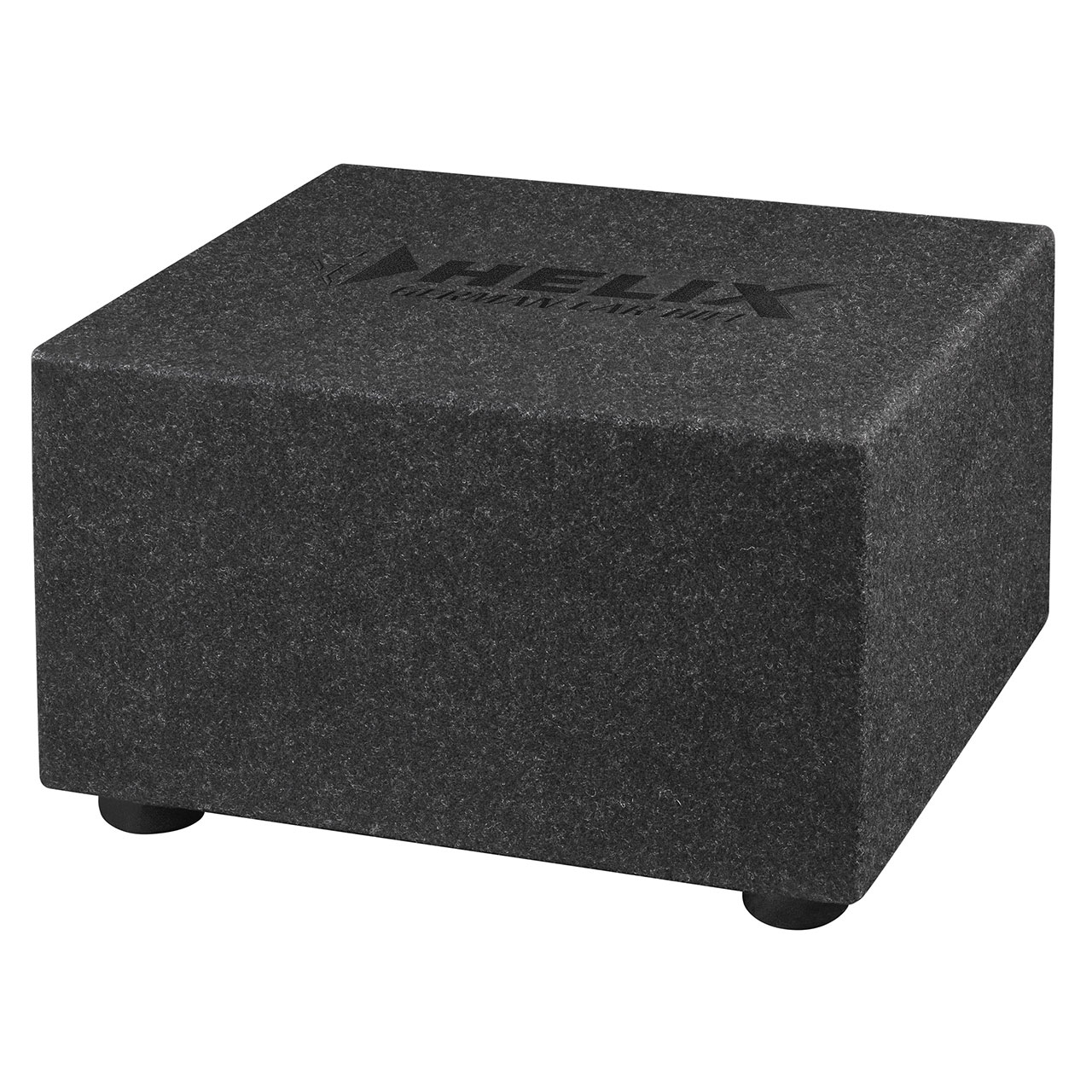

Helix 20 cm / 8″ pienikokoinen valmiskoteloitu subwoofer (2 x 2 Ohms)
Lue lisää
239,00 €
Tuotekuvaus
Tekniset tiedot
Ohjekirjat
Matchin K -sarjan 8″ subwoofer refleksi -kotelossa on pienikokoinen ratkaisu bassontarpeeseen.
Sopii pieneenkin tavaratilaan tai vaikka pakettiauton penkin alle
Sopii pieneenkin tavaratilaan tai vaikka pakettiauton penkin alle
Power RMS / max. P 300 / 600 Watts

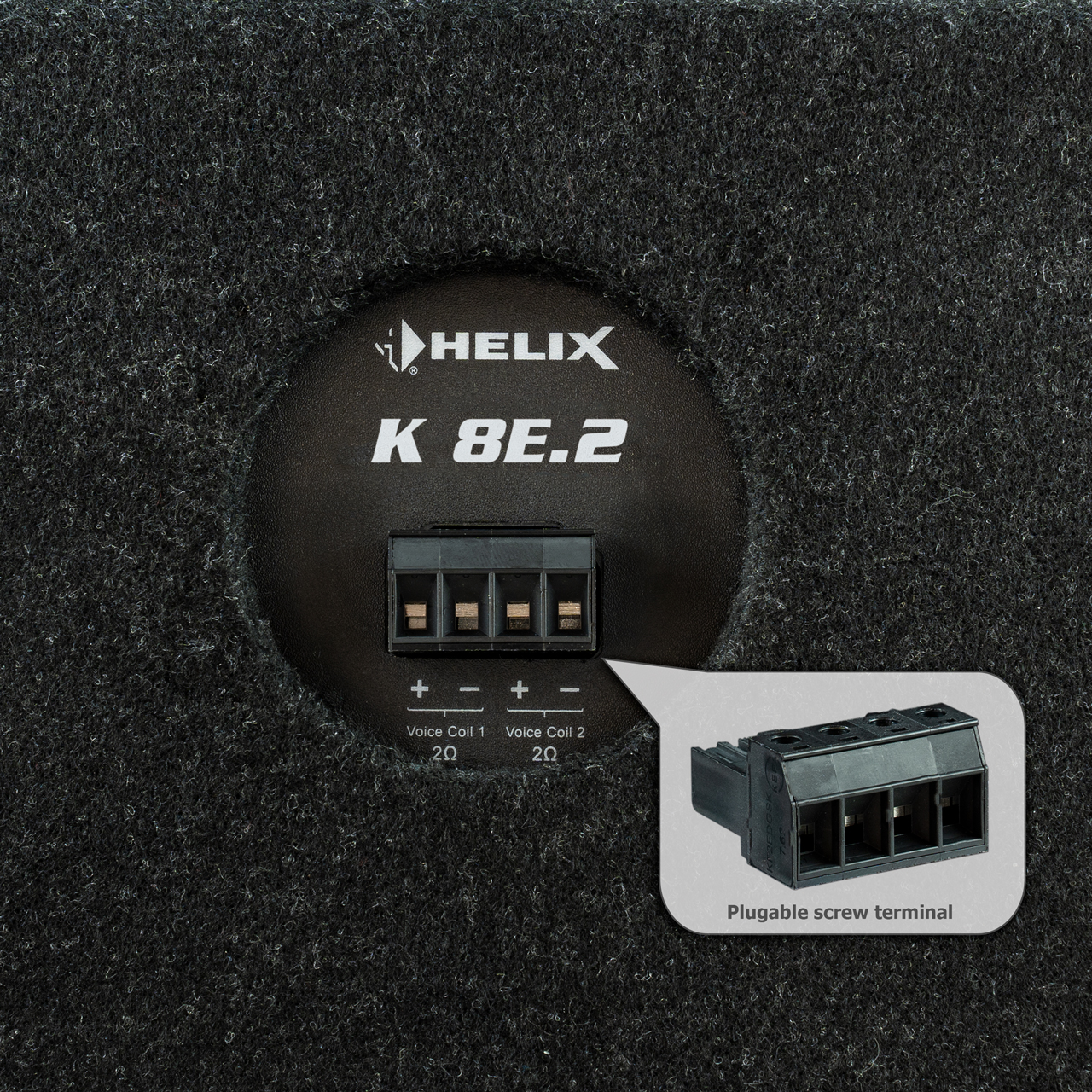

Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
Max. linear excursion Xmax +/- 8.0 mm
Port tuning frequency Fb 43 Hz
Sensitivity 1 W / 1 m SPL 86 dB
Dimensions (H x W x D) 184 x 310 x 285 mm /
7.2 x 12.2 x 11.2”
Recommended DSP settings Recommended ″self-define″ highpass filter with 44 Hz cut-off frequency and Q = 1.6
additional EQ filter 115 Hz / Q = 0.9 / -3.5 dB
Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
Max. linear excursion Xmax +/- 8.0 mm
Port tuning frequency Fb 43 Hz
Sensitivity 1 W / 1 m SPL 86 dB
Dimensions (H x W x D) 184 x 310 x 285 mm /
7.2 x 12.2 x 11.2”
Recommended DSP settings Recommended ″self-define″ highpass filter with 44 Hz cut-off frequency and Q = 1.6
additional EQ filter 115 Hz / Q = 0.9 / -3.5 dB
