Helix PR T25-S
EAN: 4057204324384
PR T25-S
25mm silkkikalotti diskantti
Loistava äänenlaatu!
4 Ohm
Lue lisää
1 kpl
159,00 €
Tuotekuvaus
Tekniset tiedot

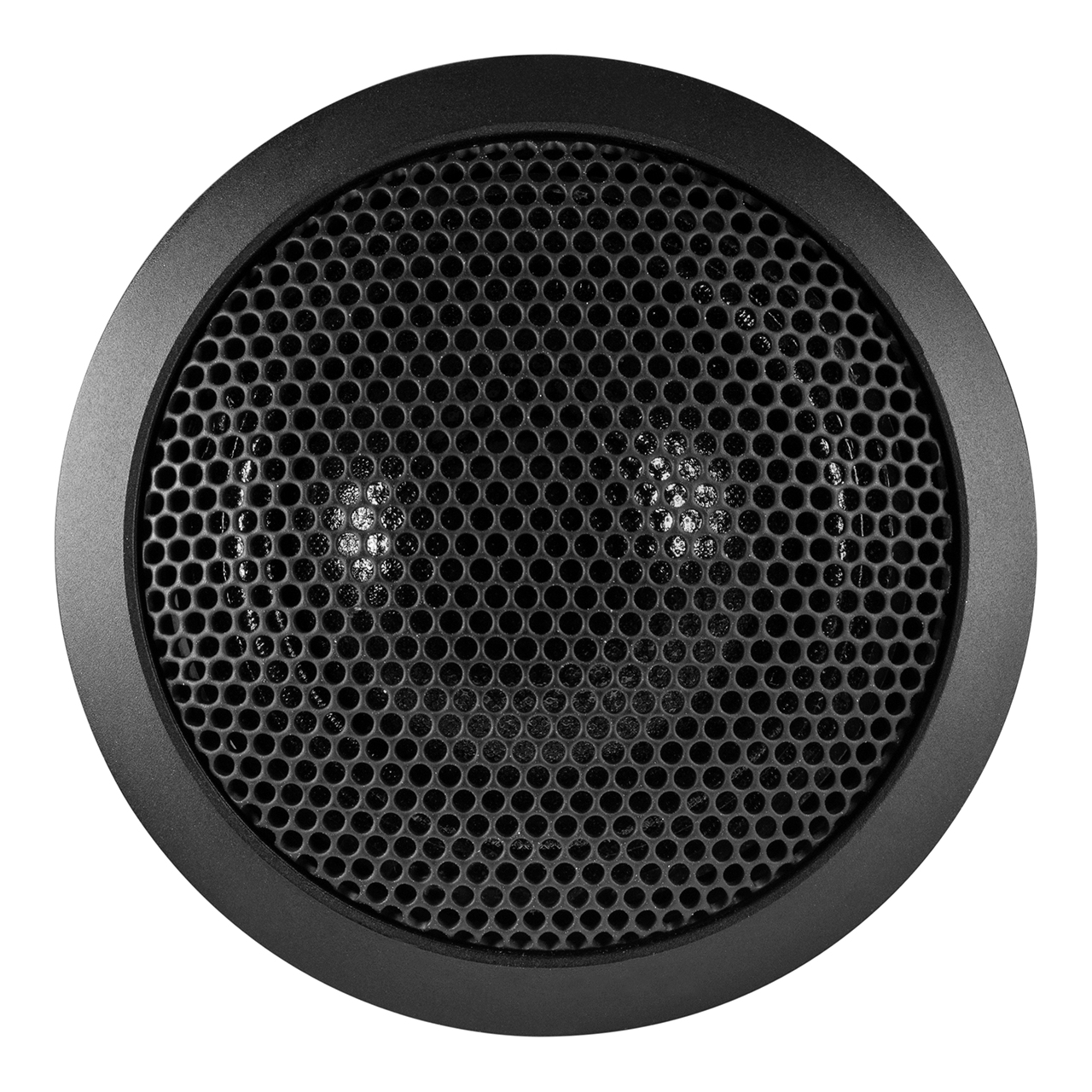

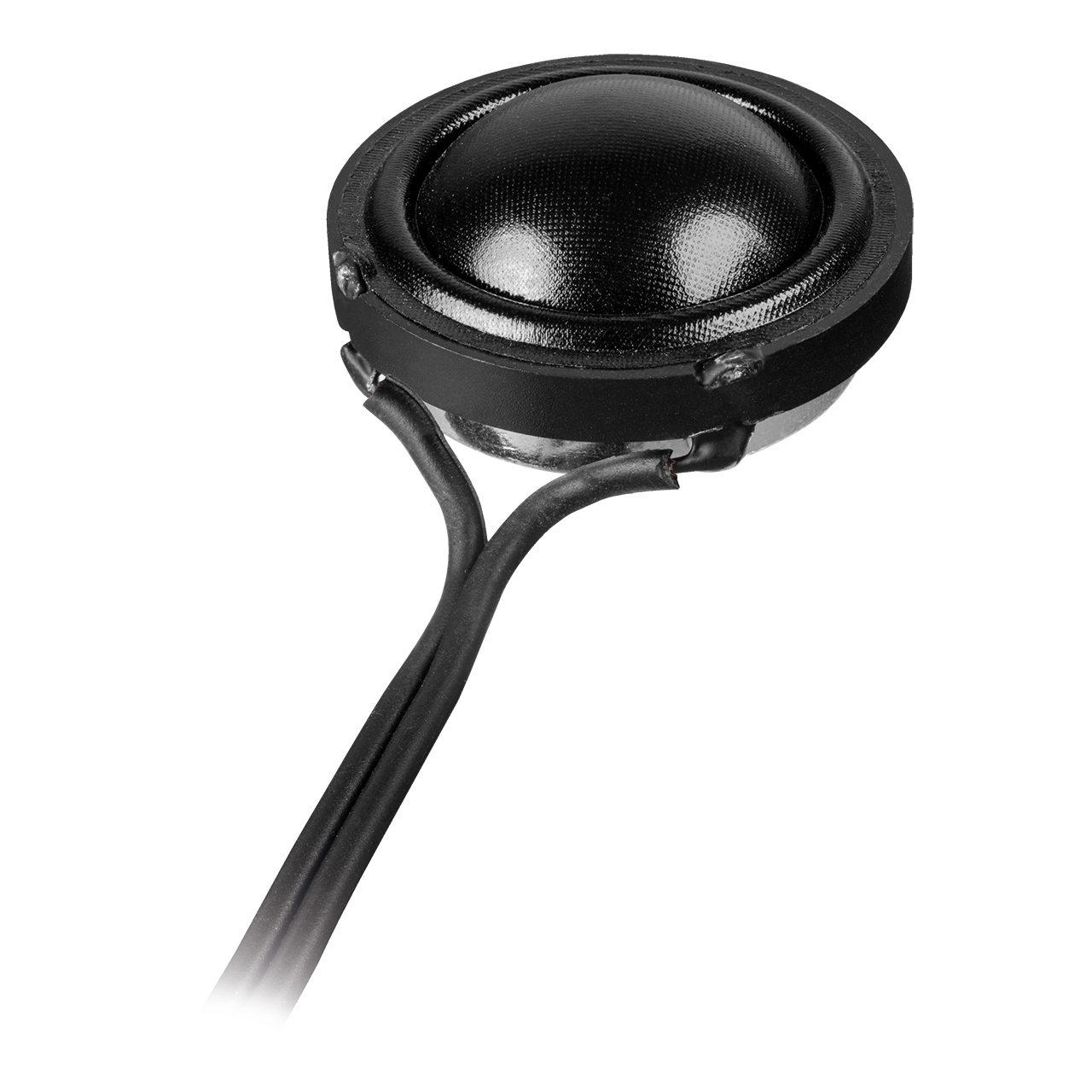

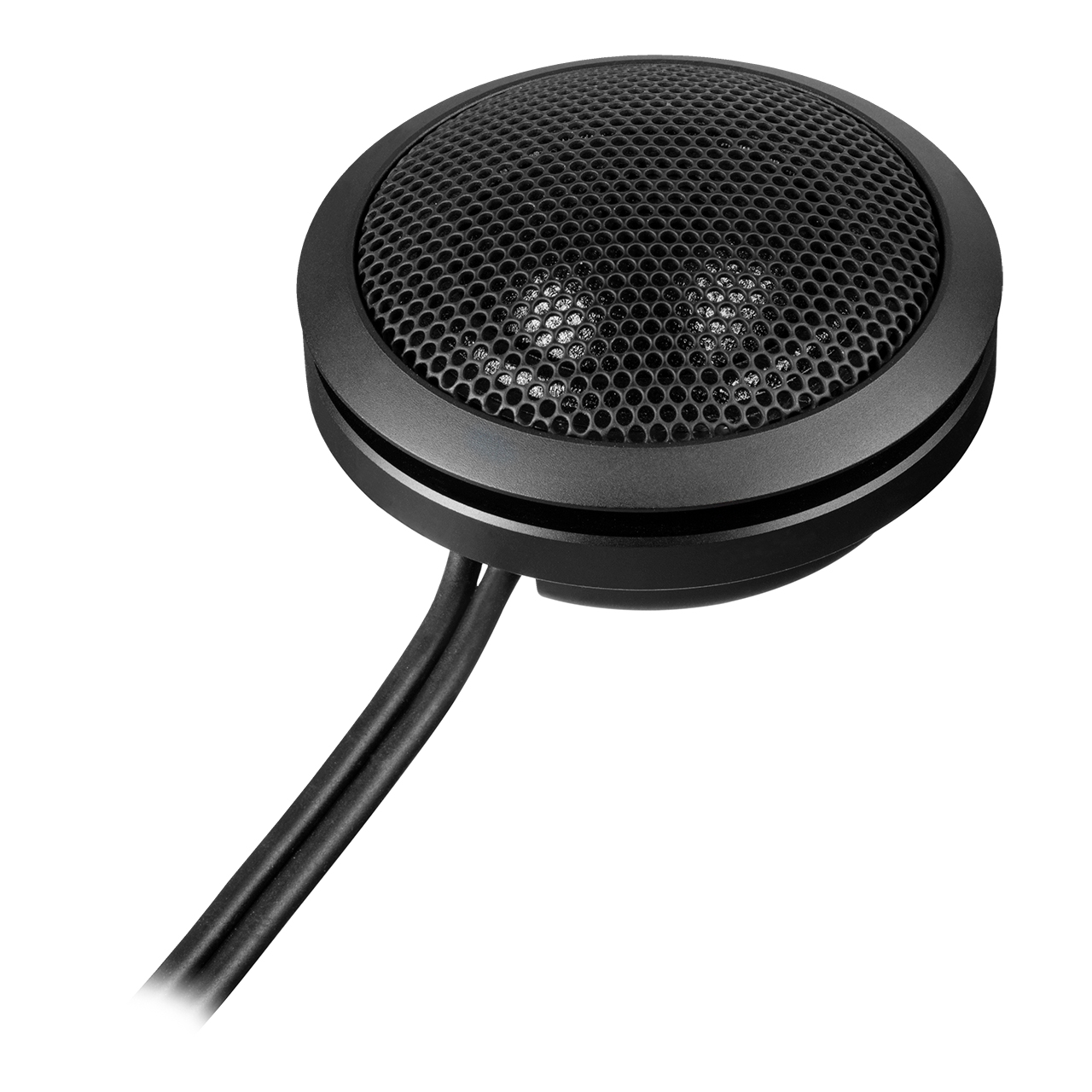

Helix PR T25-S on loistava ääninen 25mm silkkikalotti diskantti, joka toistaa kaikki taajuudet tarkasti ja kirkkaasti.
Technical data
Impedance Z 4 Ω
DC resistance Re 3.4 Ω
Frequency response 2,500 Hz - 25,000 Hz
Resonance frequency Fs 1,400 Hz
Sensitivity
SPL
92 dB @ 2,83V / 1m
89 dB @ 1W / 1m
Voice coil diameter ø 25 mm
Cone area Sd 4.9 cm²
Moving mass Mms 0.3 g
Cone material Coated silk dome
Outer diameter
(more data see data sheet) ø 37.7 mm / 1.48″
Installation diameter
(more data see data sheet) ø 37.7 mm / 1.48″
Installation depth
(more data see data sheet) 10.6 mm / 0.42″
Recommended crossover frequencies for the highpass
Slope Minimum crossover frequency
6 dB/Octave 4,000 Hz
12 dB/Octave 3,000 Hz
24 dB/Octave 2,500 Hz
Scope of delivery
2 x Hochtöner PR T25-S
2 x Aluminum flush mount housing
2 x OEM spacer
2 x Standard grille
2 x Exclusive HELIX grille
1 x Mounting material
Impedance Z 4 Ω
DC resistance Re 3.4 Ω
Frequency response 2,500 Hz - 25,000 Hz
Resonance frequency Fs 1,400 Hz
Sensitivity
SPL
92 dB @ 2,83V / 1m
89 dB @ 1W / 1m
Voice coil diameter ø 25 mm
Cone area Sd 4.9 cm²
Moving mass Mms 0.3 g
Cone material Coated silk dome
Outer diameter
(more data see data sheet) ø 37.7 mm / 1.48″
Installation diameter
(more data see data sheet) ø 37.7 mm / 1.48″
Installation depth
(more data see data sheet) 10.6 mm / 0.42″
Recommended crossover frequencies for the highpass
Slope Minimum crossover frequency
6 dB/Octave 4,000 Hz
12 dB/Octave 3,000 Hz
24 dB/Octave 2,500 Hz
Scope of delivery
2 x Hochtöner PR T25-S
2 x Aluminum flush mount housing
2 x OEM spacer
2 x Standard grille
2 x Exclusive HELIX grille
1 x Mounting material
