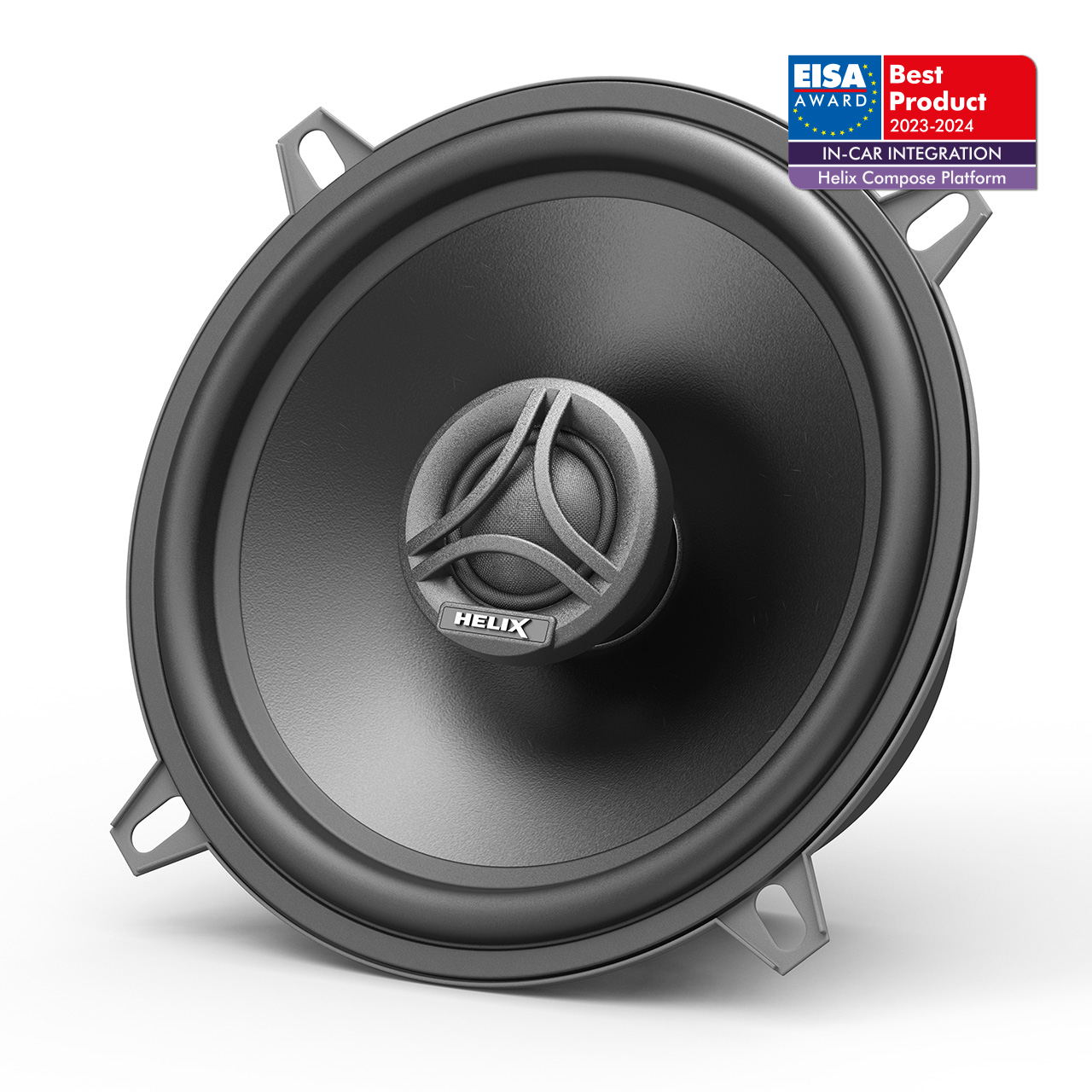

Helix CB C130.2-S3 - 3Ohm
EAN: 4057204323240
CB C130.2-S3
Helix Compose Basic 130mm - 2-tie koaksiaali - 3 Ohm
Lue lisää
119,00 €
Tuotekuvaus
Tekniset tiedot
Helix Compose Basic 130mm / 5,25 - 2-tie koaksiaalikaiutin.
Helix Basic on Compose -sarjan edullisin ja loistavalla hinta- / laatusuhteella varustettu mallisto!
Muiden Compose -mallien tapaan myös Basic on kehitetty autossa paikallaan, jonka ansiosta niiden optimointi on tehty nimenomaan autokäyttöön.
Helix Basic on Compose -sarjan edullisin ja loistavalla hinta- / laatusuhteella varustettu mallisto!
Muiden Compose -mallien tapaan myös Basic on kehitetty autossa paikallaan, jonka ansiosta niiden optimointi on tehty nimenomaan autokäyttöön.
Power handling RMS / Max. P 70 / 105 Watts
Frequency response 80 Hz - 22,000 Hz
Impedance Z 3 Ω
Sensitivity SPL 90 dB @ 2.83V / 1m
86 dB @ 1W / 1m
Outer diameter ø 130.0 mm / 5.12”
Installation diameter ø 118.0 mm / 4.65”
Installation depth 51.4 mm / 2.02”
Midrange
Impedance Z 3 Ω
DC resistance Re 3.0 Ω
Resonance frequency Fs 92 Hz
Mechanical Q factor Qms 4.28
Electrical Q factor Qes 1.18
Total Q factor Qts 0.92
Compliance Cms 303 μm/N
Equivalent air volume Vas 4.0 L
Force factor B*l 3.8 Tm
Cone area Sd 97 cm2
Moving mass Mms 9.7 g
Mechanical resistance Rms 1.33 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height
8.9 mm
Max. linear excursion Xmax +/- 2.5 mm
Tweeter
Voice coil diameter ø 20 mm
Features
Tweeter Silk dome and neodymium magnet
Midbass
Injected polypropylene cone
Crossover Integrated, 6 dB highpass
Scope of delivery
2 x CB C130.2-S3
1 x Mounting material
