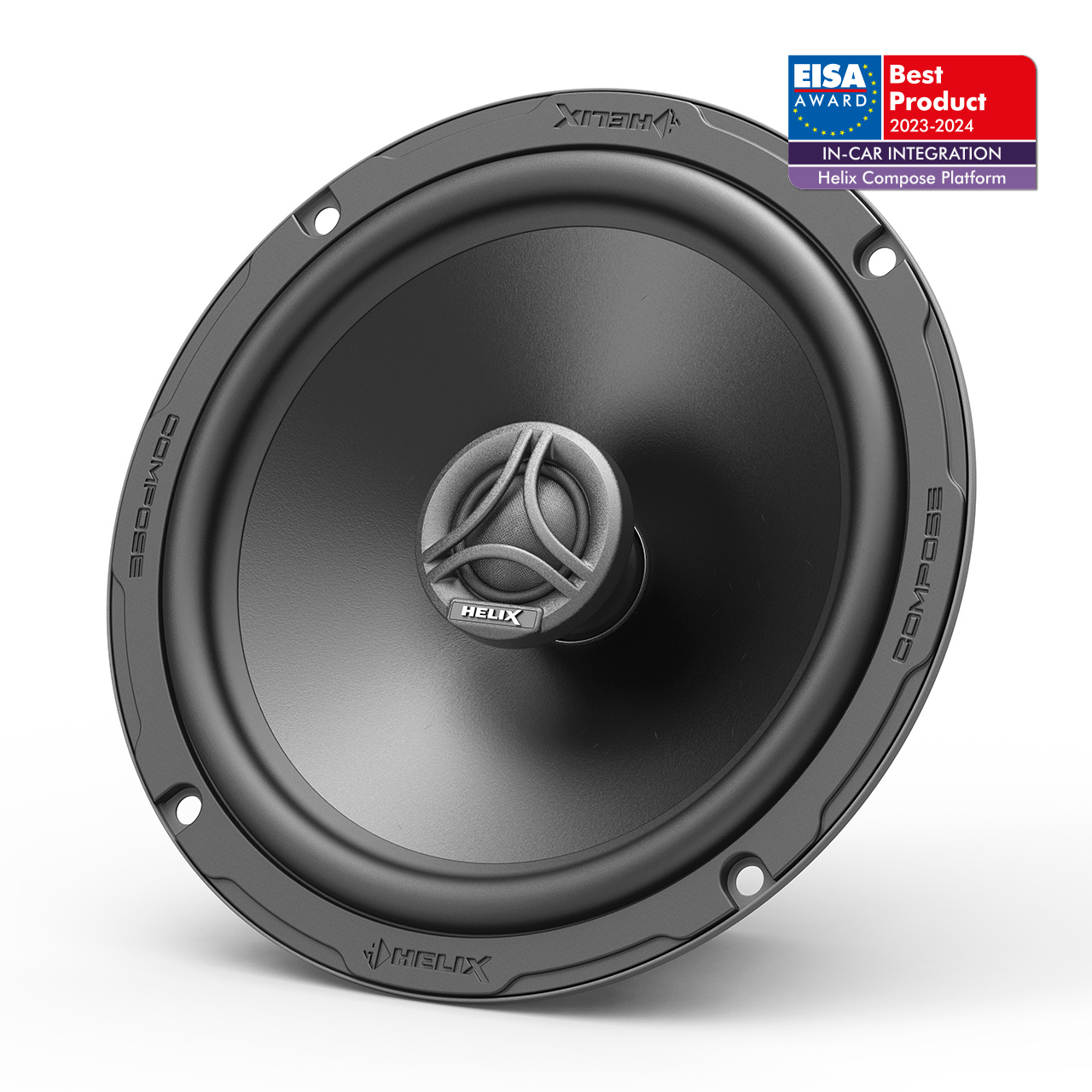

Helix CB C165.2-S3 - 3Ohm
EAN: 4057204323257
CB C165.2-S3
6,5″
2-tie koaksiaali
120W
3 Ohm
Lue lisää
1 kpl
119,00 €
Tuotekuvaus
Tekniset tiedot
Helix Compose Basic 165mm / 6,5″ - 2-tie koaksiaalikaiutin.
Helix Basic on Compose -sarjan edullisin ja loistavalla hinta- / laatusuhteella varustettu mallisto!
Muiden Compose -mallien tapaan myös Basic on kehitetty autossa paikallaan, jonka ansiosta niiden optimointi on tehty nimenomaan autokäyttöön.
Helix Basic on Compose -sarjan edullisin ja loistavalla hinta- / laatusuhteella varustettu mallisto!
Muiden Compose -mallien tapaan myös Basic on kehitetty autossa paikallaan, jonka ansiosta niiden optimointi on tehty nimenomaan autokäyttöön.
Power handling RMS / Max. P 80 / 120 Watts
Frequency response 60 Hz - 22,000 Hz
Impedance Z 3 Ω
Sensitivity SPL 92 dB @ 2.83V / 1m
88 dB @ 1W / 1m
Outer diameter ø 166.0 mm / 6.54”
Installation diameter ø 143.0 mm / 5.63”
Installation depth 61.4 mm / 2.42”
Midrange
Impedance Z 3 Ω
DC resistance Re 3.0 Ω
Resonance frequency Fs 65 Hz
Mechanical Q factor Qms 4.78
Electrical Q factor Qes 0.93
Total Q factor Qts 0.78
Compliance Cms 480 μm/N
Equivalent air volume Vas 12.9 L
Force factor B*l 4.1 Tm
Cone area Sd 139 cm2
Moving mass Mms 12.5 g
Mechanical resistance Rms 1.09 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height
8.9 mm
Max. linear excursion Xmax +/- 2.5 mm
Tweeter
Voice coil diameter ø 20 mm
Features
Tweeter Silk dome and neodymium magnet
Midbass
Injected polypropylene cone
Crossover Integrated, 6 dB highpass
Scope of delivery
2 x CB C165.2-S3
1 x Mounting material
