ACV 621190-27-3 2-DIN kitti Mercedes Sprinter(W906)/VW Crafter
EAN: 4026724673951
621190-27-3
2-DIN kitti
Mercedes Sprinter(W906)/VW Crafter
2-DIN soitinkehys
Rattiohjain-adapteri
Antenni adapteri
Lue lisää
1 kpl
145,99 €
Tuotekuvaus
Tekniset tiedot
Tämän kitin avulla saat asennettua autoosi 2-DIN soittimen, saat autosi alkuperäisen rattikaukosäätimen toimimaan uuden autoradiosi kanssa ja mukana tulee myös autoosi sopiva antenni-adapteri
Yhteensopivuus:
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018
VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016

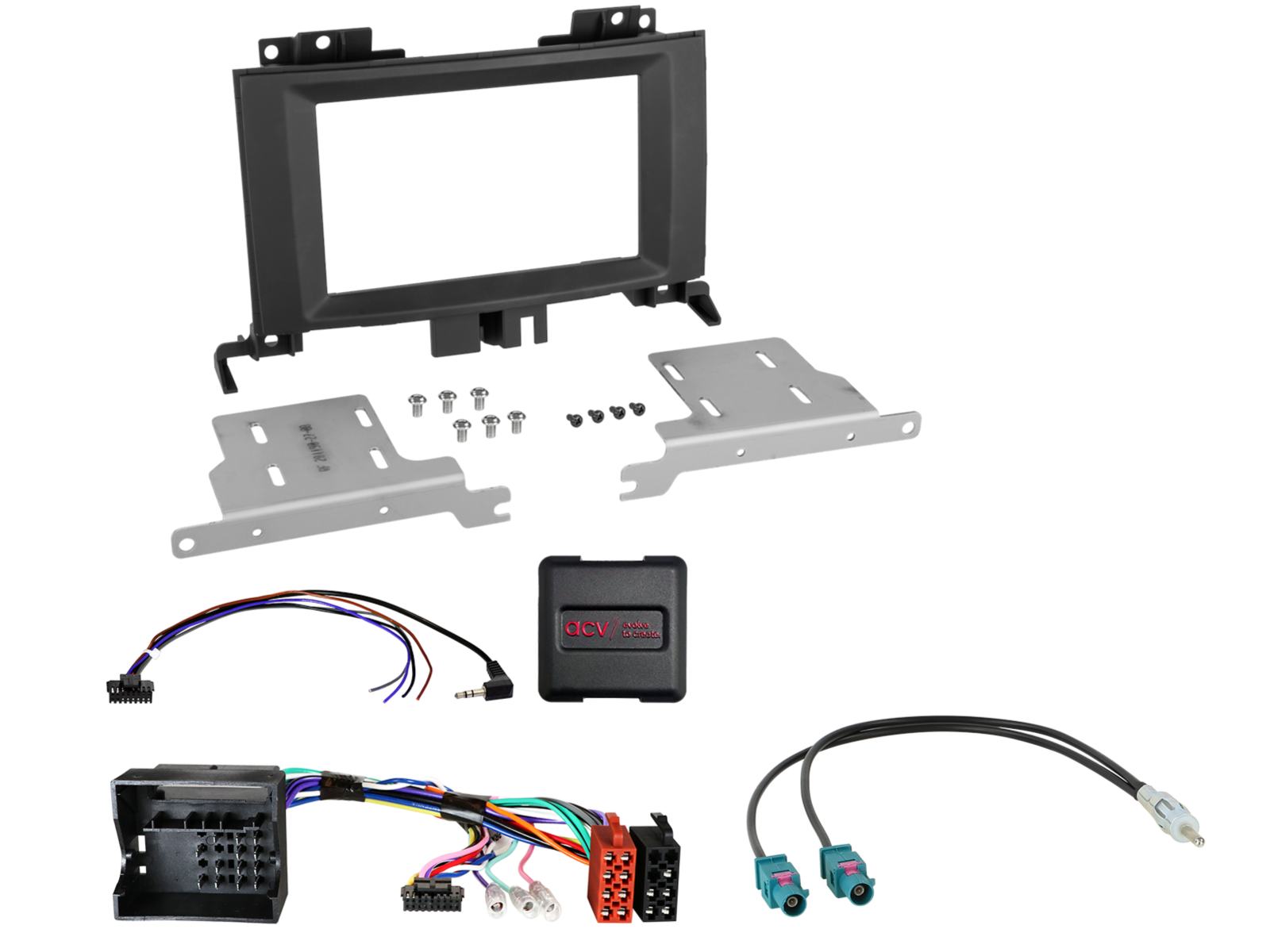

Toimitussisältö:
2-DIN-asennussarja Mercedes Sprinter (W906) / VW Crafter – tuote: 381190-27-3
Ohjauspyörän kaukosäädinadapteri (SWC) Mercedes-ajoneuvoihin / Smart (40-pinninen Quadlock, yleisliitäntäkaapeli) – tuote: 42xmc001-0
Antenniadapteri Fakra (uros, 2x) - DIN (uros) – tuote: 1524-19-0
Yhteensopivuus:
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018
VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016
Toimitussisältö:
2-DIN-asennussarja Mercedes Sprinter (W906) / VW Crafter – tuote: 381190-27-3
Ohjauspyörän kaukosäädinadapteri (SWC) Mercedes-ajoneuvoihin / Smart (40-pinninen Quadlock, yleisliitäntäkaapeli) – tuote: 42xmc001-0
Antenniadapteri Fakra (uros, 2x) - DIN (uros) – tuote: 1524-19-0
Note:
CAN Bus
connector: 40 Pin Quadlock Mercedes
connector: OEM SWC 3,5mm Jack / loose wire
connector: OEM antenna Fakra(m)(2x) DIN(m)
vehicles Mercedes with 2-DIN Audio 20 OEM HU
vehicles Mercedes with 2-DIN Audio 50 APS Comand NTG2 / NTG2.5 OEM Sat Nav
vehicles Mercedes without open dash
vehicles Mercedes without 1-DIN OEM HU
vehicles with Audio 50 APS Comand NTG2 / NTG2.5 OEM Sat Nav:
clock adjustment not supported vehicles code to Audio 20 OEM HU if possible
vehicles VW with RCD3002 OEM HU
vehicles VW wiith RNS 4001 / RNS 5001 OEM Sat Nav
vehicles VW without constant power switch off
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Mercedes
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018
VW
VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016
Colour: black
Mounting cutout HU display: 172mm x 98,5mm
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
load capacity outputs: 250 mA max.
current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.
SWC
Scope of delivery:
2-DIN facia plate Mercedes Sprinter(W906)/VW Crafter item: 381190-27-3
SWC Mercedes vehicles/Smart 40Pin Quadlock Multilead bulk item: 42xmc001-0
Antenna adapter Fakra(m)(2x)DIN(m) bulk item: 1524-19-0
