ACV 621320-26-1 2-DIN Asennussarja MAN TGE/ VW Crafter/Grand California
EAN: 4026724340907
621320-26-1
MAN TGE/ VW Crafter1/2-DIN asennussarja
Yhteensopiva: VW Crafter II
Yhteensopiva:VW Grand California
Yhteensopiva: MAN TG
Lue lisää
1 kpl
300,99 €
Tuotekuvaus
Tekniset tiedot
Täydellinen 1-DIN / 2-DIN asennussarja MAN TGE/ VW Crafter/Grand California.

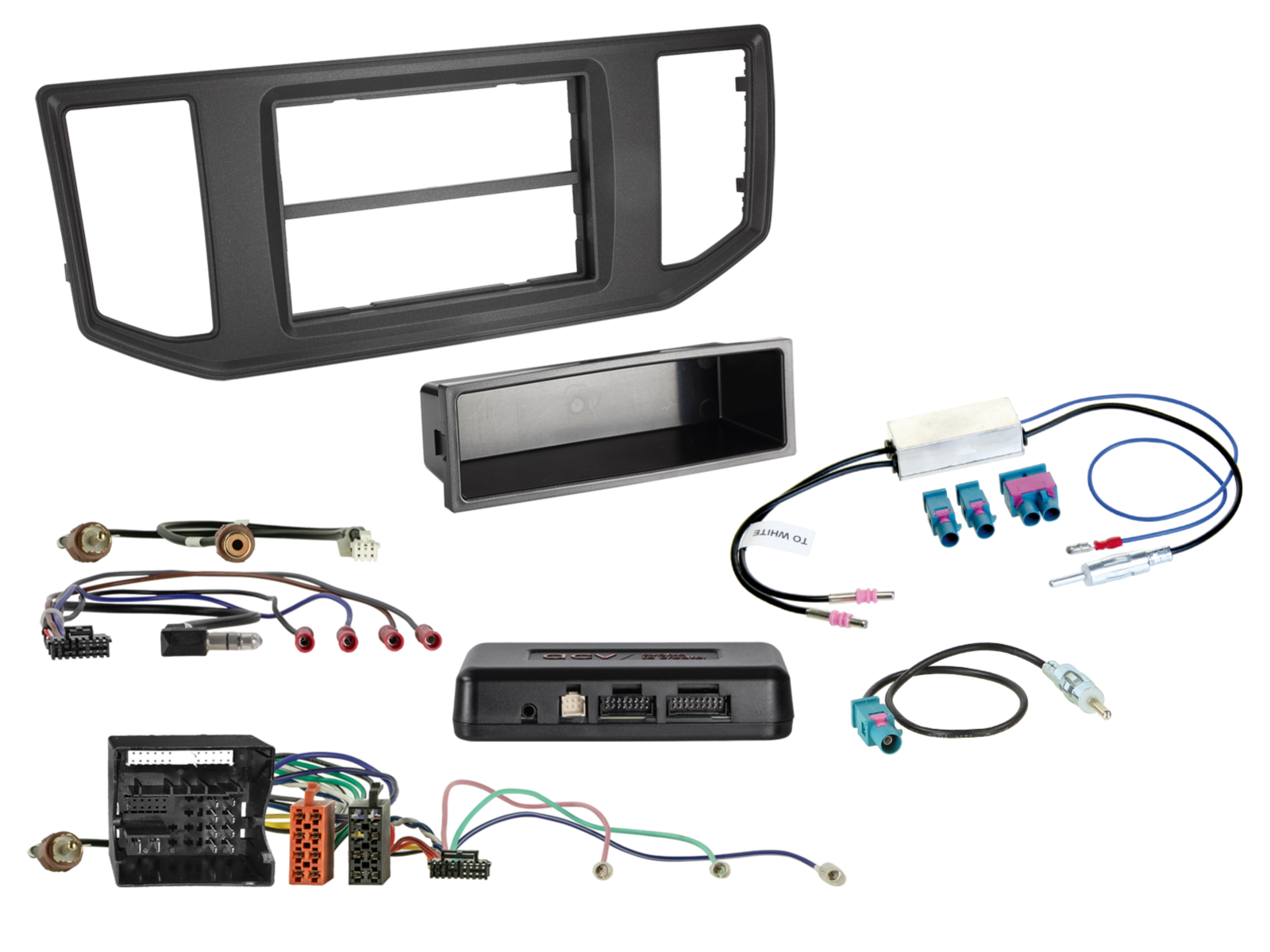

Asennussarja sisältää kaiken tarvittavan alkuperäisen soittimen vaihtamiseksi jälkiasennussoittimeen
Sarja sisältää:

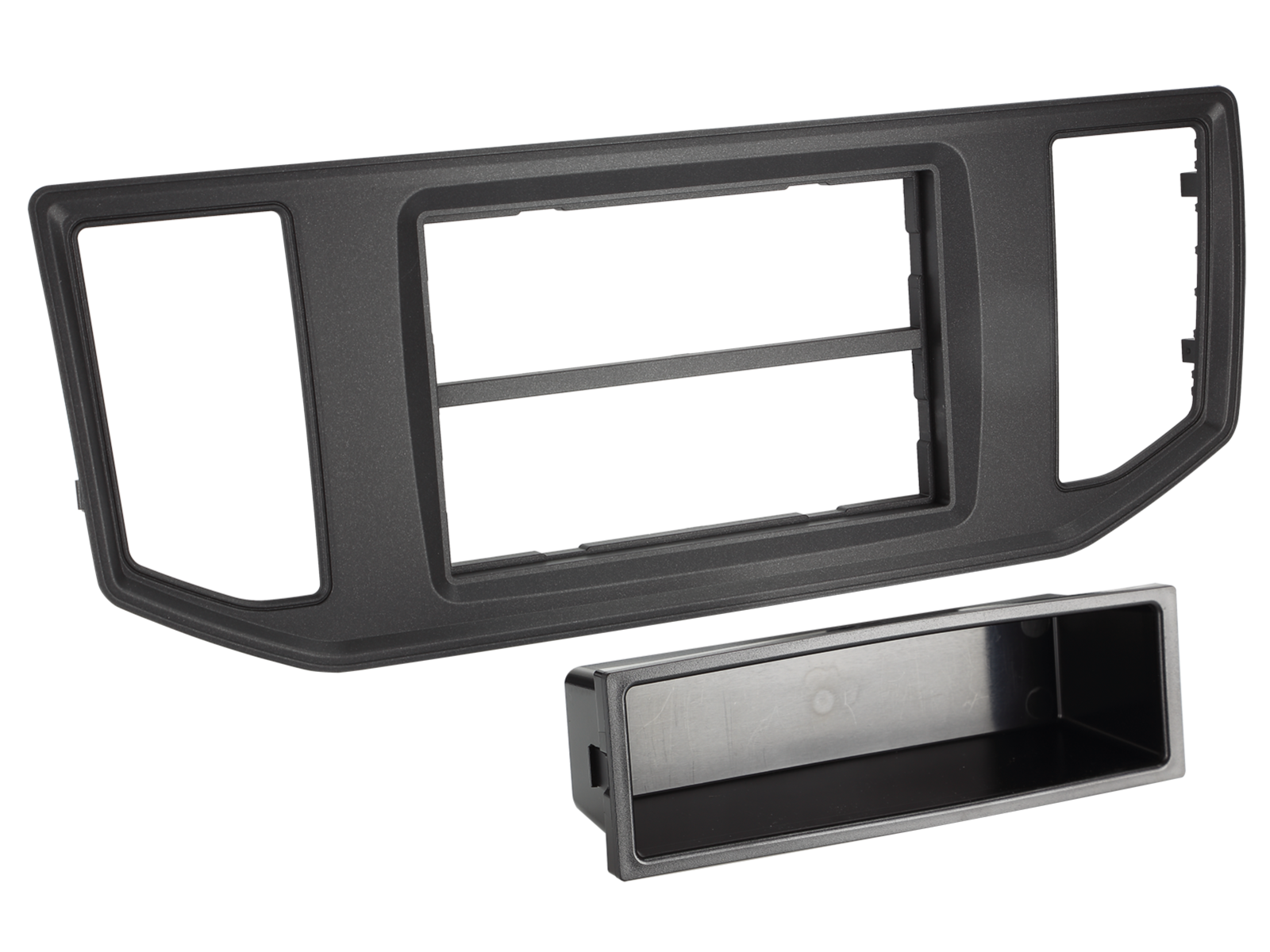

1/2-DIN kehys

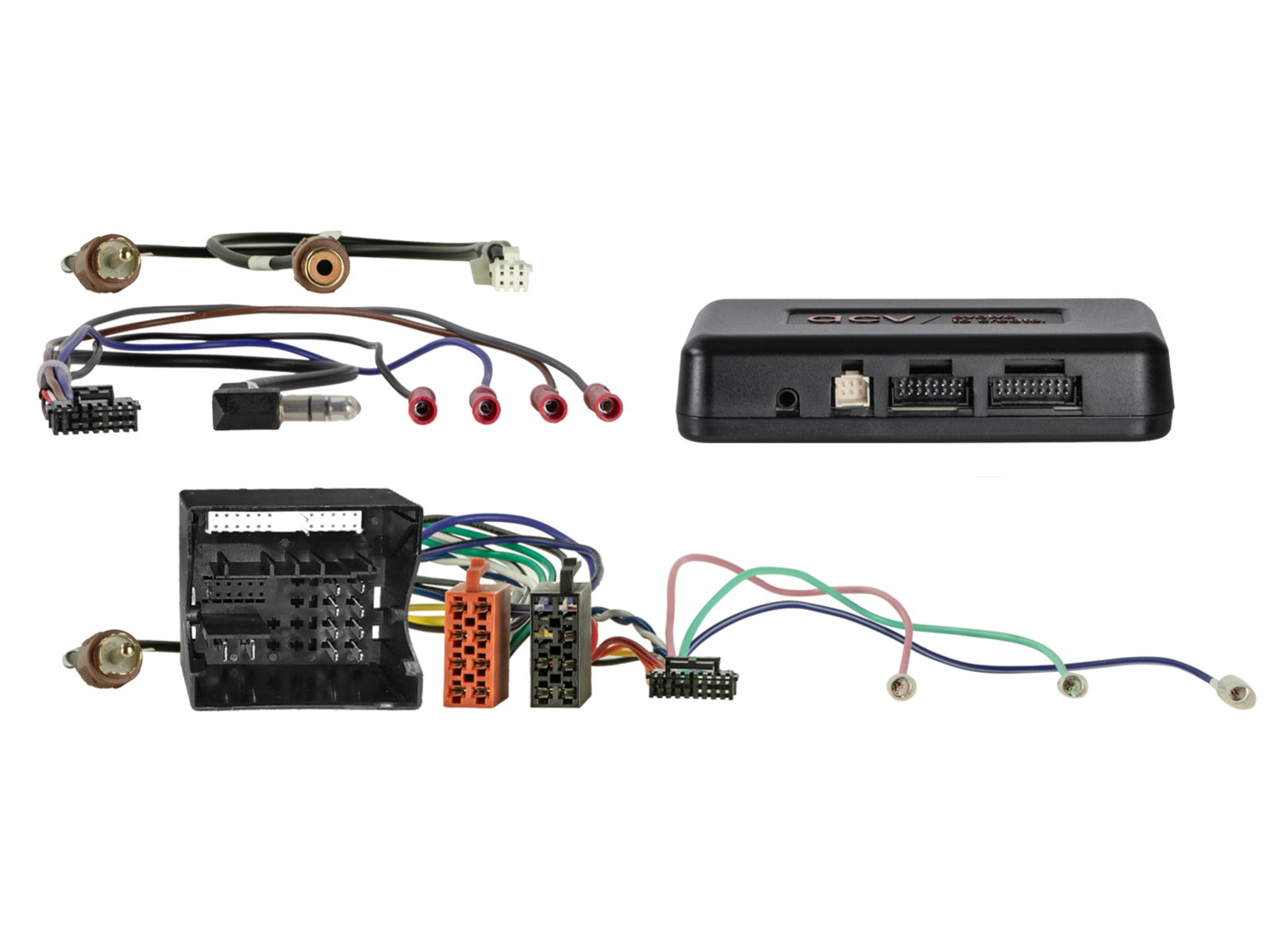

Rattisäädinadapteri
Yleismallinen soitinkohtainen johto (sopii Alpine, Beat, Clarion, JVC, Kenwood, LG, Nakamichi, Panasonic, Philips, Pioneer, Sony ja Zenec sekä Kiinasoittimet oppivalla kaukosäädöllä)

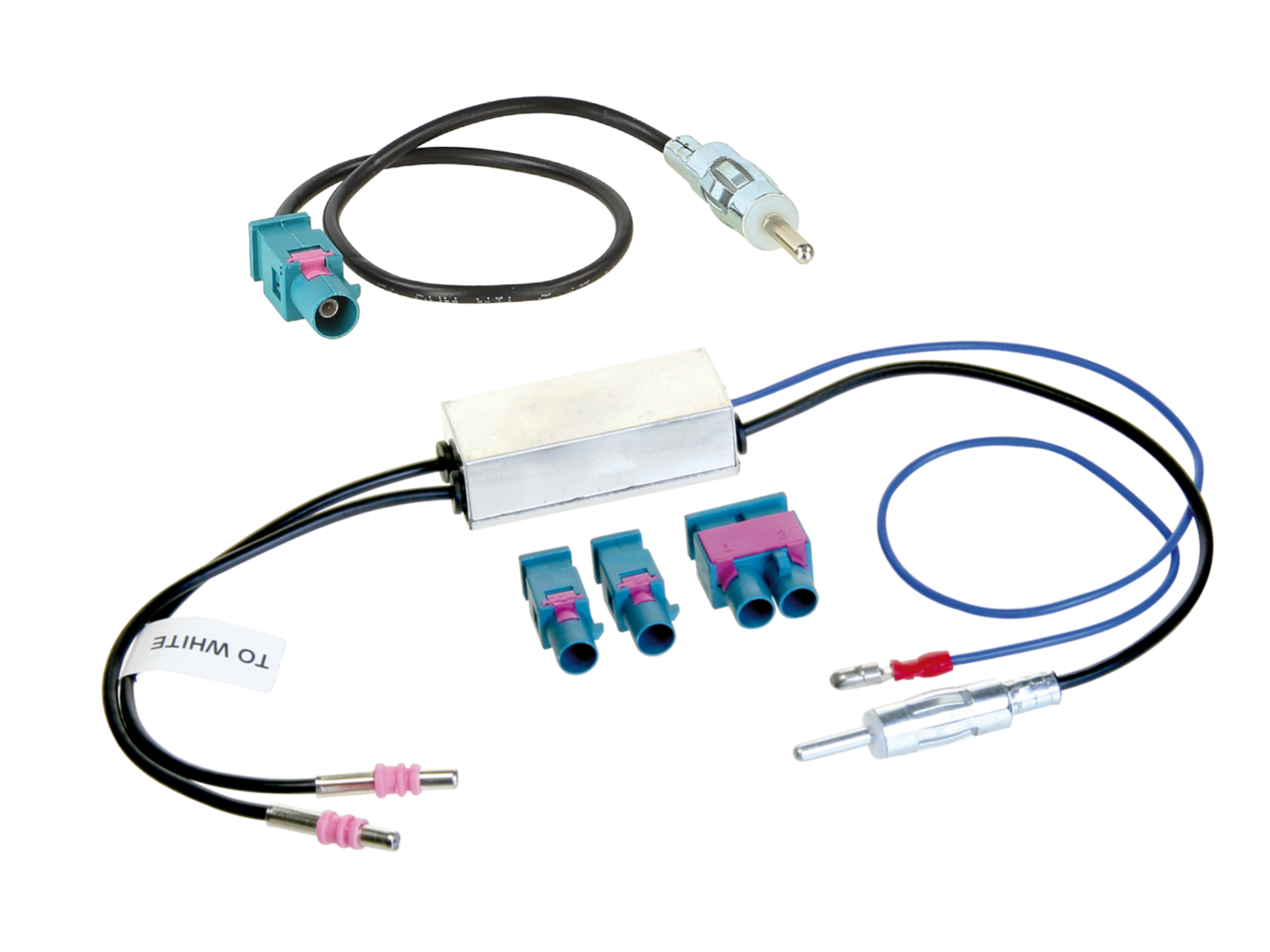

Antenniadapteri
CTMULTILEAD.2 -sovittimella saadaan ohjattua rattisäätimien signaali seuraaviin soitinmerkkeihin:
Alpine, Beat, Clarion, JVC, Kenwood, LG, Nakamichi, Panasonic, Philips, Pioneer, Sony ja Zenec
Yhteensopivuus:
MAN
MAN TGE 2017 - 2025*/**
VW
VW Crafter II (SY/SZ) 03/2017 - 2025*/***
VW Grand California (SY/SZ) 03/2019 - 2025*/***
*MIB-II OEM platform
**8″ Media Advanced OEM head unit
***8″ Media Plus OEM head unit / Composition Media OEM head unit
Asennussarja sisältää kaiken tarvittavan alkuperäisen soittimen vaihtamiseksi jälkiasennussoittimeen
Sarja sisältää:
1/2-DIN kehys
Rattisäädinadapteri
Yleismallinen soitinkohtainen johto (sopii Alpine, Beat, Clarion, JVC, Kenwood, LG, Nakamichi, Panasonic, Philips, Pioneer, Sony ja Zenec sekä Kiinasoittimet oppivalla kaukosäädöllä)
Antenniadapteri
CTMULTILEAD.2 -sovittimella saadaan ohjattua rattisäätimien signaali seuraaviin soitinmerkkeihin:
Alpine, Beat, Clarion, JVC, Kenwood, LG, Nakamichi, Panasonic, Philips, Pioneer, Sony ja Zenec
Yhteensopivuus:
MAN
MAN TGE 2017 - 2025*/**
VW
VW Crafter II (SY/SZ) 03/2017 - 2025*/***
VW Grand California (SY/SZ) 03/2019 - 2025*/***
*MIB-II OEM platform
**8″ Media Advanced OEM head unit
***8″ Media Plus OEM head unit / Composition Media OEM head unit
Vehicle application:
MAN
MAN TGE 2017 - 2025*/**
VW
VW Crafter II (SY/SZ) 03/2017 - 2025*/***
VW Grand California (SY/SZ) 03/2019 - 2025*/***
Note:
Can Bus
connector: 52 Pin Quadlock VAG
connector: OEM SWC 3,5mm Jack / loose wire
connector OEM antenna Fakra(f) DIN(m)
connector: OEM rear view camera RCA(m) ochre
blue: +12V antenna remote
before installation check antenna phantom supply voltage by measuring with OEM device:
vehicles with +12V antenna system item: 1524-70
vehicles with 8.5V antenna system item: 1524-01
vehicles with 8.5V antenna system optional:
Antenna adapter Fakra(m)(double)DIN(m) 8.5V item: 1524-29
vehicles with MIB-II systems
1-DIN HU
2-DIN HU with a maximum mounting depth of 55mm (2.1″)
2-DIN HU L-Body at the top
facia plate with 2-DIN cut out without centre bar
mounting cutout HU display: 182,5 mm x 113,5mm
activate and configure the rear view camera input in the retrofit HU
connection i-dapter:
purple/white: +12V reverse gear signal
RCA(m) ochre: rear view camera input retrofit HU
visualisation i-adapter settings retrofit HU rear view camera input
visualisation OPS retrofit HU rear view camera input
visualisation Klinatronik retrofit HU rear view camera input
vehicles with SWC i-dapter settings:
press and hold track up SWC buttom
alternatively with item: 43x-remote
vehicles without SWC i-dapter settings required accessories:
i-dapter accessories remote control interface settings: item: 43x-remote
camera image or i-dapter settings and visualisation not available:
connect additional GND signal to the RCA outer conductor of the camera and HU connection
vehicles with parking assistance front PDC front PDC is shown after ignition in display
exit the display via vehicle PDC switch
+12V reverse gear signal is switched off from 3 km/h
camera image or i-dapter settings and visualisation not available:
connect additional GND signal to the RCA outer conductor of the camera and HU connection
vehicles with E-Call:
E-Call function retention MAN/Seat/Skoda/VW 52 Pin Quadlock item: 1424-02
vehicles without amplified system
Not for vehicles:
with OEM amplified system
with open dash
without any OEM preparation SWC / speakers / HU
dip switch settings for the retrofit device manufacturer (look into the manual)
1-DIN HU
2-DIN HU with a maximum mounting depth of 55mm (2.1″)
2-DIN HU L-Body at the top
