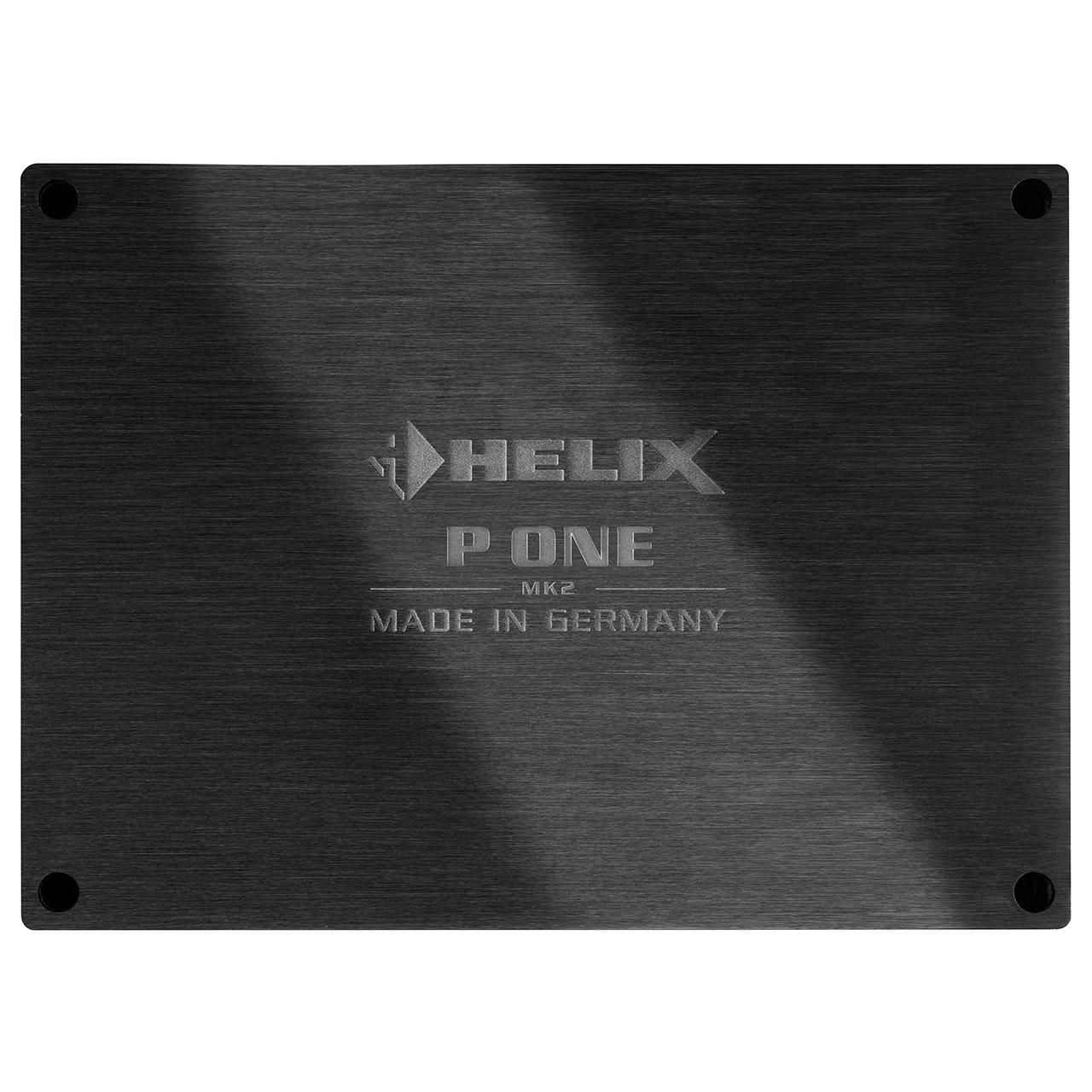

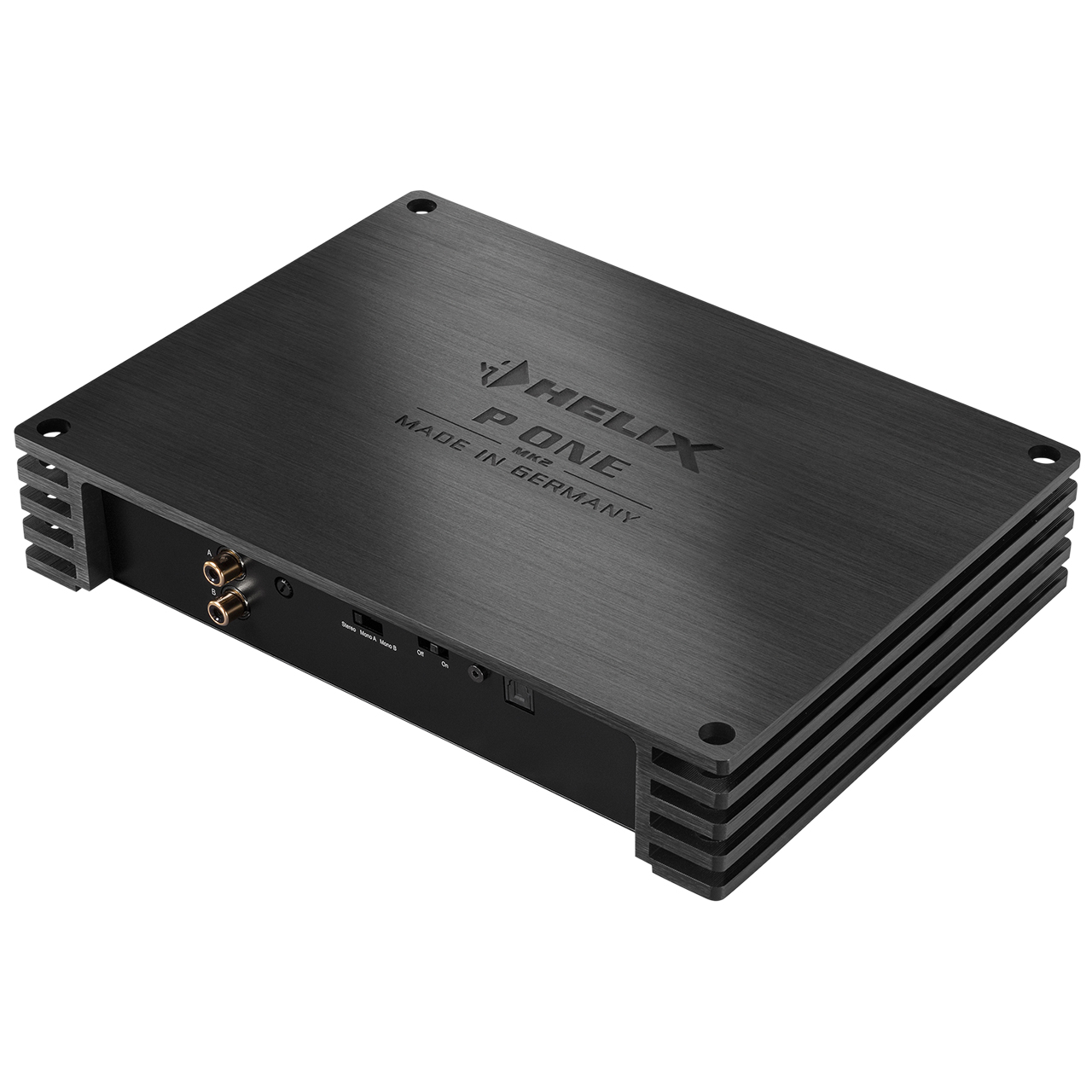

HELIX P ONE MK2
EAN: 4057204312664
P ONE MK2
Tehokas ja pienikokoinen High-Res Audio yhteensopiva- kokoäänialueen monovahvistin.
Lue lisää
1 049,00 €
Tuotekuvaus
Tekniset tiedot
Ohjekirjat
Uusi Helix P ONE MK2, tehokas ja pienikokoinen High End- kokoäänialueen monovahvistin. Todella pieni särö (0,01% THD) ja suuri 450 vaimennuskerroin. Hi-Res Audio luokitus pienellä signaali-kohinasuhteella mahdollistaa toiston jopa 40kHz saakka!
Power RMS ≤ 1% THD+N
- @ 4 Ohms 1 x 500 Watts
- @ 2 Ohms 1 x 880 Watts
- @ 1 Ohm 1 x 1,500 Watts
- bridged @ 4 Ohms -
- bridged @ 2 Ohms -
Max. output power per channel* Up to 1.800 Watts RMS @ 1 Ohms
Amplifier technology Class D

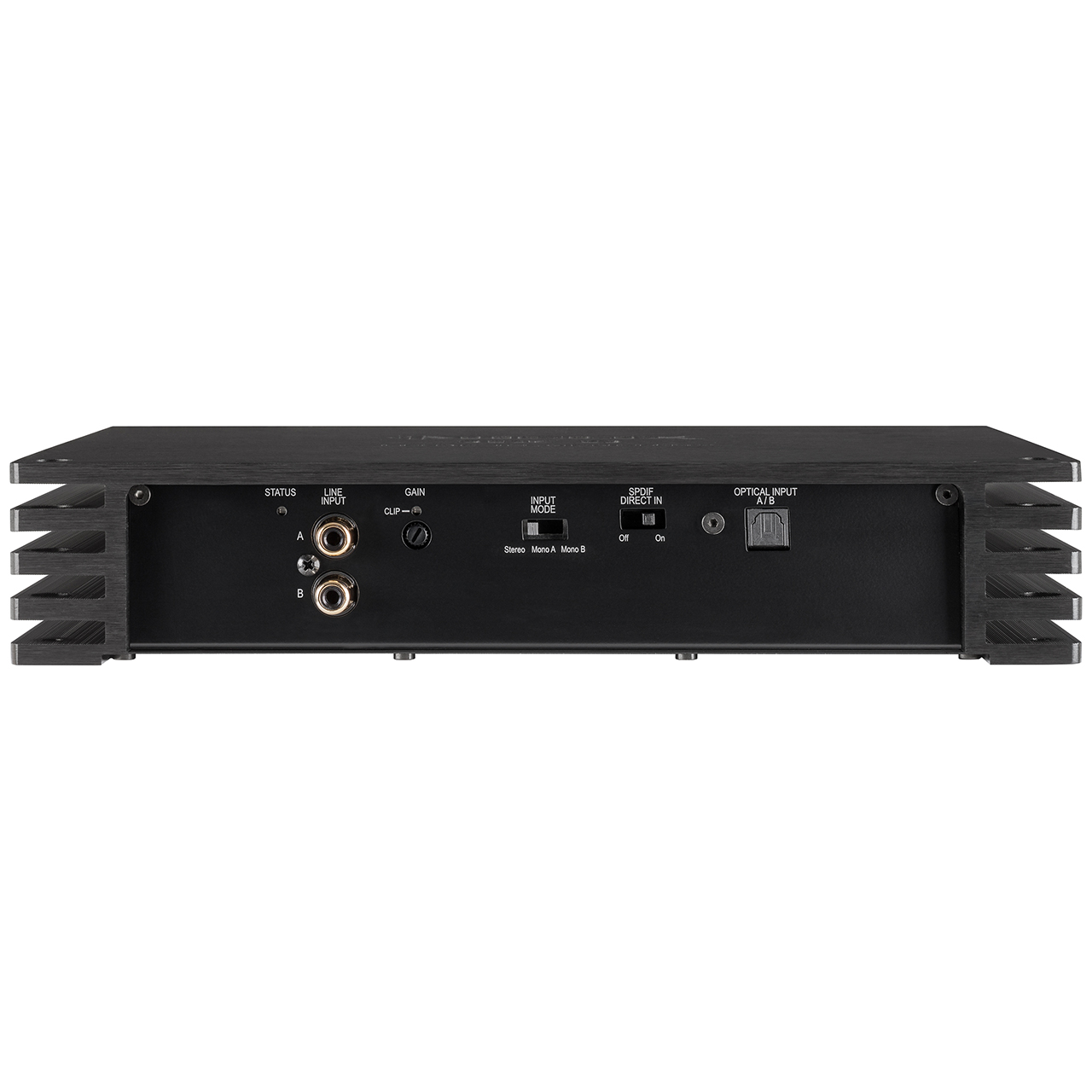

Inputs 2 x RCA / Cinch
1 x Remote In
1 x Optical SPDIF (28 - 96 kHz)
Input sensitivity RCA / Cinch 0.5 - 8 Volts
Input impedance RCA / Cinch 20 kOhms
Input impedance highlevel -

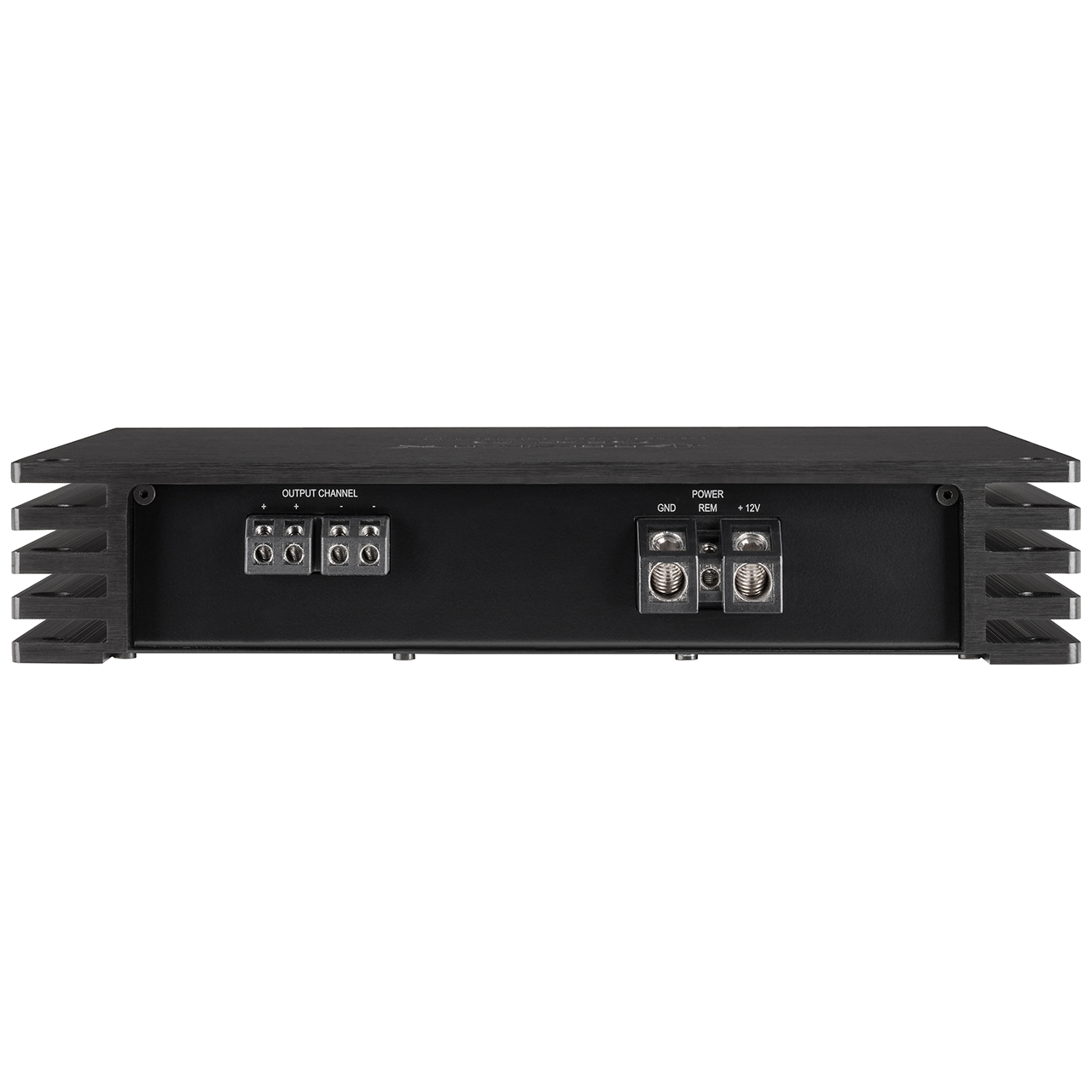

Outputs 1 x Speaker output
Output voltage RCA / Cinch -
Signal converter for digital input BurrBrown 32 Bit DA converter
Frequency response 21 Hz - 40,000 Hz
Bass boost -
Highpass -
Lowpass -
Bandpass -
Subsonic 21 Hz
Phase -
Slope high- / lowpass -
Slope subsonic / lowpass Butterworth 48 dB/Oct.
Signal-to-noise ratio digital input 110 dB (A-weighted)
Signal-to-noise ratio analog input 110 dB (A-weighted)
Distortion (THD) 0.01 %
Damping factor 450
Operating voltage 10.5 - 17 Volts (max. 5 sec. down to 6 Volts)
Idle current 1500 mA
Fuse 4 x 30 A LP-Mini-fuse (APS)
Power rating DC 12 V ⎓ 160 A max.
Additional features Input mode switch, SPDIF Direct In switch, Start-Stop capability
Dimensions (H x W x D) 50 x 260 x 190 mm /
1.97 x 10.24 x 7.48”
- @ 4 Ohms 1 x 500 Watts
- @ 2 Ohms 1 x 880 Watts
- @ 1 Ohm 1 x 1,500 Watts
- bridged @ 4 Ohms -
- bridged @ 2 Ohms -
Max. output power per channel* Up to 1.800 Watts RMS @ 1 Ohms
Amplifier technology Class D
Inputs 2 x RCA / Cinch
1 x Remote In
1 x Optical SPDIF (28 - 96 kHz)
Input sensitivity RCA / Cinch 0.5 - 8 Volts
Input impedance RCA / Cinch 20 kOhms
Input impedance highlevel -
Outputs 1 x Speaker output
Output voltage RCA / Cinch -
Signal converter for digital input BurrBrown 32 Bit DA converter
Frequency response 21 Hz - 40,000 Hz
Bass boost -
Highpass -
Lowpass -
Bandpass -
Subsonic 21 Hz
Phase -
Slope high- / lowpass -
Slope subsonic / lowpass Butterworth 48 dB/Oct.
Signal-to-noise ratio digital input 110 dB (A-weighted)
Signal-to-noise ratio analog input 110 dB (A-weighted)
Distortion (THD) 0.01 %
Damping factor 450
Operating voltage 10.5 - 17 Volts (max. 5 sec. down to 6 Volts)
Idle current 1500 mA
Fuse 4 x 30 A LP-Mini-fuse (APS)
Power rating DC 12 V ⎓ 160 A max.
Additional features Input mode switch, SPDIF Direct In switch, Start-Stop capability
Dimensions (H x W x D) 50 x 260 x 190 mm /
1.97 x 10.24 x 7.48”
