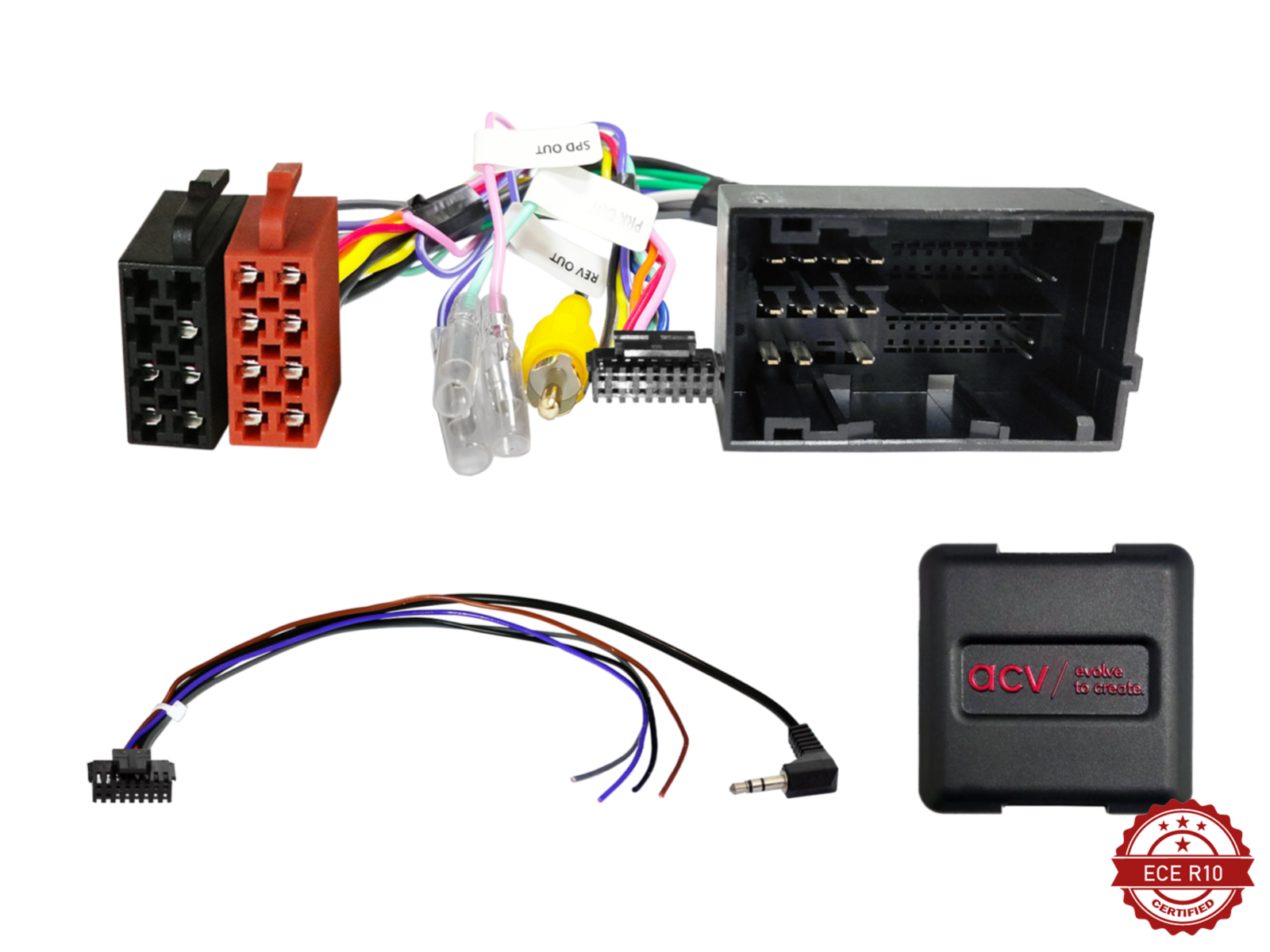

ACV 42xar005-0 rattiohjain-adapteri Alfa/Citroen/Fiat/Opel/Peugeot 52Pin - Multilead
EAN: 4026724344981
42xar005-0
Alkuperäinen rattikaukosäädin toimimaan uuden autoradiosi kanssa
Alfa 4C / Alfa Romeo Giuletta
Alfa Romeo MiTo
Lue lisää
1 kpl
79,00 €
Tuotekuvaus
Tekniset tiedot
Tämän adapterin avulla saat autosi alkuperäisen rattikaukosäätimen toimimaan uuden autoradiosi kanssa.
Mukana tulee universaali MULTILEAD-johto joka on mahdollista saada mukana tulevan ohjeen kera toimimaan seuraavien eri soitinmerkkien kanssa jossa on kaukosäädinvalmius.
Yhteensopivuus:
Alfa 4C (960) 01/2014 - 08/2018*
Alfa Romeo Giuletta (940) 10/2013 - 04/2016
Alfa Romeo Giuletta (940) 04/2016 - 12/2021*
Alfa Romeo MiTo (955) 12/2013 - 08/2016
Alfa Romeo MiTo (955) 08/2016 - 08/2018
*ajoneuvot, joissa on Continentalin kosketusnäytöllinen alkuperäinen soitin (OEM HU)
Mukana tulee universaali MULTILEAD-johto joka on mahdollista saada mukana tulevan ohjeen kera toimimaan seuraavien eri soitinmerkkien kanssa jossa on kaukosäädinvalmius.
Yhteensopivuus:
Alfa 4C (960) 01/2014 - 08/2018*
Alfa Romeo Giuletta (940) 10/2013 - 04/2016
Alfa Romeo Giuletta (940) 04/2016 - 12/2021*
Alfa Romeo MiTo (955) 12/2013 - 08/2016
Alfa Romeo MiTo (955) 08/2016 - 08/2018
*ajoneuvot, joissa on Continentalin kosketusnäytöllinen alkuperäinen soitin (OEM HU)
Note:
CAN Bus
connector: 52 Pin Fiat
connector: OEM SWC 3,5mm Jack / loose wire
connector: OEM rear view camera RCA(m) yellow rear viev camera input
date/time settings not supported
vehicle settings not supported
vehicles with OEM rear view camera OEM connector:
red: Pin 31 Video+
white: Pin 32 Video -
black: Pin 33 shield
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Alfa 4C (960) 01/2014 - 08/2018*
Alfa Romeo Giuletta (940) 10/2013 - 04/2016
Alfa Romeo Giuletta (940) 04/2016 - 12/2021*
Alfa Romeo MiTo (955) 12/2013 - 08/2016
Alfa Romeo MiTo (955) 08/2016 - 08/2018
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
load capacity outputs: 250 mA max.
current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.
SWC
*vehicles with Continental touch screen OEM HU
CAN Bus
connector: 52 Pin Fiat
connector: OEM SWC 3,5mm Jack / loose wire
connector: OEM rear view camera RCA(m) yellow rear viev camera input
date/time settings not supported
vehicle settings not supported
vehicles with OEM rear view camera OEM connector:
red: Pin 31 Video+
white: Pin 32 Video -
black: Pin 33 shield
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Alfa 4C (960) 01/2014 - 08/2018*
Alfa Romeo Giuletta (940) 10/2013 - 04/2016
Alfa Romeo Giuletta (940) 04/2016 - 12/2021*
Alfa Romeo MiTo (955) 12/2013 - 08/2016
Alfa Romeo MiTo (955) 08/2016 - 08/2018
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
load capacity outputs: 250 mA max.
current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.
SWC
*vehicles with Continental touch screen OEM HU
